A professional fan coil unit manufacture in China.
| Place of Origin: | China |
|---|---|
| Brand Name: | MECO |
| Certification: | CE |
| Model Number: | MFP-WA-B |
| Minimum Order Quantity: | 10 unidades |
|---|---|
| Price: | por confirmar |
| Packaging Details: | por caja |
| Delivery Time: | 7-15 días |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 unidades por mes |
| Marca: | MECO | Volumen Del Aire: | 340~2380CMH |
|---|---|---|---|
| Tipo: | Fan Coil | Motor: | CA O CC |
| OEM: | Disponible Con Su Logo Propio | Voltaje: | 110v/220v |
| Frecuencia: | 50Hz O 60Hz | Control: | Termostato Opcional |
| Opcional: | La Bomba Incorporada / Válvula / Modbus | Nivel De Ruido: | ≤ 52 DB(A) |
| Entrada/salida Agua Tubería: | DN 20 | Sistema: | 2 Tuberías / 4 Tuberías |
| Aplicación: | Habitación, Oficina, Hospital, Restaurante, Escuela, Etc | ||
| High Light: | 110v Chilled Water Fan Coil Unit,110v Duct Type Fan Coil Unit,220v Duct Type Fan Coil Unit |
||

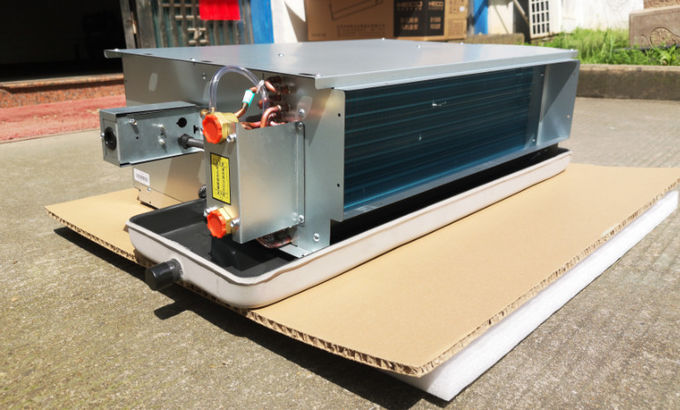

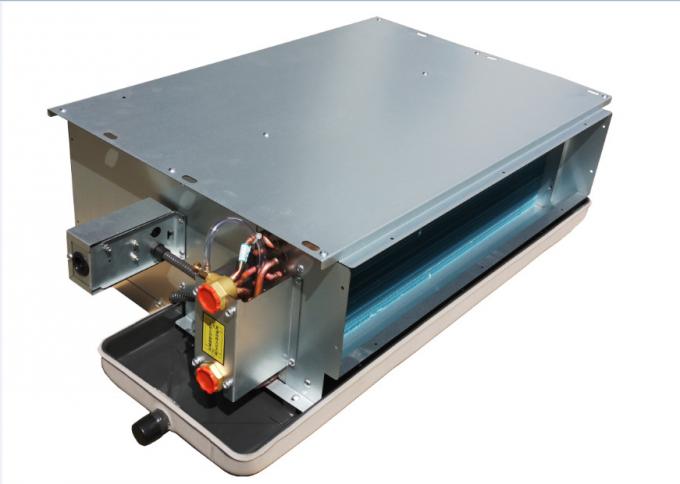

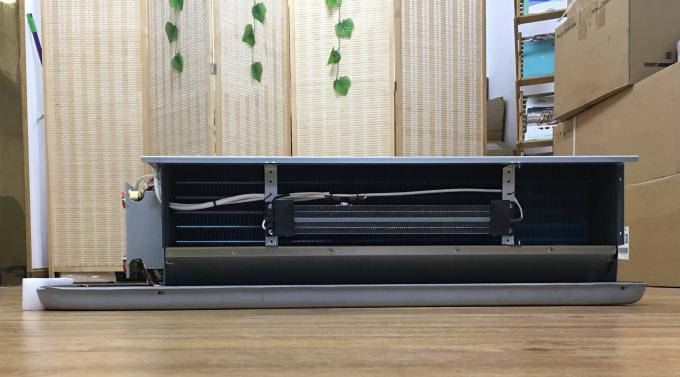

Features the patented design - MECO brand
✅ with AC or DC motor
✅ Static pressure is 12/30/50 Pa
✅ Optional electric heating
✅ with the 2-pipe / 4-pipe system
✅ with Nylon filter and air plenum
|
|||||||||||||||||||||||||
| PERFORMANCE OF DUCTED TYPE FAN COIL(2 TUBE, B style) | |||||||||||||||||||||||||
| model(2 tube system) | MFP-34 WA-B |
MFP- 51 WA-B |
MFP- 68 WA-B |
MFP- 85 WA-B |
MFP- 102 WA-B |
MFP- 136 WA-B |
MFP- 170 |
MFP- 204 WA-B |
MFP- 238 WA-B |
||||||||||||||||
| power supply | 220V,50Hz,1Ph | ||||||||||||||||||||||||
| air volume | H | m3/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | ||||||||||||||
| M | 270 | 380 | 515 | 660 | 765 | 1040 | 1280 | 1550 | 1800 | ||||||||||||||||
| L | 190 | 260 | 340 | 430 | 530 | 710 | 860 | 1050 | 1280 | ||||||||||||||||
| static pressure | Pa | 12 (30,50) |
12 (30,50) |
12 (30,50) |
12 (30,50) |
12 (30,50) |
12 (30,50) |
12 (30,50) |
12 (30,50) |
12 (30,50) |
|||||||||||||||
| cooling capacity | TH | H | W | 2150 | 3200 | 4000 | 5000 | 5800 | 8000 | 9500 | 11300 | 12800 | |||||||||||||
| BTU/h | 7335 | 10918 | 13648 | 17060 | 19789 | 27296 | 32414 | 38555 | 43673 | ||||||||||||||||
| SH | W | 1530 | 2230 | 2850 | 3530 | 4230 | 5790 | 6850 | 8110 | 9140 | |||||||||||||||
| BTU/h | 5220 | 7608 | 9724 | 12044 | 14432 | 19755 | 23372 | 27671 | 31185 | ||||||||||||||||
| TH | M | W | 1710 | 2510 | 3305 | 4090 | 4790 | 6660 | 7695 | 9153 | 10000 | ||||||||||||||
| SH | W | 1210 | 1715 | 2320 | 2890 | 3345 | 4715 | 5470 | 6340 | 7165 | |||||||||||||||
| TH | L | W | 1355 | 2000 | 2470 | 3000 | 3520 | 5150 | 5870 | 6820 | 7850 | ||||||||||||||
| SH | W | 980 | 1420 | 1735 | 2020 | 2500 | 3530 | 4075 | 4950 | 5580 | |||||||||||||||
| heating capacity | H | W | 3350 | 5050 | 6250 | 7900 | 9150 | 12500 | 15100 | 17800 | 20100 | ||||||||||||||
| M | W | 2650 | 3900 | 5100 | 6350 | 7400 | 10300 | 11950 | 14200 | 15500 | |||||||||||||||
| L | W | 2100 | 3100 | 3850 | 4650 | 5450 | 8000 | 9100 | 10550 | 12150 | |||||||||||||||
| noise | high speed | 12Pa | dB(A) | 37 | 39 | 41 | 43 | 45 | 47 | 48 | 50 | 52 | |||||||||||||
| 30Pa | 39 | 41 | 43 | 45 | 48 | 49 | 50 | 52 | 54 | ||||||||||||||||
| 50Pa | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | 56 | ||||||||||||||||
| power input | 12Pa | W | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 | 228 | ||||||||||||||
| 30Pa | 44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | 253 | ||||||||||||||||
| 50Pa | 49 | 66 | 84 | 100 | 118 | 174 | 210 | 250 | 300 | ||||||||||||||||
| waterflow volume | m3/h | 0.37 | 0.55 | 0.69 | 0.86 | 0.99 | 1.37 | 1.63 | 1.94 | 2.19 | |||||||||||||||
| water pressure dropping | kPa | 16 | 22 | 18 | 29 | 22 | 27 | 35 | 37 | 38 | |||||||||||||||
| dimension of water(in & out)connection pipe | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ||||||||||||||||
| ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | ZG3/4" | |||||||||||||||||
| coil | type | high efficient copper pipe to wear Hydrophilic aluminum coil | |||||||||||||||||||||||
| dimension of water drain pipe | mm | ZG3/4" | |||||||||||||||||||||||
| dimension | without air return box | mm(L*W*H) | 624× 465× 235 |
814× 465× 235 |
864× 465× 235 |
944× 465× 235 |
1044× 465× 235 |
1424× 465× 235 |
1474× 465× 235 |
1674× 465× 235 |
1824× 465× 235 |
||||||||||||||
| air return from side | 624× 510× 235 |
814× 510× 235 |
864× 510× 235 |
944× 510× 235 |
1044× 510× 235 |
1424× 510× 235 |
1474× 510× 235 |
1674× 510× 235 |
1824× 510× 235 |
||||||||||||||||
| air return from bottom | 624× 492× 252 |
814× 492× 252 |
864× 492× 252 |
944× 492× 252 |
1044× 492× 252 |
1424× 492× 252 |
1474× 492× 252 |
1674× 492× 252 |
1824× 492× 252 |
||||||||||||||||
| weight | kg | 11 | 13 | 14 | 16 | 17 | 26 | 29 | 32 | 34 | |||||||||||||||
