• Products Details
Detailed Product Description
Type: Fan Coil Unit,Ceiling Cassette Fan Coil Operating Voltage: 230 VAC
Certification: CE Cooling Capacity: 1.8-12.6KW
Application: Commercial Function: Air Conditioner Terminal Unit
Color: White Product Name: Ceiling Mounted Cassette Type Chilled Water FCU Fan Coil Unit
High Light:

1600cfm fcu cassette type


low noise fcu cassette type


low noise cassette fcu


Unità adatta per installazione su controsoffitti

Deflettori mandata aria nelle 4 direzioni, orientabili

Gruppo ventilante costituito da 1 ventilatore centrifugo a singola aspirazione. Ventola in ABS, appositamente progettata per questa applicazione, direttamente accoppiata al motore elettrico.

Montaggio su supporti elastici ed ammortizzatori

Ventilatore a 3 velocità


Pompa condensa completa di galleggiante e valvola di non ritorno

Filtro aria ad alta efficienza, facilmente estraibile e lavabile

Predisposizione 1 Presa aria esterna e 2 Mandate aria trattata verso ambienti attigui

Regolazione tramite comando remoto a filo o telecomando (accessori)


Chilled water 4 way ceiling cassette type fan coil unit
Air volume=200CFM-1400CFM(340m³/h-2380m³/h)
cooling capacity:1.8Kw--12.6Kw(0.5RT--3.5RT)
Easy to be installed. Thin design unit which can be installed in a limit ceiling, the thinnest is 290mm
EC motor is standard, DC motor is optional , high efficiency and energy saving.
"C"type heat exchanger, blue fin.
Compact design, suitable for strict space installation.
Driven by a three-speed motor, low noise.
Turbo centrifugal fan. The efficiency of airflow rate,heavy wind volume and low noise is excellent. Because the ventilator wheel is processed to sine strip seam.
Wide angel airflow: 60 degrees from top to bottom. Adopting uniform size with a square, elegant streamline panel.
Luxury shape and ABS panel. Corner cover design makes installation and maintain maintenance.
The drip tray is complete with a drain pump for draining the condensate water.
Remote control.
Fresh air can be input from outdoor to better indoor air quality.
The water remain in the tray is easy to drained by manual.
High efficient copper pipe to wear Hydrophilic aluminum coil.
2 pipes and 2 rows type as standard. 4 pipe is optional.
Water valve inside is optional.
E-heater is optional
External drained pump is optional
Electrostatic dust sanitiser is optional
BMS system is optional

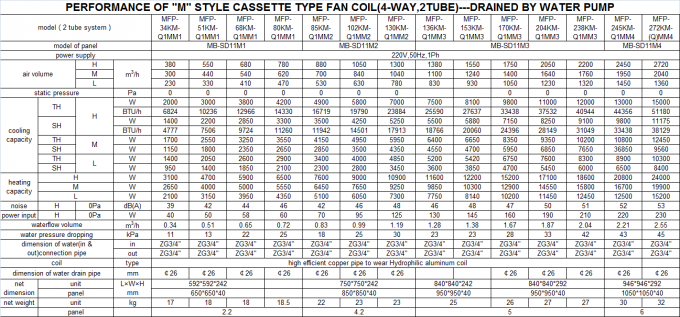

Low Noise 4 Way 1600cfm Fcu Cassette Type CE Passed 0
