|Place of Origin:||CHINA|
|Minimum Order Quantity:||50PCS|
|Price:||contact by e-mail|
|Packaging Details:||Standard export carton box|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10000pcs per month|
|Model Number:||MFP-68K1M4||Type:||One-way Cassette|
|Rated Cooling Capacity:||2.7KW||Rated Heating Capacity:||2.16KW|
|Air Volume:||680 M3/h||Size:||958 X 413 X 236|
hydronic fan coil unit,
cassette type fcu

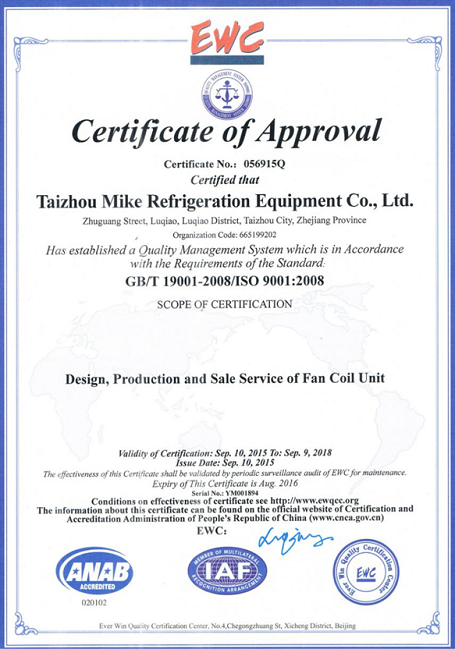

MECO’s one way blowing cassette fan coil unit is developed by long time producing and selling experience. The one-way blowing cassette fan coil unit have passed ISO 9001 and CE certificate. It can be installed in the side of ceiling.
Products specification of one-way cassette fan coil unit
|MODEL||AIR VOLUME||COOLING CAPACITY||HEATING CAPACITY|
Products Feature and details
1. Use thin design, the thickness of the unit only 235mm, which can make unit installed in a small space.
2. Controlled by remote controller and wire controller, very convenient. Auto swing, it can offer wide air flowing range. Height to 3.5m, air supply angle to 50.
3. Equipped with manual longitudinal guide air strip, which can adjust the distribution of air flow in all directions.
4.The one-way cassette fan coil unit use double shaft and fan, with high lift water drained pump (750mm), this structure which can make the unit running quiet.
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
All equipment wiring complies with CE requirementsReliability Features

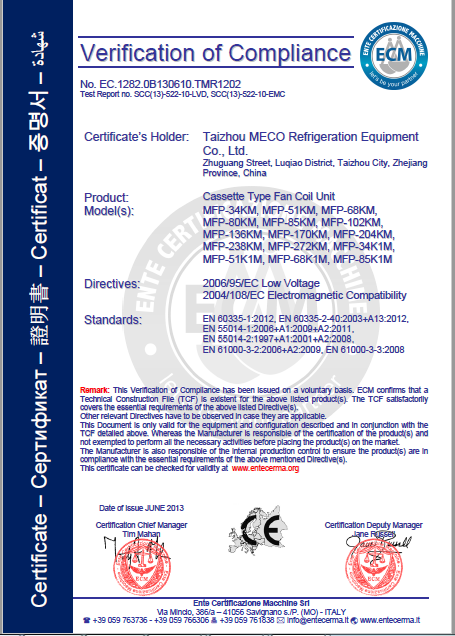

· Base units are CE certified for EU standards
· All units with auto-restart functions.
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned
18 months since delivery date.
supply 1% free parts with shipment.
|fan motor||P.C.B||reciever Board||sensor||
|fan motor capacitor||remote controller||wire controller|
|water level switch||fan||drain tray||swing motor||drain pipe||panel||filter||corner board of panel|
Field-Installed optional Accessories:

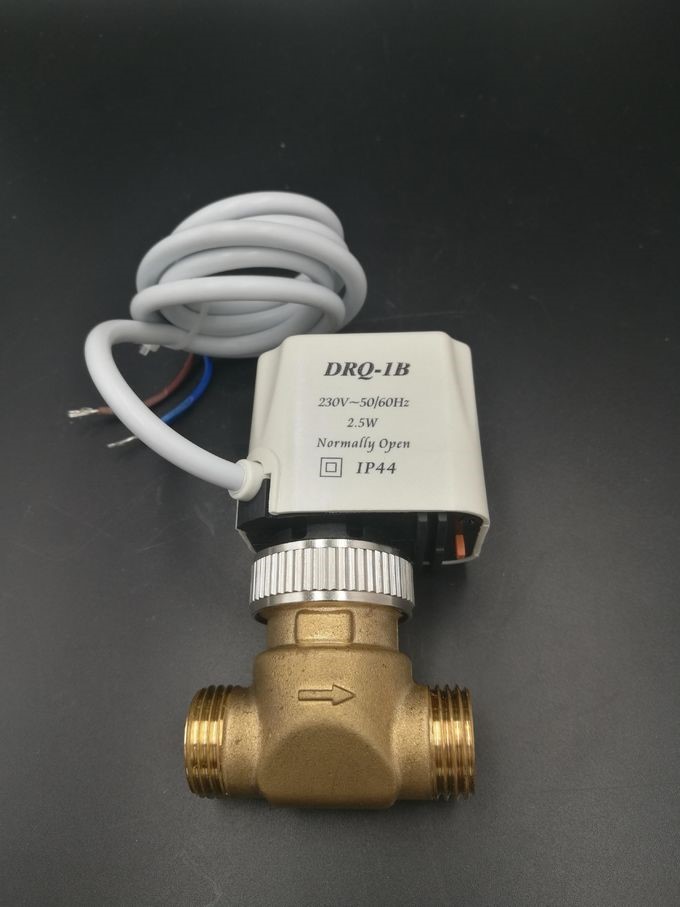

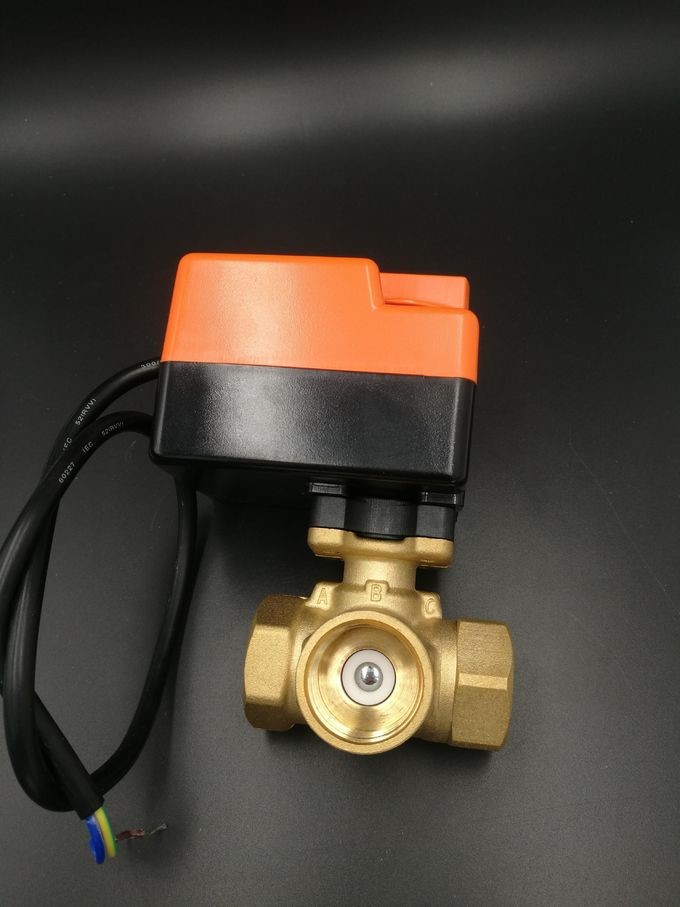

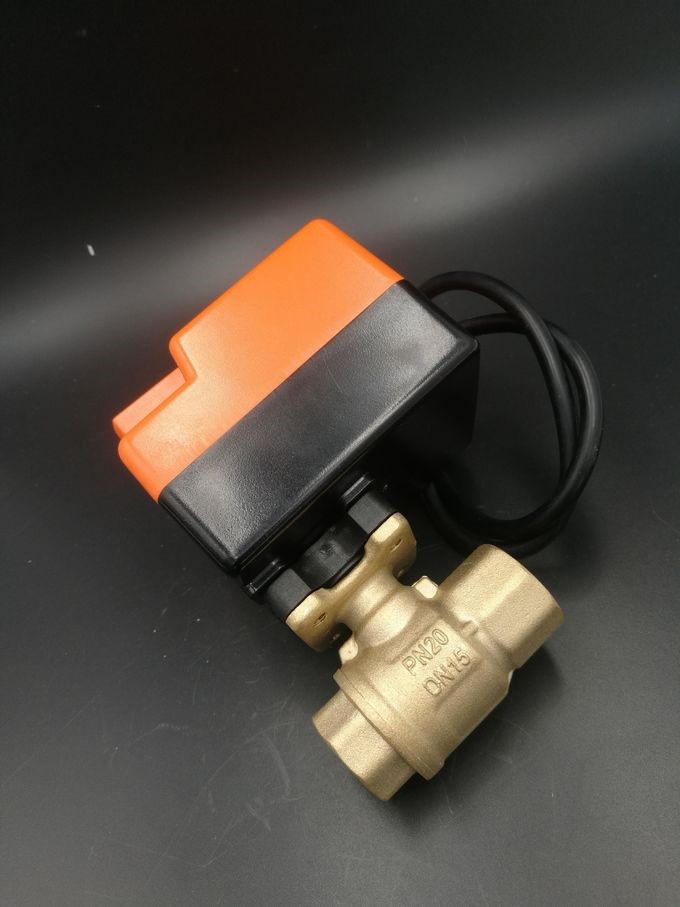

· 2 & 3 way valves and with the actuators

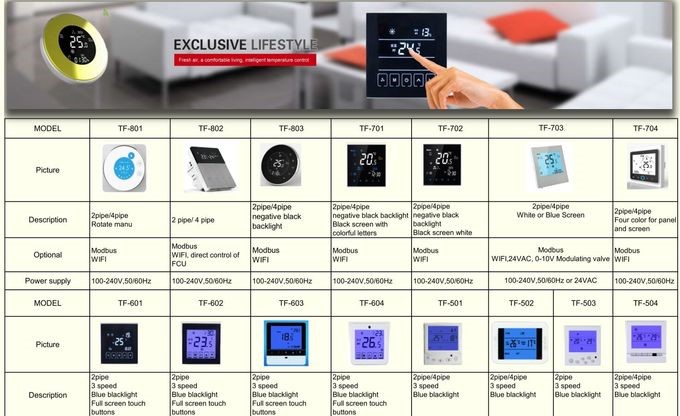

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
Q:Can you make OEM brand orders for your fan coil units?
A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang, TCL, AUX, CHIGO, LS,etc.
Q: How long is your warranty?
A: We offer 18 months warranty for our fan coil unit products. We offer 1% free repair parts and professional technical support.
Q: Our hotel wants to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your fan coil units?
A: Not yet now. But we can select the fan coil units for you based on your given selection request.
LEAVE US A MESSAGE
With reliable quality and outstanding performance, MECO products are successfully sold to more than 30 countries and regions including: Europe; South America; Middle east; Southeast Asia and Africa etc.
