  • Products Details
Detailed Product Description
Cooling Capacity: 1.95kw Heating Capacity: 1.95kw
Air Flow: 200CFM Motor Type: AC Motor
Display Type: Digital Display Water Pump: Build In Water Pump
Electrical Box: Outside/build In Optional Fresh Air Hole: Standard Available
Power Supply: 110/220V 1Ph 50/60Hz Certification: CE, ISO, Rohs
Modbus: Optional Auto Restart: Optional
Finger Protect: Finger Protect Grill Optional Drain Tray: Extra Bigger Drain Tray Optional
High Light:

hydronic fan coil unit

,

chilled water ceiling cassette fan coil unit

CE standard Hydronic cassette fan coil unit with build in water pump and digital display, 650mm water fan coil unit



1. Heat exchanger adopting Aluminum Foil/Inner Copper tube, high efficiency.
    MECO cassette Fan coil adopts high quality seamless copper tube and aluminum sinusoidal corrugated heat dissipator, after hydraumatic or mechanical expansion, fin and copper tube absolutely closed, playing a good heat exchange effect.


2. Beautiful shape, saving space cassette FCU
Appearance modelling line is fluent, tonal and decorous, airframe is delicate, beautiful and neat, can hide in the ceiling, perfect combination with space decoration, integrated, saving space.



3. Three micro-stereoscopic air supply from four sides,reasonable air distribution
The air flow is sent out from four sides, and even if it is embedded in the ceiling, it can be sent out in four directions.Send the comfortable air to every corner.



Specifications for hydronic four way cassette fan coil model MFP-34KM-MK1:



1. Air flow 200CFM,380CMH

2. Cooling capacity 1950W

3. Heating capacty 19500W

4. Two pipe/tube system

5. With build in water pump

6. Power supply 220V-1-50Hz

7.  Compact Panel size 650x650mm



  Cassette Type FCU Model No.
4 pipe system MFP-34KM4-MK1 220V-1-50Hz
Cooling Capacity
Testing item Capacity-W At Fan speed Air Volume CMH
Total Capacity 【w】 1950 High Speed 360
Sensible Capacity【w】 1350
Total Capacity 【w】 1650 Medium Speed 290
Sensible Capacity【w】 1150
Total Capacity 【w】 1350 Low Speed 220
Sensible Capacity【w】 950

Heating Capacity
Testing item Capacity-W At Fan speed Air Volume CMH
Total Capacity 【w】 1950 High Speed 360
Total Capacity 【w】 1700 Medium Speed 290
Total Capacity 【w】 1350 Low Speed 220

Entering air temperature Cooling Mode Entering air temperature2 Heating Mode
Dry ball Temp 【℃】 27.0 Dry ball Temp 【℃】 20
Wet ball Temp 【℃】 19.5
Inlet water temp 【℃】 7.0 Inlet water temp 【℃】 50
Outlet water temp 【℃】 12.0 Outlet water temp 【℃】 40

Item data Item2 Data2
Rated Power input 【 w】 40.0 Unit dimension L【mm】 592
waterflow volume 【m3/h】 0.34 Unit dimension W【mm】 592
water pressure dropping 【kPa】 11.0 Unit dimension H【mm】 242
Connection pipe Dia【Inch】 ZG3/4" Panel dimension L【mm】 650
Static pressure【Pa】 0.0 Panel dimension W【mm】 650
Water drain pipe Dia 【mm】 ¢26 Panel dimension H【mm】 40

Packing data
Unit dimension L【mm】 710 Panel dimension L【mm】 710
Unit dimension W【mm】 690 Panel dimension W【mm】 710
Unit dimension H【mm】 275 Panel dimension H【mm】 80
Loading QTY 40HQ/40GP/20GP 370/320/160 PCS
Operating limits Water inlet temperature: 5-80°C.
Room air temperature: 6-40°C.
Relative humidity: 15-75%.
Maximum exchanger pressure: 800 kPa (81,5 mc.a.).
Power supply voltage: 230 V ±10%.

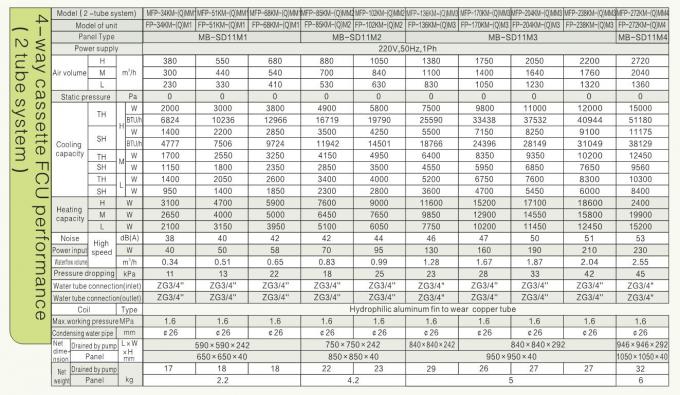

Full ranges of capacities we have for M style cassette fan coil unit 2 pipe systems:



MODEL Casstte fan coil unit 4 pipe system

air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM-Q1M 380 2000 3100 40
MFP-51KM-Q1M 550 3000 4700 50
MFP-68KM-Q1M 680 3800 5900 58
MFP-80KM-Q1M 780 4200 6500 60
MFP-85KM-Q1M 880 4900 7600 70
MFP-102KM-Q1M 1050 5800 9000 95
MFP-130KM-Q1M 1300 7000 10900 125
MFP-136KM-Q1M 1380 7500 11600 130
MFP-153KM-Q1M 1550 8100 12200 145
MFP-170KM-Q1M 1750 9800 15200 160
MFP-204KM-Q1M 2050 11000 17100 190
MFP-238KM-Q1M 2200 12000 18600 210
MFP-272KM-Q1M 2720 15000 24000 230

CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 0

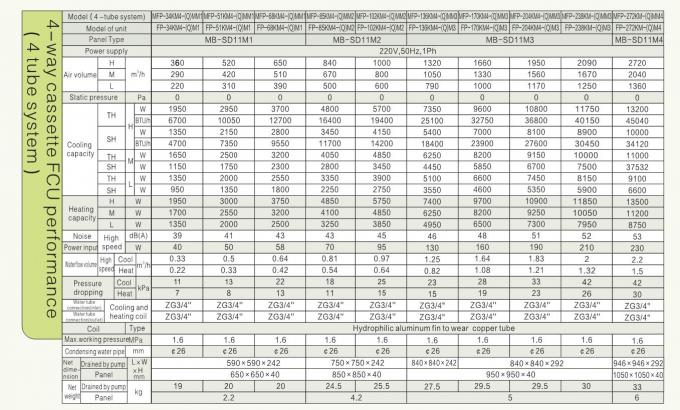

Full ranges of capacities we have for M style cassette fan coil unit 4 pipe systems:

MODEL Casstte fan coil unit 4 pipe system air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM4-Q1MM1 360 1950 1950 40
MFP-51KM4-Q1MM1 520 2950 3000 50
MFP-68KM4-Q1MM1 650 3700 3750 58
MFP-80KM4-Q1MM1 740 4100 4150 60
MFP-85KM4-Q1MM2 840 4800 4850 70
MFP-102KM4-Q1MM2 1000 5700 5750 95
MFP-130KM4-Q1MM2 1240 6850 6950 125
MFP-136KM4-Q1MM3 1320 7350 7400 130
MFP-153KM4-Q1MM3 1480 7940 7780 145
MFP-170KM4-Q1MM3 1660 9600 9700 160
MFP-204KM4-Q1MM3 1950 10800 10900 190
MFP-238KM4-Q1MM3 2090 11750 11850 210
MFP-272KM4-Q1MM4 2090 13200 13500 210

CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 1



Testing condition:

2-tube system 4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.


M style Cassette fan coil unit introduction

As we all know Hydronic cassette units are ideal for applications and modernizations with suspended ceilings. Ceiling cassette fan coil units make each served area an independent controlled temperature zone to suit diverse requirements. Such as hotels, offices, restaurant, shopping mall applications,etc.

MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.

After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit. The M style cassette fan coil unit is our core competitiveness which has high stability and comprehensive functions.




Performance Features for M style chilled water Cassette fan coil Units.

  • Fans are statically and dynamically balanced for quiet operation
  • 26 chilled water cooling models from 200-1600CFM to properly match job requirements
  • 4 different panel sizes for selection 650,850,950,1050.
  • 2 pipe or 4 pipe system both available.
  • AC motor and BLDC motor also available.



CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 2




Certifications for MECO cassette fan coil units:

CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 3 CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 4




Standard Warranty for all cassette fan coil units orders

  • 18 months since delivery date.
  • supply 1% free parts with shipment.
fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller wire controller drain pump water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Field-Installed optional Accessories:

  • 2 & 3 way valves and with the actuators
  • CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 5CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 6CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 7
  • Wall Mounted Mechanical or Digital Thermostat
  • Wall Mounted Digital Thermostat with Modbus function
  • Wall Mounted Digital Thermostat with WIFI control function
  • CE standard Hydronic cassette fan coil unit with build in water pump and digital display,  650mm water fan coil unit 8




FAQ.

Q:Can you  make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.



Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
