chilled water ceiling cassette fan coil unit,
cassette type fcu
CE certificated,Decorative 4-side air flowing fan coil unit, 500CFM, 2-tube system, low noise and DC motor
Meco company focus on the R&D and manufacturing of fan coil unit , we are doing OEM for more than 200 famous central air conditioner enterprises in China, now the company is the preferred of OEM manufacture for cassette units in China. At the same time, our products with Meco brand marks was sold successfully to more than 50 countries and regions , such as India, Iran, Bulgaria, Italy, Chile, Mexico, United States and so on.
Decorative 4-side air flowing fan coil unit characteristic
1. Customizable metal grille air inlet design, easy to fit with the decoration style.
2. 4-side air flowing, which can uniform temperature distribution in the room.
3. Condensate water drain pump is optional
4. All the key parts are easy to maintain from air inlet grille
5. Quiet running
6. Fresh air can be put in from outside
7. Electrostatic dust sanitizer is optional (drained by nature style)
8. Can connect to duct and link with diffuser
9. The models with big volume is suitable for the big place project.
Specification of decorative 4-side air flowing fan coil unit
1. Air flow: 500CFM,850CMH
2. Cooling capacity 4.7kw
3. Heating capacty 7.05Kw
4. Working with one fan and one motor
5. BLDC brushless motor higher efficiency
6. Power supply 220V-1-50Hz
7. Two pipe/tube system
|decorative 4-side air flowing fan coil unit|
|Air flow -CMH||850|
|Cooling capacity -KW||4.7|
|Heating capacty KW||7.05|
|Testing condition-Cooling||Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out|
|Testing condition-Cooling||Dry ball 20℃ 50℃ in 40℃ out|
|Piping||Two pipe/tube system|
|Power supply||220V-1-50Hz or 110V-1-60Hz|
|Motor type||AC motor BLDC brushless optional|
|Controller||3-speed controller or LED controler is optional|
|BMS||Modbus Ingrated function is optional.|
Data sheet for decorative 4-side air flowing fan coil unit

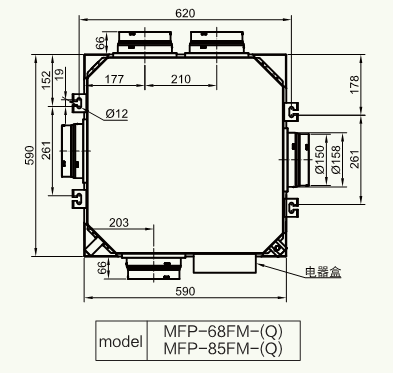

|model(2 tube system)||MFP-68FM-(Q)||MFP-85FM-(Q)||MFP-272FM-(Q)||MFP-300FM-(Q)|
|water pressure dropping||kPa||22||28||51||58|
|dimension of water(in & out)connection pipe||in||ZG3/4"||ZG3/4"||ZG3/4"||ZG3/4"|
|dimension of water drain pipe||mm||￠26||￠26||￠26||￠26|
|net dimension||drained by pump||L×W×H mm||590*590*314||944*944*316|
|drained by nature||590*590*412||944*944*414|

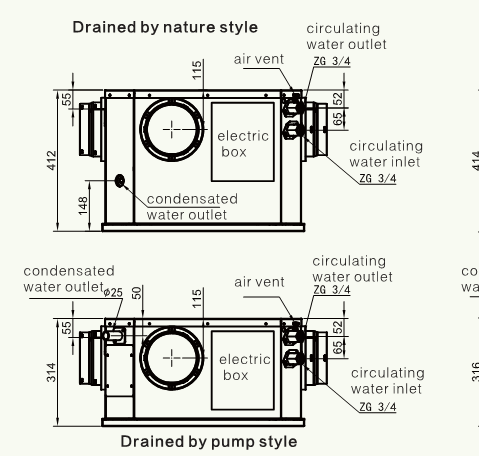

Drained by nature style
Drained by nature style
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned
|fan motor||P.C.B||reciever Board||sensor||
|fan motor capacitor||remote controller||wire controller|
|water level switch||fan||drain tray||swing motor||drain pipe||panel||filter||corner board of panel|
Packing and shipping
Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.
Field-Installed optional Accessories:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.
Q:Can you make OEM brand orders with your water fan coil uits?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
