Cassette Fan Coil Unit
VR
  • Products Details
Detailed Product Description
Cooling Capacity: 5.7kw Heating Capacity: 5.75kw
Air Flow: 600CFM Panel Size: 850x850mm
Unit Size: 750x750x242mm Piping: Four Pipe System
Electrical Box: Outside/build In Optional Fresh Air Hole: Standard Available
Power Supply: 110/220V 1Ph 50/60Hz Water Pump: Build In Water Pump
Modbus: Optional Auto Restart: Optional
Finger Protect: Finger Protect Grill Optional Drain Tray: Extra Bigger Drain Tray Optional
High Light:

hydronic fan coil unit

,

chilled water ceiling cassette fan coil unit

Hydronic Ceiling Cassette 4 pipe system, chilled water four way cassette 600CFM with remote controller



As we all know Hydronic cassette units are ideal for applications and modernizations with suspended ceilings. Ceiling cassette fan coil units make each served area an independent controlled temperature zone to suit diverse requirements. Such as hotels, offices, restaurant, shopping mall applications,etc.MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit.



The M style cassette fan coil unit is our new model having functions and features as below:

1. Available in 9 models. The whole range is designed for suspended ceiling installation.

2. Centrifugal fan, driven by a three-speed motor, statically and dynamically balanced, low noise.

3. Air flow direction can be changed to have uniform cooling.

4. No need for air duct.Easy for installation.

5. Special design of the air filter, washable for many times.

6. Easy for cleaning and maintenance .

7. Driving device and remote control device can be provided for the outlet plates.

8. Water drain pump build in design.

9. Compact design, suitable for strict space installation.

10.  Luxury shape and ABS panel. External and internal sound and heat insulation



MECO Cassette fan coil units Optional:
1: 4 pipes system
2: External drained part
3: It is can be installed for the Electric heater
4: Easily interfaced with most widely used Mod-Bus and proprietary supervisory system based on Mod-Bus protocol
5: Remote controller is standard and wire controller is optional
6: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
7: Water valve can be installed already
8: Grill is optional to prevent from hand injury
9: 1way, 4way, Circulation way air outlet for complete selection
10 Brushless plastic package DC motor&EC motor





Specifications for M style 4-way water cassettes fan coil units:
1. Air flow 600CFM, 1000CMH
2. Cooling capacity 5.7Kw
3. Heating capacty 5.75Kw
4. Cassette Panel dimension 850x850mm, unit dimension 750x750x242mm
5. AC motor , BLDC brushless motor optional
6. Power supply 220V-1-50Hz
7. Four pipe/tube system
8. With build in water pump
9. Build in electrical box is optional.
10. Modbus function is optional.
  M style 4-way water cassettes fan coil units 4 pipe system

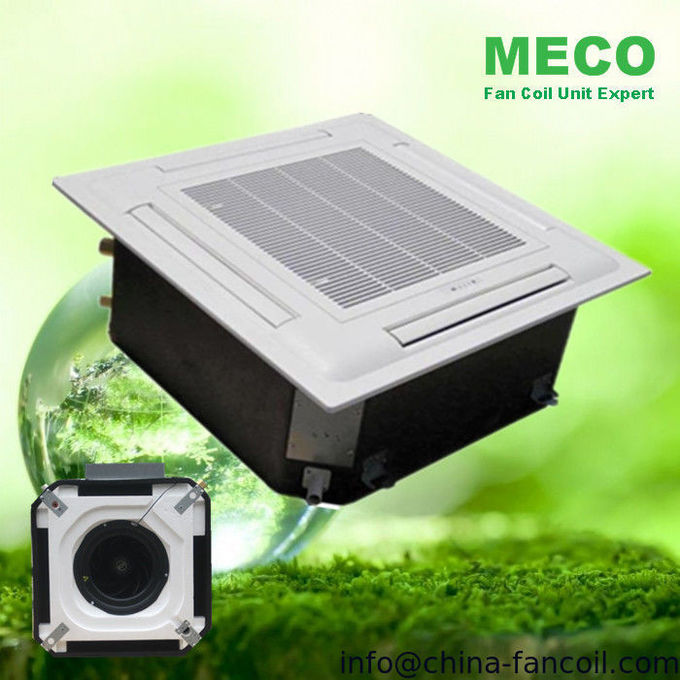

  Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 0
Model MFP-102KM4-MK2
Air flow -CMH 1000
Air flow-CFM 600
Cooling capacity -KW 5.7
Heating capacty KW 5.75
Testing condition-Cooling Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
Testing condition-Cooling Dry ball 20℃ 50℃ in 40℃ out
Piping Four pipe/tube system
Power supply 220V-1-50Hz or 110V-1-60Hz
Drain pump Build in type
Panel dimension Cassette panel size 1050x1050mm
Motor type AC motor BLDC brushless optional
Electrical box Build in electrical box is optional.
BMS Modbus Ingrated function is optional.






Different capacities for M style cassette fan coil unit 2 pipe systems:



MODEL Casstte fan coil unit 2 pipe system

air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM-Q1M 380 2000 3100 40
MFP-51KM-Q1M 550 3000 4700 50
MFP-68KM-Q1M 680 3800 5900 58
MFP-80KM-Q1M 780 4200 6500 60
MFP-85KM-Q1M 880 4900 7600 70
MFP-102KM-Q1M 1050 5800 9000 95
MFP-130KM-Q1M 1300 7000 10900 125
MFP-136KM-Q1M 1380 7500 11600 130
MFP-153KM-Q1M 1550 8100 12200 145
MFP-170KM-Q1M 1750 9800 15200 160
MFP-204KM-Q1M 2050 11000 17100 190
MFP-238KM-Q1M 2200 12000 18600 210
MFP-272KM-Q1M 2720 15000 24000 230





Different capacities capacities for M style cassette fan coil unit 4 pipe systems:

MODEL Casstte fan coil unit 4 pipe system air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM4-Q1MM1 360 1950 1950 40
MFP-51KM4-Q1MM1 520 2950 3000 50
MFP-68KM4-Q1MM1 650 3700 3750 58
MFP-80KM4-Q1MM1 740 4100 4150 60
MFP-85KM4-Q1MM2 840 4800 4850 70
MFP-102KM4-Q1MM2 1000 5700 5750 95
MFP-130KM4-Q1MM2 1240 6850 6950 125
MFP-136KM4-Q1MM3 1320 7350 7400 130
MFP-153KM4-Q1MM3 1480 7940 7780 145
MFP-170KM4-Q1MM3 1660 9600 9700 160
MFP-204KM4-Q1MM3 1950 10800 10900 190
MFP-238KM4-Q1MM3 2090 11750 11850 210
MFP-272KM4-Q1MM4 2090 13200 13500 210





Testing condition:

2-tube system 4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.



Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 1




Certifications for MECO cassette fan coil units:

     Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 2     Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 3




Standard Warranty for all cassette fan coil units orders

  • 18 months since delivery date.
  • supply 1% free parts with shipment.
fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller wire controller drain pump water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Field-Installed optional Accessories:

  • 2 & 3 way valves and with the actuators
  • Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 4Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 5Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 6
  • Wall Mounted Mechanical or Digital Thermostat
  • Wall Mounted Digital Thermostat with Modbus function
  • Wall Mounted Digital Thermostat with WIFI control function
  • Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 7

Full range of water fan coil untis we are producing now:

Durable Water Chiller Fan Coil Unit Cassette Type 600CFM With Remote Controller 8




FAQ.

Q:Can you  make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.



Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
