Cassette Fan Coil Unit
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | Taizhou, China |
|---|---|
| Brand Name: | MECO or OEM |
| Certification: | CE,ISO9001 |
| Model Number: | MFP-1360KM-MK2 , 4 pipe system |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | to be discussed |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month. |
| Cooling Capacity: | 7.35kw | Heating Capacity: | 7.4kw |
|---|---|---|---|
| Air Flow: | 800CFM | Panel Size: | 850x850mm |
| Unit Size: | 750x750x242mm | Piping: | Four Pipe System |
| Electrical Box: | Outside/build In Optional | Fresh Air Hole: | Standard Available |
| Power Supply: | 110/220V 1Ph 50/60Hz | Water Pump: | Build In Water Pump |
| Modbus: | Optional | Auto Restart: | Optional |
| Finger Protect: | Finger Protect Grill Optional | Drain Tray: | Extra Bigger Drain Tray Optional |
| High Light: | chilled water ceiling cassette fan coil unit,cassette type fcu |
||

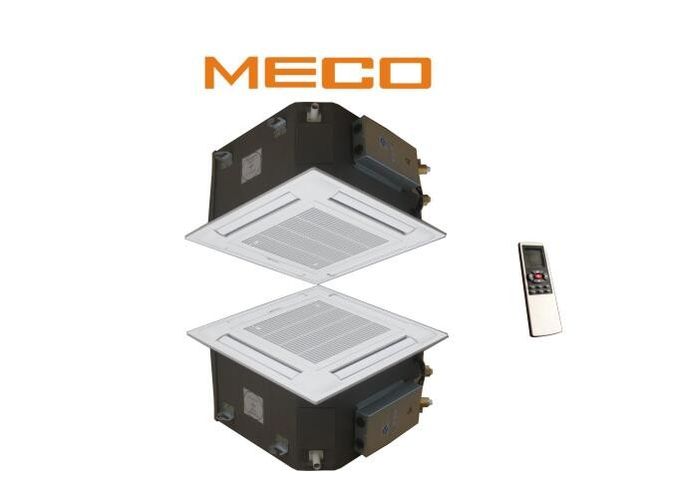

Ceiling cassettes fan coil units 2TR capacity 800CFM, digital display and build in water pump fan coil unit
Cassette Fan Coils have been designed to control the distribution of conditioned air by a 4 way louver discharge system. These types of units are normally located in the false ceiling, with only the front panel visible. With the return air centralized adjustable louvers on the perimeter allow for airflow control in heating and cooling modes. The most popular applications are office buildings and shops. Since the installation is located in the ceiling cassettes are the preferred solution when the user wants a discreet heating and cooling solution that allows free floor or wall surfaces.
4-way air flowing water cassette fan coil unit, which can uniform temperature distributions in the room. This kind of product can be used for central air conditioning system in big social spaces like office building, supermarket, restaurant and so on. Thin design unit which can be installed in a limit ceiling (The Min. thickness is only 290mm). This product is with drain pump. The M style cassette fan coil unit is the luxury model in our cassette products. Panasonic DC brushless motor is optional.
Air volume range: 200m³/h ~ 2720m³/h
Cooling capacity range: 1800W ~ 14400W
Heating capacity range: 2700W ~ 21600W
MECO Cassette fan coil units Optional:
1: 4 pipes system
2: External drained part
3: It is can be installed for the Electric heater
4: Easily interfaced with most widely used Mod-Bus and proprietary supervisory system based on Mod-Bus protocol
5: Remote controller is standard and wire controller is optional
6: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
7: Water valve can be installed already
8: Grill is optional to prevent from hand injury
9: 1way, 4way, Circulation way air outlet for complete selection
10 Brushless plastic package DC motor&EC motor
| M style 4-way water cassettes fan coil units 4 pipe system | |
 |
|
| Model | MFP-136KM4-MK3 |
| Air flow -CMH | 1320 |
| Air flow-CFM | 800 |
| Cooling capacity -KW | 7.35 |
| Heating capacty KW | 7.4 |
| Testing condition-Cooling | Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out |
| Testing condition-Cooling | Dry ball 20℃ 50℃ in 40℃ out |
| Piping | Four pipe/tube system |
| Power supply | 220V-1-50Hz or 110V-1-60Hz |
| Drain pump | Build in type |
| Panel dimension | Cassette panel size 1050x1050mm |
| Motor type | AC motor BLDC brushless optional |
| Electrical box | Build in electrical box is optional. |
| BMS | Modbus Ingrated function is optional. |
Different capacities for M style cassette fan coil unit 2 pipe systems:
|
MODEL Casstte fan coil unit 2 pipe system |
air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT |
| m3/h | W | W | W | |
| MFP-34KM-Q1M | 380 | 2000 | 3100 | 40 |
| MFP-51KM-Q1M | 550 | 3000 | 4700 | 50 |
| MFP-68KM-Q1M | 680 | 3800 | 5900 | 58 |
| MFP-80KM-Q1M | 780 | 4200 | 6500 | 60 |
| MFP-85KM-Q1M | 880 | 4900 | 7600 | 70 |
| MFP-102KM-Q1M | 1050 | 5800 | 9000 | 95 |
| MFP-130KM-Q1M | 1300 | 7000 | 10900 | 125 |
| MFP-136KM-Q1M | 1380 | 7500 | 11600 | 130 |
| MFP-153KM-Q1M | 1550 | 8100 | 12200 | 145 |
| MFP-170KM-Q1M | 1750 | 9800 | 15200 | 160 |
| MFP-204KM-Q1M | 2050 | 11000 | 17100 | 190 |
| MFP-238KM-Q1M | 2200 | 12000 | 18600 | 210 |
| MFP-272KM-Q1M | 2720 | 15000 | 24000 | 230 |
Different capacities capacities for M style cassette fan coil unit 4 pipe systems:
| MODEL Casstte fan coil unit 4 pipe system | air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT |
| m3/h | W | W | W | |
| MFP-34KM4-Q1MM1 | 360 | 1950 | 1950 | 40 |
| MFP-51KM4-Q1MM1 | 520 | 2950 | 3000 | 50 |
| MFP-68KM4-Q1MM1 | 650 | 3700 | 3750 | 58 |
| MFP-80KM4-Q1MM1 | 740 | 4100 | 4150 | 60 |
| MFP-85KM4-Q1MM2 | 840 | 4800 | 4850 | 70 |
| MFP-102KM4-Q1MM2 | 1000 | 5700 | 5750 | 95 |
| MFP-130KM4-Q1MM2 | 1240 | 6850 | 6950 | 125 |
| MFP-136KM4-Q1MM3 | 1320 | 7350 | 7400 | 130 |
| MFP-153KM4-Q1MM3 | 1480 | 7940 | 7780 | 145 |
| MFP-170KM4-Q1MM3 | 1660 | 9600 | 9700 | 160 |
| MFP-204KM4-Q1MM3 | 1950 | 10800 | 10900 | 190 |
| MFP-238KM4-Q1MM3 | 2090 | 11750 | 11850 | 210 |
| MFP-272KM4-Q1MM4 | 2090 | 13200 | 13500 | 210 |
Testing condition:
| 2-tube system | 4-tube system |
|
Cooling Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC Entering/out water temperature: 7ºC/ 12℃ |
Cooling Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC Entering/out water temperature: 7ºC/ 12ºC |
|
Heating Entering air temperature: 20ºC Entering water temperature: 60ºC, Same water flow rate as for the cooling |
Heating Entering air temperature: 20ºC Entering/out water temperature: 60ºC/ 50ºC |
Notes:
1. Both AC or BLDC motor available.
2. Both 50HZ or 60HZ power supplies available.
Certifications for MECO cassette fan coil units:
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | wire controller | drain pump | water level switch | fan | drain tray | swing motor | drain pipe | panel | filter | corner board of panel |
Full range of water fan coil untis we are producing now:
FAQ.
Q:Can you make OEM brand orders water fan coil unit?
A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty for your fan coil unit?
A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our fan coil unit products have 4 pipe system as optional.
Q: Do you have selection software for your Fan coil unit?
A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
