Cassette Fan Coil Unit
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | Taizhou, China |
|---|---|
| Brand Name: | MECO or OEM |
| Certification: | CE,ISO9001 |
| Model Number: | MFP-2040KM-MK3 , 4 pipe system |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | to be discussed |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month. |
| Cooling Capacity: | 9.6kw | Heating Capacity: | 9.7kw |
|---|---|---|---|
| Air Flow: | 1000CFM | Panel Size: | 950x950mm |
| Unit Size: | 840x840x294mm | Piping: | Four Pipe System |
| Electrical Box: | Outside/build In Optional | Fresh Air Hole: | Standard Available |
| Power Supply: | 110/220V 1Ph 50/60Hz | Water Pump: | Build In Water Pump |
| Modbus: | Optional | Auto Restart: | Optional |
| Finger Protect: | Finger Protect Grill Optional | Drain Tray: | Extra Bigger Drain Tray Optional |
| High Light: | chilled water ceiling cassette fan coil unit,cassette type fcu |
||

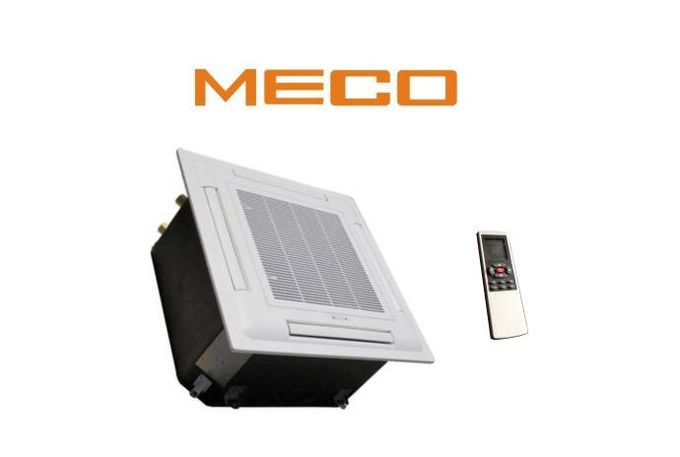

4-way ceiling cassette water FCU, Air flow 1000CFM, Cassette fan coil Panel dimension 950x950mm
Four way chilled water Cassette fan coil units is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.It is used to meet the requirements of cooling, dehumidifier, heating and so on. MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit. The M style cassette fan coil unit is our new model having functions and featurs as below:
1, Cassette type fan coil unit with ultra-thin stealth design
2, The body can be hidden in the ceiling, without occupying indoor useful space.
3, Good air supply direction
4, Cassette fan coil unit with high efficient cross flow fan, ensure the flow to four directions.
5, Cassette type fan coil unit with wireless remote control
6, The temperature in the room can be set accurately, so as to save energy and increase the degree of comfort.
7, Cassette type fan coil unit with novel structure, ultra low noises
8, The front panel of the shell, air filter, electrical components, fan, and fan motor can be easily removed or replaced.
New Features
| M style 4-way water cassettes fan coil units 4 pipe system | |
 |
|
| Model | MFP-170KM4-MK3 |
| Air flow -CMH | 1660 |
| Air flow-CFM | 1000 |
| Cooling capacity -KW | 9.6 |
| Heating capacty KW | 9.7 |
| Testing condition-Cooling | Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out |
| Testing condition-Cooling | Dry ball 20℃ 50℃ in 40℃ out |
| Piping | Four pipe/tube system |
| Power supply | 220V-1-50Hz or 110V-1-60Hz |
| Drain pump | Build in type |
| Panel dimension | Cassette panel size 1050x1050mm |
| Motor type | AC motor BLDC brushless optional |
| Electrical box | Build in electrical box is optional. |
| BMS | Modbus Ingrated function is optional. |
Different capacities for M style cassette fan coil unit 2 pipe systems:
|
MODEL Casstte fan coil unit 2 pipe system |
air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT |
| m3/h | W | W | W | |
| MFP-34KM-Q1M | 380 | 2000 | 3100 | 40 |
| MFP-51KM-Q1M | 550 | 3000 | 4700 | 50 |
| MFP-68KM-Q1M | 680 | 3800 | 5900 | 58 |
| MFP-80KM-Q1M | 780 | 4200 | 6500 | 60 |
| MFP-85KM-Q1M | 880 | 4900 | 7600 | 70 |
| MFP-102KM-Q1M | 1050 | 5800 | 9000 | 95 |
| MFP-130KM-Q1M | 1300 | 7000 | 10900 | 125 |
| MFP-136KM-Q1M | 1380 | 7500 | 11600 | 130 |
| MFP-153KM-Q1M | 1550 | 8100 | 12200 | 145 |
| MFP-170KM-Q1M | 1750 | 9800 | 15200 | 160 |
| MFP-204KM-Q1M | 2050 | 11000 | 17100 | 190 |
| MFP-238KM-Q1M | 2200 | 12000 | 18600 | 210 |
| MFP-272KM-Q1M | 2720 | 15000 | 24000 | 230 |
Different capacities capacities for M style cassette fan coil unit 4 pipe systems:
| MODEL Casstte fan coil unit 4 pipe system | air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT |
| m3/h | W | W | W | |
| MFP-34KM4-Q1MM1 | 360 | 1950 | 1950 | 40 |
| MFP-51KM4-Q1MM1 | 520 | 2950 | 3000 | 50 |
| MFP-68KM4-Q1MM1 | 650 | 3700 | 3750 | 58 |
| MFP-80KM4-Q1MM1 | 740 | 4100 | 4150 | 60 |
| MFP-85KM4-Q1MM2 | 840 | 4800 | 4850 | 70 |
| MFP-102KM4-Q1MM2 | 1000 | 5700 | 5750 | 95 |
| MFP-130KM4-Q1MM2 | 1240 | 6850 | 6950 | 125 |
| MFP-136KM4-Q1MM3 | 1320 | 7350 | 7400 | 130 |
| MFP-153KM4-Q1MM3 | 1480 | 7940 | 7780 | 145 |
| MFP-170KM4-Q1MM3 | 1660 | 9600 | 9700 | 160 |
| MFP-204KM4-Q1MM3 | 1950 | 10800 | 10900 | 190 |
| MFP-238KM4-Q1MM3 | 2090 | 11750 | 11850 | 210 |
| MFP-272KM4-Q1MM4 | 2090 | 13200 | 13500 | 210 |
Testing condition:
| 2-tube system | 4-tube system |
|
Cooling Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC Entering/out water temperature: 7ºC/ 12℃ |
Cooling Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC Entering/out water temperature: 7ºC/ 12ºC |
|
Heating Entering air temperature: 20ºC Entering water temperature: 60ºC, Same water flow rate as for the cooling |
Heating Entering air temperature: 20ºC Entering/out water temperature: 60ºC/ 50ºC |
Notes:
1. Both AC or BLDC motor available.
2. Both 50HZ or 60HZ power supplies available.
Certifications for MECO cassette fan coil units:
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | wire controller | drain pump | water level switch | fan | drain tray | swing motor | drain pipe | panel | filter | corner board of panel |
Full range of water fan coil untis we are producing now:
FAQ.
Q:Can you make OEM brand orders water fan coil unit?
A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty for your fan coil unit?
A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our fan coil unit products have 4 pipe system as optional.
Q: Do you have selection software for your Fan coil unit?
A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
