A professional fan coil unit manufacture in China.
| Place of Origin: | Taizhou, China |
|---|---|
| Brand Name: | MECO |
| Certification: | CE,ISO9001 |
| Model Number: | MFP-34KM-MK1 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | 130-180usd/unit |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month. |
| Cooling Capacity: | 1.70Kw/0.5TR/5800btu @M Speed | Heating Capacity: | 2.65Kw/0.76TR/9040BTU @M Speed |
|---|---|---|---|
| Cold Water In/out: | 7ºC/ 12℃ | Certification: | CE, ISO |
| High Light: | hydronic fan coil unit,cassette type fcu |
||

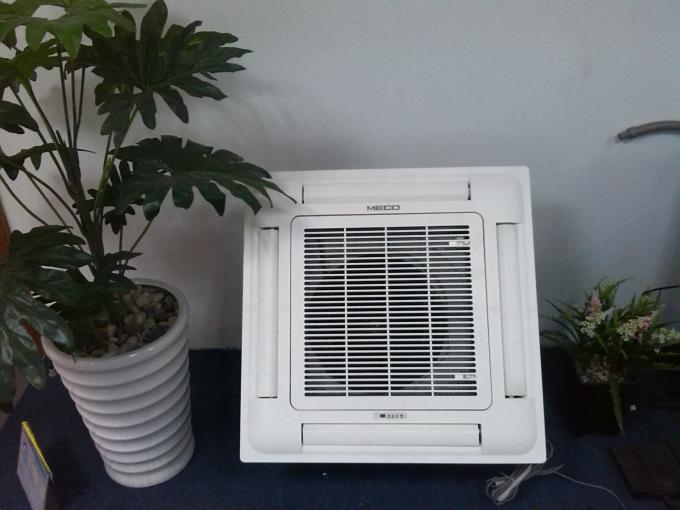

MECO HYDRONIC FOUR WAY CEILING CASSETTE FAN COIL UNITS 0.8TR 300CFM-MFP-51KM-MK1
Hydronic cassette units are ideal for retrofit applications and modernizations with suspended ceilings.
Ceiling cassette units make each served area an independent controlled temperature zone to suit diverse requirements.
For hotel, offices, restaurant, shopping mall applications. Below is our 4-way cassette fan coil unit (M style).

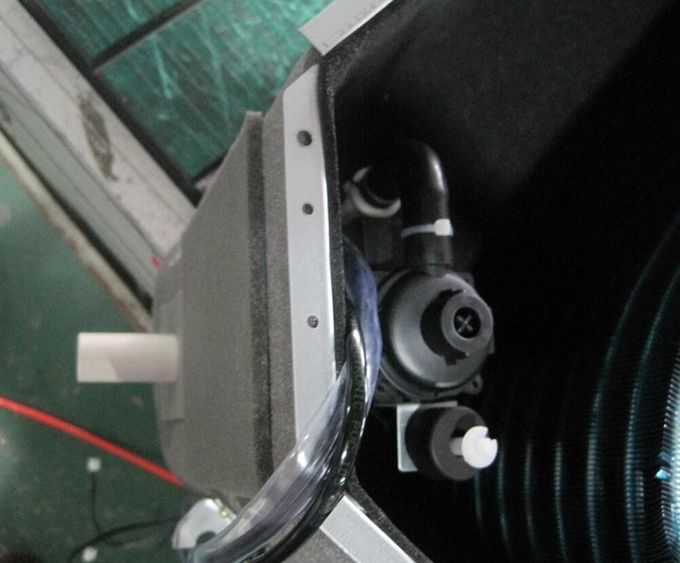

4-way cassette fan coil unit (M style) with build in water drain pump
Hydronic Four way cassette type fan coil unit (M) which passed ISO 9001 and CE certificate, we offer 18 months warranty for this type of unit.
Our companies focus on fan coil unit producing for 20 years. We are expecting become your long-term partner in China.
Product introduction
As a complex product in this field, cassette type fan coil unit is always a hard point for many manufactories. MECO start to produce the first design cassette type fan coil unit in 2001. After nearly 20 years’ experience accumulation, we have completely models of M style cassette type fan coil unit and BLDC motor one. The M style cassette fan coil unit is our core competitiveness which has high stability and comprehensive functions.
Specifications for hydronic four way ceiling cassette FCU model MFP-51KM-MK1 detailed as below:
| MECO MODEL | air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT | POWER SUPPlY | DIMENSTION(NET,mm) | |
| m3/h | W | W | W | panel | unit | ||
| MFP-51KM-Q1MM1 | 510 | 3000 | 4700 | 50 | 220V/1/50Hz | 650*650*40 | 592*592*242 |
Optional functions for MFP-51KM-MK1 cassette Fan coil unit:
| optionals | |||
| mod-bus function | hand protect grill | auxiliary drain tray(big size) | Extra insulation to main unit |
| 2 Pipe system | 4 Pipe system | DIMENSTION(NET,mm) | |
| panel | unit | ||
| MFP-34KM-Q1MK1 | MFP-34KM4-Q1MK1 | 650*650*40 | 592*592*242 |
| MFP-51KM-Q1MK1 | MFP-51KM4-Q1MK1 | 650*650*40 | 592*592*242 |
| MFP-68KM-Q1MK1 | MFP-68KM4-Q1MK1 | 650*650*40 | 592*592*242 |
| MFP-80KM-Q1MK1 | MFP-80KM4-Q1MK1 | 650*650*40 | 592*592*242 |
| MFP-85KM-Q1MK2 | MFP-85KM4-Q1MK2 | 850*850*40 | 750*750*242 |
| MFP-102KM-Q1MK2 | MFP-102KM4-Q1MK2 | 850*850*40 | 750*750*242 |
| MFP-130KM-Q1MK2 | MFP-130KM4-Q1MK2 | 850*850*40 | 750*750*242 |
| MFP-136KM-Q1MK3 | MFP-136KM4-Q1MK3 | 950*950*40 | 840*840*242 |
| MFP-153KM-Q1MK3 | MFP-153KM4-Q1MK3 | 950*950*40 | 840*840*242 |
| MFP-170KM-Q1MK3 | MFP-170KM4-Q1MK3 | 950*950*40 | 840*840*292 |
| MFP-204KM-Q1MK3 | MFP-204KM4-Q1MK3 | 950*950*40 | 840*840*292 |
| MFP-238KM-Q1MK3 | MFP-238KM4-Q1MK3 | 950*950*40 | 840*840*292 |
| MFP-272KM-Q1MK4 | MFP-272KM4-Q1MK4 | 1050*1050*40 | 840*840*292 |
Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
4-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12ºC
Heating
Entering air temperature: 20ºC
Entering/out water temperature: 60ºC/ 50ºC
Certifications:
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | wire controller | drain pump | water level switch | fan | drain tray | swing motor | drain pipe | panel | filter | corner board of panel |
FAQ.
Q:Can you make OEM brand orders for your fan coil units?
A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang, TCL, AUX, CHIGO, LS,etc.
Q: How long is your warranty?
A: We offer 18 months warranty for our fan coil unit products. We offer 1% free repair parts and professional technical support.
Q: Our hotel wants to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your fan coil units?
A: Not yet now. But we can select the fan coil units for you based on your given selection request.
