| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EKON |
| Certification: | CE |
| Model Number: | TF-801 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | USD |
| Packaging Details: | standard export carton |
| Delivery Time: | 15-25days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/MONTH |
| Mounting: | Ceiling Mount | Cooling Capacity: | 1.8-12.6KW |
|---|---|---|---|
| Heating Capacity: | 1.4-21kw | Application: | Commercial |
| Power Supply: | 220V/1PH/50Hz | Function: | Air Conditioner Terminal Unit |
| High Light: | fcu thermostat,digital room thermostat |
||
Round Fan Coil Unit Thermostat With Modbus Control 2 Pipe 4 Pipe Cooling / Heating
Technical data:
Material:PC,ABS
Sensor:NTC,10K
Housing color:White/Black/Customize
Application:FCU/ Central Air Conditionning/fan coil/heater
Accuracy:+-0.5 Celsius Degree
Current Load:3A for 0-10V valve/5A for fan
Screen:Black with white words
Install Box:86*86mm or European 60mm
Communication:WiFi,Modbus,
| Sensor | NTC | Power Supply | 110~240V, 50 ~60Hz |
| Accuracy | ±0.5℃ | Current Load | 3A for valve and 5A for fan |
| Temp. Range | 5 -35℃ | Shell Material | PC+ABS (Fireproof) |
| Power Consumption | <1.5W | Timing error | <1% |
| Installation | 86*86mm or European 60mm round box | Ambient Temp | 0 ~ 45℃,5 ~ 95%RH(Non condensing) |

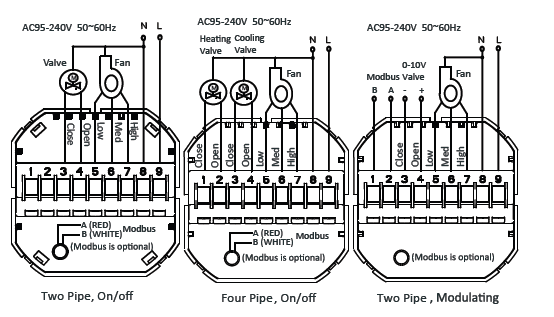

Wiring
