|Model:||DC-MFP-50CM||Type:||Floor Standing Fan Coil Unit|
|Cooling Capacity:||3KW 7/12 @27/19||Heating Capacity::||4.8KW 60/50 @20|
|Air Volume::||500m3/h||Size::||1300 X 130 X 681mm|
|Motor:||BLDC Brushless Motor||Controller:||Soft Touch Screen Controller|
floor standing air conditioning units,
4 pipe fan coil unit
BLDC motor vertical floor standing fan coil units with touch screen controller 4.8kw heating capacity 130cm length
MECO ultra thin vertical floor standing fan coil unit general introduction:
MECO ultra thin vertical fan coil unit continuously exchanges the indoor air with cool & heat supplied by chiller system, in order to adjust the room temperature and humidity. Vertical floor standing fan coil is widely used in bureau, business building, superstore, hotel, hospital, bank, apartment and amusement place.

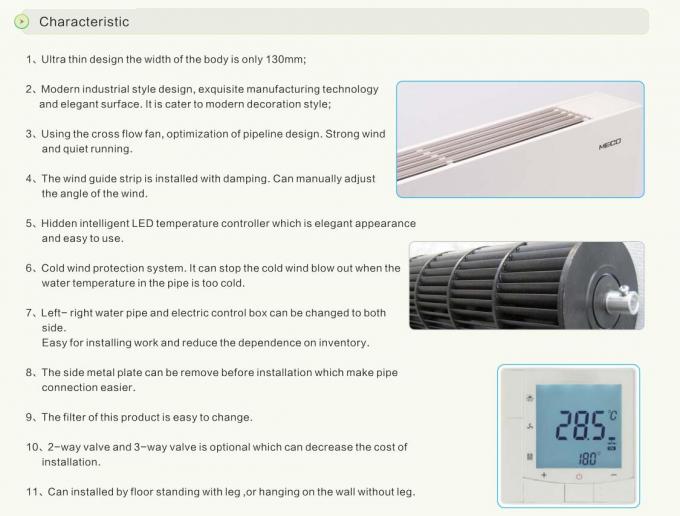

MECO ultra thin vertical floor standing fan coil unit features:
(1) Ultra thin design,the thickness of fan coil unit is only 130mm.
(2) Air return direction is select-able,side air return and bottom air return is optional,adjust to fit different environment;
(3) Air flow can be controlled in a breeze status,very quiet; it is the best alternative to the radiator:
a. Radiators only offer heating,but our ultra thin fan coil unit can offer heating and cooling;
b.Radiator's heating speed is slow and radiation is narrow,inefficient air convection;
Fan coil unit have higher heat exchange speed,therefore fan coil unit can create more uniform temperature field space.
(4) Standard design with inbuilt digital room thermostat.Without room thermostat is optional,user need prepare thermostat;
(5) Unit standard design is manual adjusting to air flow;auto swing is optional must with DC motor;
(6) Left side or right side water connection direction can be selected;
(7) Left and right side panels can be removed independently.It is easy for installation and maintenance;
(8) Easy-removable and washable filter was in-built.
MECO ultra thin vertical floor standing fan coil unit model DC-MFP-50CM
Air flow rate : 500CMH or 400m3/h @ high speed; 160CMH or 160m3/h @ low speed;
Cooling capacity 3kw; (Inlet air DB 27ºC,WB 19.5ºC; water inlet/outlet temp. 7ºC/12ºC.);
Heaint capacity 4.8kw; (Inlet air DB 20°C, hot water inlet/outlet temp. 60°C/50°C);
Heaint capacity 3.36kw; (Inlet air DB 20°C, hot water inlet/outlet temp. 50°C/40°C);
Heaint capacity 2.35kw; (Inlet air DB 20°C, hot water inlet/outlet temp. 40°C/30°C);

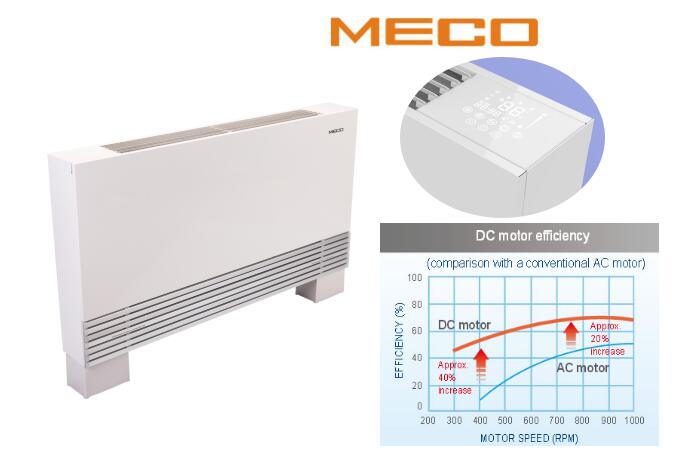

Motor type: BLDC brushless 0-10V DC motor;
Panel design: Front panel flat design with aluminium air return grill at bottom;
Air louver type: auto swing function is standard for BLDC motor models.
Filter type: Washable V shape nylon filter, easy to take out and wash.
Air return : both from bottom and front, for better heat exchange efficiency.
Build in valve: this is optional. We can help to install the valve before delivery.
Controller: touch screen controller
MECO ultra thin vertical floor standing fan coil unit BLDC motor model full data:
|Ultra thin vertical Fan Coil Units With BLDC brushless motor and touch screen Controller|
|Air volume max||m3/h||200||300||400||500||600|
|Air volume min||m3/h||110||160||230||290||340|
|Water tube connection(inlet)||R1/2"|
|Water tube connection(outlet)||R1/2"|
|Coil||Type||high efficient copper pipe to wear Hydrophilic aluminum coil|
|Maximum working pressure||Mpa||1.6|
|Condensation pipe size (diameter)||mm||￠21|
(1)Cooling: Inlet air temperature DB 27ºC,WB 19.5ºC; Chilled water inlet/outlet temp. 7ºC/12ºC.
(2)Heating1: Inlet air temperature DB 20°C, heating water inlet temperature 60°C
(tested by the same water flow with cooling condition).
(3)The noise level is measured in: background noise 11.5Db(A) semi-anechoic room as per GB/T19232-2003.
(4)Rated air flow is tested in standard air condition with DB 20ºC.
(5)Specifications are subject to product improvement and change without notice.

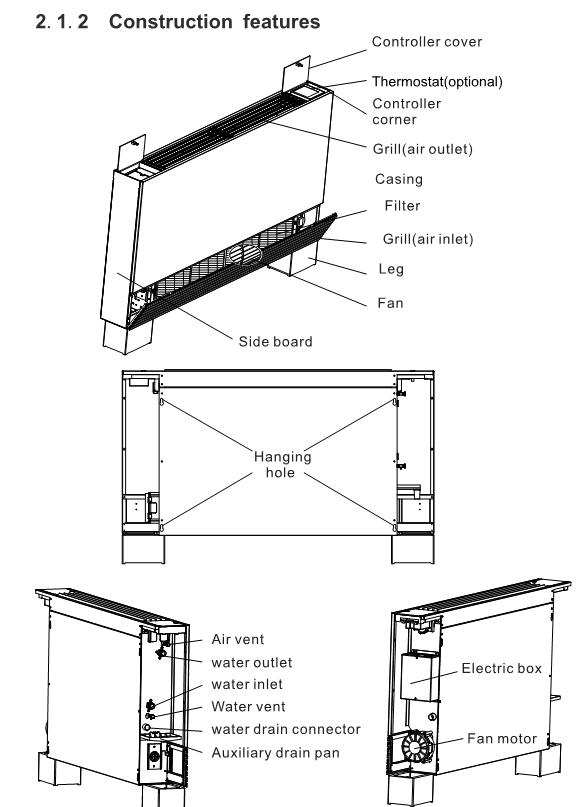

Read and knows about the Ultra-thin vertical floor standing fan coil unit before you install it:
1.Installation place for Ultra-thin vertical floor standing fan coil unit
2. Installation way for Ultra-thin vertical floor standing fan coil unit
3. Installation piping directrions for Ultra-thin vertical floor standing fan coil unit
4. Installation the valve and piping for Ultra-thin vertical floor standing fan coil unit

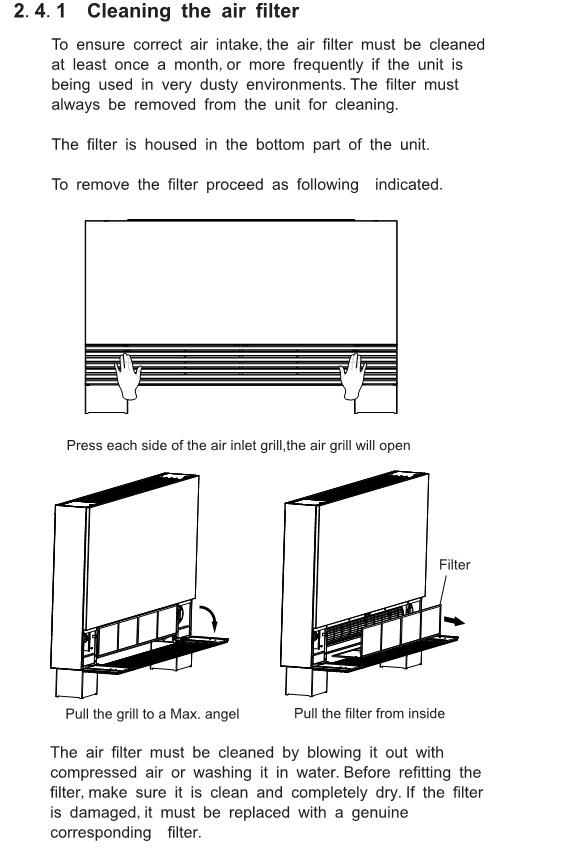

5. How to clean the air filter for Ultra-thin vertical floor standing fan coil unit
Certifications for Ultra-thin vertical floor standing fan coil unit :
Standard Warranty for MECO Ultra-thin vertical floor standing fan coil unit :
18 months whole units warranty since delivery date.
supply 1% free parts with shipment.
Packing and shipping of Ultra-thin vertical floor standing fan coil unit
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.

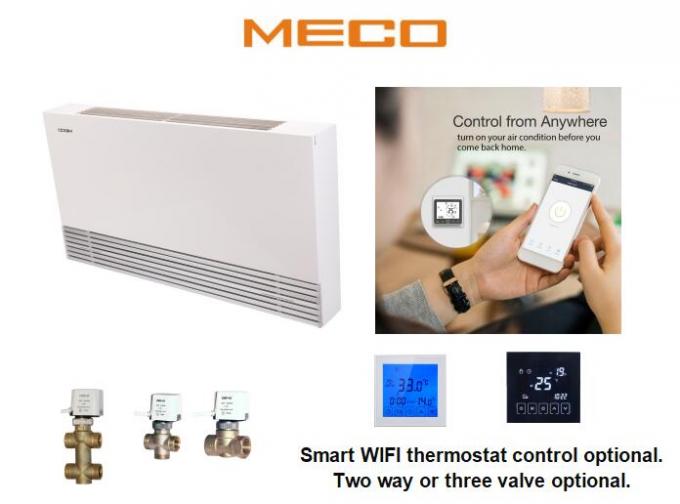

Field-Installed optional Accessories for Ultra-thin vertical floor standing fan coil unit water fan coil units:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have Ultra-thin vertical fan coil unit , which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.
Q:Can you make OEM brand orders with your water fan coil uits, for example Ultra-thin vertical fan coil unit without case?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units, such as your Ultra-thin vertical fan coil unit with case?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the vertical fan coil units without case need have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional, surely our vertical fan coil units without case also have 4 pipe option. And we also have ultra thin ceiling fan coil units, which suitable for hotels very much. We can even supply the motorized two way valve and Modbus function LED thermostat.
Q: Do you have selection software for your water fan coil units?
A: Not yet now. But we can select the units for you based on your given selection request.
We are now prepare the software with one designing company, end of 2019, we will have that in hand.
For more questions, pls feel free to reach us by mail, thank you for visiting our site and appreciate your kind interests in our products!
Your comform air, we MECO care!
