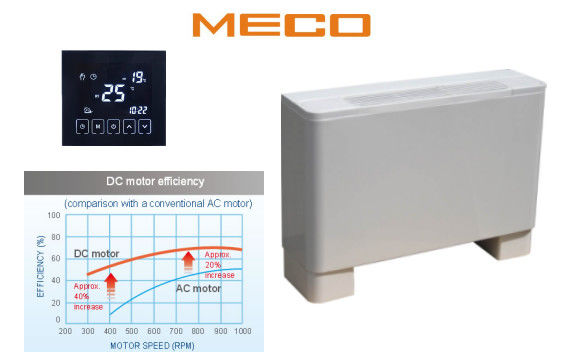

Water-Chilled Floor mounted High Performance Fan Coil Unit with Cooling Capacity 9000W
Specifications for floor standing fan coil units unversal design:
1. Air flow: 1200CFM,2040CMH
2. Cooling capacity 10.8kw
3. Heating capacty 16.2Kw
4. Working with one fan and one motor
5. BLDC brushless motor higher efficiency
6. Power supply 220V-1-50Hz
7. Two pipe/tube system
8. 3-speed controller or LED controler is optional.
9. Use PVC drain pan with 2 water oultet, holoow structure design can enhance the thermal insulation properties, at the same time to prevent from leakage.
10. Left-righ water pipe connection can be changed freely.
11. Six kinds of air distribution solutions are optional.
||floor standing fan coil units unversal design
|Air flow -CMH
|Cooling capacity -KW
|Heating capacty KW
||Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
||Dry ball 20℃ 50℃ in 40℃ out
||Two pipe/tube system
||220V-1-50Hz or 110V-1-60Hz
||AC motor BLDC brushless optional
||3-speed controller or LED controler is optional
||Modbus Ingrated function is optional.
Data sheet for MECO floor standing fan coil lunits 2 pipe system
Data sheet for MECO floor standing fan coil lunits 4 pipe system
1. Cooling condition: Indoor DB=27℃, WB=19℃, water supply 7℃, entering/leaving water temperature difference 5℃.
2. Heating condition: Indoor DB=20℃, water supply temp 60℃.
3. The water pipe connection direction can be changed before installing;
4. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
Certifications for MECO floor standing fan coil units :
Standard Warranty for MECO floor standing fan coil units:
18 months whole units warranty since delivery date.
supply 1% free parts with shipment.
|fan motor capacitor
Packing and shipping
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.
Field-Installed optional Accessories for floor standing fan coil units water fan coil units:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.
Q:Can you make OEM brand orders with your water fan coil uits?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
