Vertical Fan Coil Unit
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MECO or OEM |
| Certification: | CE |
| Model Number: | MFP-204TA |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | contact by email |
| Packaging Details: | Fan coil units Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs per month |
| Model Number: | MFP-136TA | Type: | Vertical Fan Coil Unit |
|---|---|---|---|
| Rated Cooling Capacity: | 7.2KW | Rated Heating Capacity: | 10.8KW |
| Air Volume: | 1360m3/h | Pipe: | Two Pipe System |
| High Light: | electric fan coil unit,split ac fan coil unit |
||

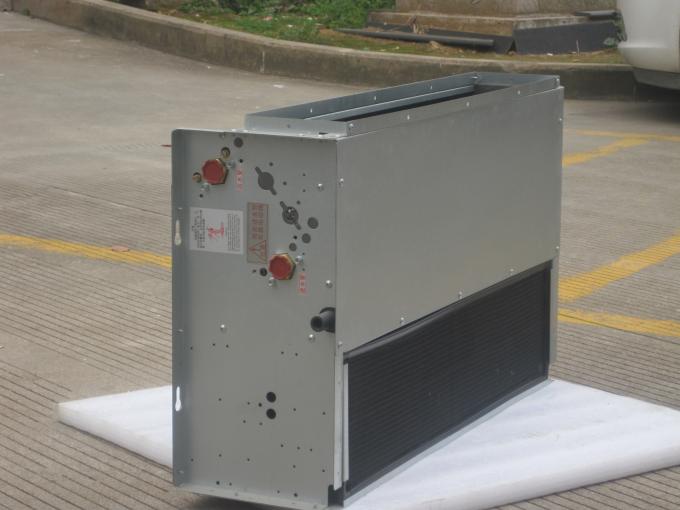

Chilled water Vertical fan coil unit no casing type two pipe unit air rate 1200CFM cooling rate 2TR with metal blower
Product introduction of Vertical fan coil unit no casing type-ceiling conceal or floor concealed fan coil unit :
Vertical fan coil unit no casing type is developed by long time producing and selling experience,which were exported to Italy, Spain, Romania, Hugaria, Iran, Iraq and India market for years. The Vertical fan coil unit no casing type can match different kind of air condition systems. MECO keep using high quality accessory to make high quality products. High quality parts, long working life and very flexible for installation is the three main characteristics of MECO’s vertical fan coil unit. Beside vertical fan coil units, we also have ceiling horizontal fan coil unit, cassette fan coil unit four way, round way type. Also, for special requirement, we do some ultra thin concealed type fan coil untis, for higher ranged hotel or offices usage. And we also developed ultra thin free stand type fan coil units, which is for European market.
Products specification of Vertical fan coil unit no casing type model MFP-85TA4 as below
| MODEL | AIR VOLUME | COOLING CAPACITY | HEATING CAPACITY | |
| m3/h | CFM | W | W | |
| MFP-204TA | 2040 | 1200 | 10800 | 16200 |
Optional functions for MFP-204TA Vertical fan coil unit no casing type:
| optionals | |||
| mod-bus function | electric heater | 2 valve or 3 valve | thermostat |
Models of concealed Vertical fan coil unit no casing type:
| Vertical fan coil unit | Cooling Capacity |
Heating Capacity |
Air flow | Noise |
| W | W | m³/h | dB(A) | |
| Two Pipe Vertical fan coil unit no casing type Three Rows 50Hz | ||||
| Standard Unit: Vertical/horizonal conceal type , inlet front,with nylon filter( 2-pipe system) | ||||
| MFP-34TA | 1800 | 2700 | 340 | 37 |
| MFP-51TA | 2700 | 4050 | 510 | 39 |
| MFP-68TA | 3600 | 5400 | 680 | 41 |
| MFP-85TA | 4500 | 6750 | 850 | 43 |
| MFP-102TA | 5400 | 8100 | 1020 | 45 |
| MFP-136TA | 7200 | 10800 | 1360 | 46 |
| MFP-170TA | 9000 | 13500 | 1700 | 48 |
| MFP-204TA | 10800 | 16200 | 2040 | 50 |
| MFP-238TA | 12600 | 18900 | 2380 | 51 |
| Four Pipe Vertical fan coil unit no casing type Four Rows 50Hz | ||||
| Standard Unit: Vertical/horizonal conceal type , inlet front,with nylon filter( 4-pipe system) | ||||
| MFP-34TA4 | 1800 | 1300 | 340 | 34 |
| MFP-51TA4 | 2700 | 1940 | 510 | 36 |
| MFP-68TA4 | 3600 | 2590 | 680 | 37 |
| MFP-85TA4 | 4500 | 3240 | 850 | 43 |
| MFP-102TA4 | 5400 | 3890 | 1020 | 44 |
| MFP-136TA4 | 7200 | 5180 | 1360 | 44 |
| MFP-170TA4 | 9000 | 6480 | 1700 | 47 |
| MFP-204TA4 | 10800 | 7780 | 2040 | 49 |
| MFP-238TA4 | 12600 | 9070 | 2380 | 51 |
| Remark | ||||
| 1: All the Vertical fan coil unit no casing type can be installed by both Vertical and Horizonal; | ||||
| 2: All the Vertical fan coil unit no casing type water pipe connection direction can be changed before installing; | ||||
Detailed specifications for Vertical fan coil unit no casing type 2 pipe system
Detailed specifications for Vertical fan coil unit no casing type 4 pipe system
Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
Products Feature and details
1. High quantity of Heat exchanger
Our ceiling conceal duct is made of high-quality purple copper, with high diathermanous efficiency, especially tenacity and rigidity characteristic to bear high hydraulic pressure, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficieny heat exchange area, smooth airflow and high-efficient heat exchange.
2. Best fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.
3. High quality Water collection tray
Adopt high class panel, with plastic sprayed on the surface, therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique, there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.
4. Our product use the symmetrical design so that the direction of pipes can be changed according to the actual needs, it makes installation uncomplicate and convenient.
5. MECO concealed fan coil units, this series of fan coil units are designed to suit most ceiling concealed installations. Built-in automatic high-pressure condensate draining pump can pump out water up to 750mm high.
All equipment wiring complies with CE requirements Reliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
Maintenance Features
· Reusable wire framed filters can be vacuum cleaned
Certifications:
Standard Warranty for MECO vertical fan coil unit:
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | |
| installation kits | fan | swing motor | drain pipe | panel | filter |
Packing and shipping
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.
Field-Installed optional Accessories for floor standing fan coil units water fan coil units:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.
FAQ.
Q:Can you make OEM brand orders with your water fan coil uits, for example vertical fan coil units without case?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units, such as your vertical fan coil units without case?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the vertical fan coil units without case need have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional, surely our vertical fan coil units without case also have 4 pipe option. And we also have ultra thin ceiling fan coil units, which suitable for hotels very much. We can even supply the motorized two way valve and Modbus function LED thermostat.
Q: Do you have selection software for your water fan coil units?
A: Not yet now. But we can select the units for you based on your given selection request.
We are now prepare the software with one designing company, end of 2019, we will have that in hand.
For more questions, pls feel free to reach us by mail, thank you for visiting our site and appreciate your kind interests in our products!
Your comform air, we MECO care!
