Vertical Fan Coil Unit
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MECO |
| Certification: | CE |
| Model Number: | MFP-20CM |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | to be discussed |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs per month |
| Model Number:: | MFP-20CM | Type:: | ULTRA THIN VERTICAL TYPE FAN COIL UNIT |
|---|---|---|---|
| Rated Cooling Capacity:: | 1.8KW | Rated Heating Capacity:: | 14.4KW |
| Air Volume:: | 300m3/h | Size:: | 900 X 130 X 681 |
| High Light: | electric fan coil unit,split ac fan coil unit |
||
Product introduction of ultra-thin fan coil unit
MECO universal type fan coil unit have been developed in producing and selling experience by long time. Focusing on the market needs, the MECO turned to start develop a new design of floor standing type fan coil unit------ ultra-thin type. Its ultra-thin design is suitable for home use. Modern industrial style design, exquisite manufacturing technology and elegant surface. It is best to improve decoration style.
Specifications for ultra thin vertical fan coil model MFP-30CM:
1. Air flow 175CFM,300CMH
2. Cooling capacity 1800W
3. Heating capacty 19500W
4. Two pipe system
5. Power supply 220V-1-50Hz
| Ultra thin vertical fan coil unit | Model No. | ||
| 2 tube system | MFP-20CM | 220V-1-50Hz | |
| Cooling Capacity | |||
| Testing item | Capacity-W | At Fan speed | Air Volumn CBM/H |
| Total Capacity 【w】 | 1000 | High Speed | 200 |
| Sensible Capacity【w】 | 713 | ||
| Total Capacity 【w】 | 800 | Medium Speed | 150 |
| Sensible Capacity【w】 | 555 | ||
| Total Capacity 【w】 | 650 | Low Speed | 110 |
| Sensible Capacity【w】 | 430 | ||
| Heating Capacity | |||
| Testing item | Capacity-W | At Fan speed | Air Volumn CBM/H |
| Total Capacity 【w】 | 1600 | High Speed | 200 |
| Total Capacity 【w】 | 1280 | Medium Speed | 150 |
| Total Capacity 【w】 | 830 | Low Speed | 110 |
| Entering air temperature | Cooling Mode | Entering air temperature2 | Heating Mode |
| Dry ball Temp 【℃】 | 27.0 | Dry ball Temp 【℃】 | 20.0 |
| Wet ball Temp 【℃】 | 19.5 | ||
| Inlet water temp 【℃】 | 7.0 | Inlet water temp 【℃】 | 50.0 |
| Outlet water temp 【℃】 | 12.0 | Outlet water temp 【℃】 | 40.0 |
| ITEM | DATA | ITEM2 | DATA2 |
| Rated Power input 【 W】 | 130.0 | Unit dimension L【mm】 | 840 |
| waterflow volume 【m3/h】 | 1.28 | Unit dimension W【mm】 | 840 |
| water pressure dropping 【kPa】 | 23.0 | Unit dimension H【mm】 | 242 |
| Connection pipe Dia【Inch】 | ZG3/4" | Panel dimension L【mm】 | 950 |
| Static pressure【Pa】 | 0.0 | Panel dimension W【mm】 | 950 |
| Water drain pipe Dia 【mm】 | ￠26 | Panel dimension H【mm】 | 40 |
| Packing data | |||
| Unit dimension L【mm】 | 960 | Panel dimension L【mm】 | 1010 |
| Unit dimension W【mm】 | 935 | Panel dimension W【mm】 | 1010 |
| Unit dimension H【mm】 | 275 | Panel dimension H【mm】 | 80 |
| Loading QTY 40HQ/40GP/20GP | 198/170/85 PCS | ||
| Operating limits Water inlet temperature: 5-80°C. Room air temperature: 6-40°C. Relative humidity: 15-75%. Maximum exchanger pressure: 800 kPa (81,5 mc.a.). Power supply voltage: 230 V ±10%. |
|||
Products Feature and details
1. Ultra-thin design, the width of the body is only 130mm
2. Using the cross-flow fan, optimization of pipeline design. Strong wind and quiet running. The wind guide strip is installed with damping. It can manually adjust the angle of the wind.
3. Hidden intelligent LED temperature controller which is elegant appearance and easy to use.
4. Cold wind protection system. It can stop the cold wind blow out when the water temperature in pipe is too cold. Left-right water pipe and electric control box can be changed to both sides. Easy for installing work and reduce the dependence on inventory.
5. The side metal plate can be removed before installation which make pipe connection easier. And filter of this product is easy to change.
Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
Entering air temperature: 20ºC
Entering water temperature: 50ºC, Same water flow rate as for the cooling
All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
Maintenance Features
· Reusable wire framed filters can be vacuum cleaned

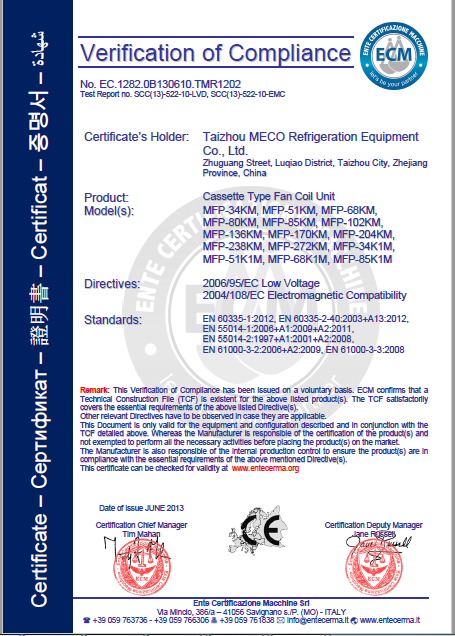

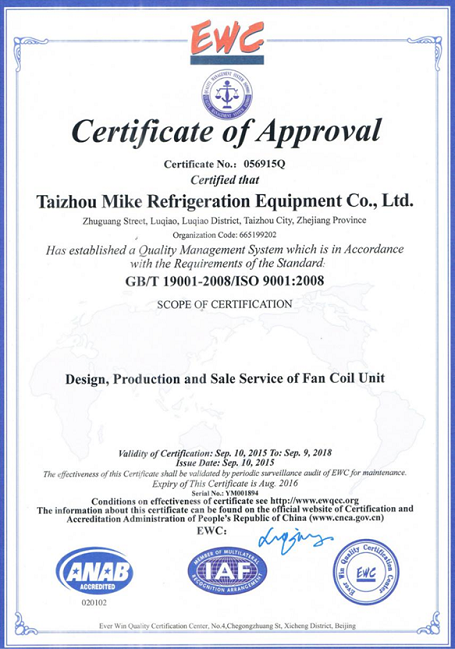

Product certification:
Standard Warranty
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | wire controller |
| water level switch | fan | drain tray | swing motor | drain pipe | panel | filter | corner board of panel |
Field-Installed optional Accessories:

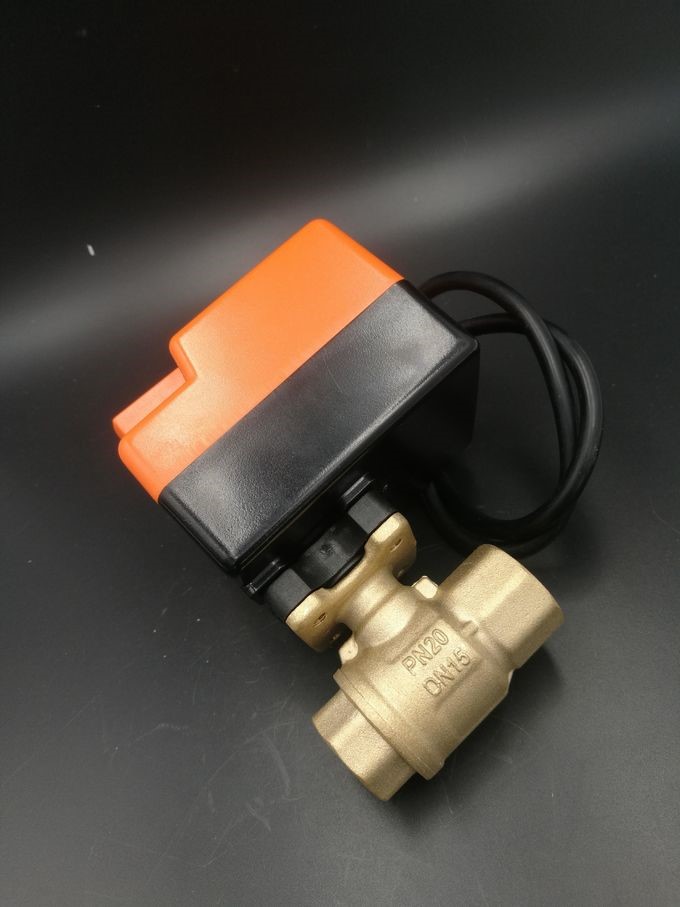

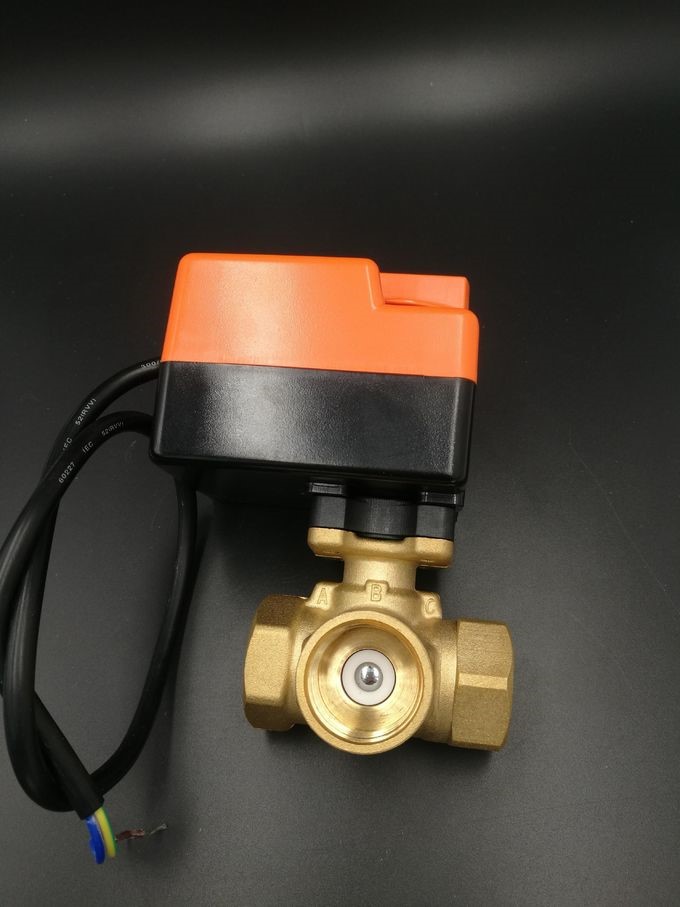

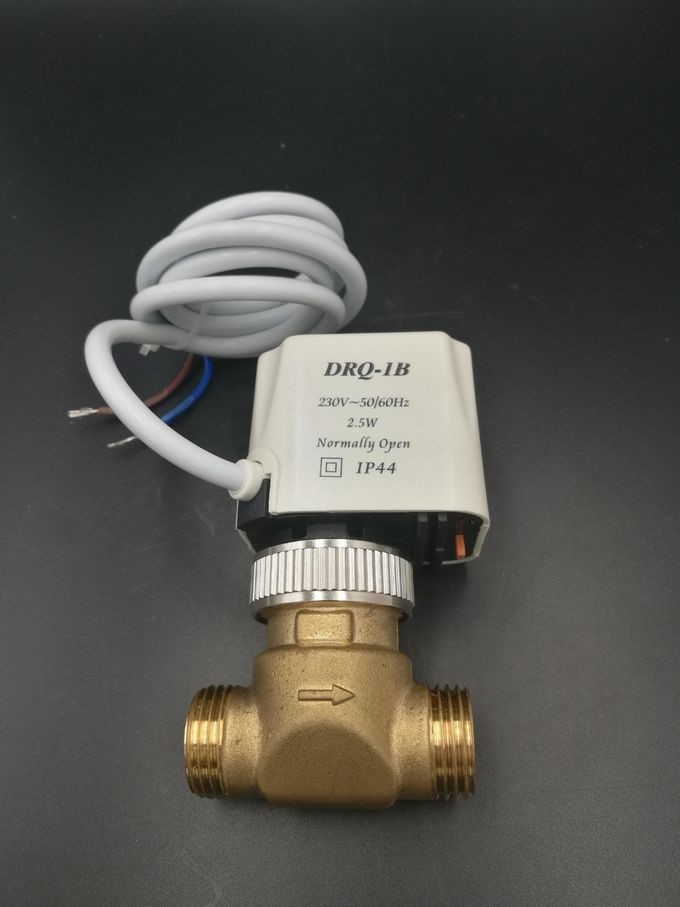

· 2 & 3 way valves and with the actuators

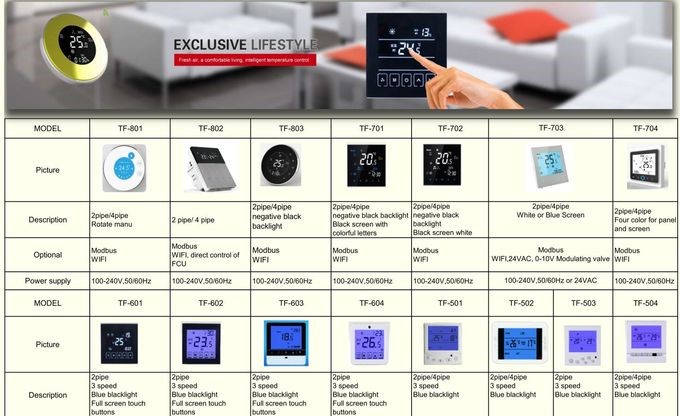

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
FAQ.
Q:Can you make OEM brand orders?
A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty?
A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
