High Wall Fan Coil Unit
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MECO |
| Certification: | CE |
| Model Number: | MFP-34BM |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | contact by e-mail |
| Packaging Details: | Standard export carton box for all water fan coil unit |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs fan coil units production per month |
| Model Number: | MFP-34BM | Type: | High Wall Fan Coil Unit |
|---|---|---|---|
| Rated Cooling Capacity: | 1.8KW | Rated Heating Capacity:: | 2.7KW |
| Air Volume: | 340 M3/h 200CFM | Size: | 850 X 300 X 198mm |
| Pipe: | 2 Pipe System | Control: | Wireless Remote Control |
| Motor: | AC Motor | Optional Parts: | Motorized Valve |
| High Light: | slim wall air conditioning units,decorative fan coil units |
||
6142Btu High Wall Fan Coil Unit 200CFM with wireless remote controller 2 pipe cooling only(208/230-1-50) 60HZ optional
MECO® CE certified high wall fan coil unit. MFP-BM/AM serires is easy to install like a standard water fan coil unit. Without decreasing the emission and without any extra frame, 2 way or 3 way valves, and the condensate pump can be mounted into the casing. All BM type high wall fan coil unit models operate with very low electricity consumption and have extremely quiet sound levels necessary for new modern-day projects.
· High Wall hanging water fan coil units
· From 200 to 800 CMH
· Cooling capacity from 1.8KW to 7.2 kW
· AC or EC motors optional.
· Extremely quiet sound levels
· 3 sizes and 6 capacities available
· Internally mounted valves optional
· 2 pipe cooling coil only
· Optional condensate pumps
· infra-red controller
· CE certified
· Power supply 220V-1-50Hz, 220V-1-60Hz, 110V-1-60Hz all available.
Products specification of high wall fan coil unit
| MODEL | AIR VOLUME |
COOLING CAPACITY |
HEATING CAPACITY |
|
| m3/h | CFM | W | W | |
| MFP-34BM | 340 | 200 | 1800 | 2700 |

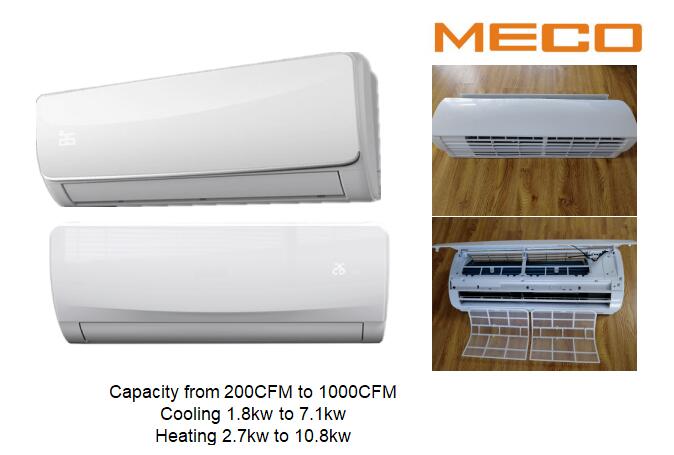

Model No. MFP-34BM High wall fan coil unit
Air flow rate 340m3/h, 200CFM
Cooling capacity 1800w, at 7/12 degrees
Heating capacity 2700w
With wireless remote controller.
2 pipe system.
Products Feature and details
1 Streamlined appearance, conceal style digital display panel.
2 Remote controller is standard, wire controller is optional.
3 Stainless steel hose, let the water connection easily. (optional)
Products specification of high wall fan coil unit
| High wall fan coil units Models | MFP-34BM | MFP-51BM | MFP-68BM | MFP-85BM | MFP-102BM | MFP-136BM | ||
| Air Volume | Hi Speed | CFM | 200 | 300 | 400 | 500 | 600 | 800 |
| m3/h | 340 | 510 | 680 | 850 | 1020 | 1360 | ||
| Medium Speed | CFM | 150 | 225 | 300 | 375 | 450 | 600 | |
| m3/h | 255 | 382.5 | 510 | 637.5 | 765 | 1020 | ||
| Low Speed | CFM | 100 | 150 | 200 | 250 | 300 | 400 | |
| m3/h | 170 | 255 | 340 | 425 | 510 | 680 | ||
| Cooling Capacity | Hi Speed | W | 1808 | 2712 | 3618 | 4514 | 5406 | 7210 |
| Medium Speed | W | 1537 | 2305 | 3075 | 3837 | 4595 | 6129 | |
| Low Speed | W | 1175 | 1763 | 2352 | 2934 | 3514 | 4687 | |
| Heating Capacity | Hi Speed | W | 2709 | 4070 | 5418 | 6767 | 8155 | 10807 |
| Medium Speed | W | 2303 | 3460 | 4605 | 5752 | 6898 | 9186 | |
| Low Speed | W | 1761 | 2646 | 3522 | 4399 | 5275 | 7025 | |
| Noise Level | dB(A) | 42/39/36 | 42/39/36 | 43/40/37 | 47/43/40 | 47/43/40 | 49/45/41 | |
| Fan Motor | Fan Quantity | 1 | 1 | 1 | 1 | 1 | 1 | |
| Motor Quantity | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Power Input | W | 52 | 52 | 62 | 76 | 96 | 134 | |
| Water Flow Volume | kg/h | 350 | 610 | 800 | 950 | 1080 | 1390 | |
| Hydraulic Resistance | kPa | 30 | 30 | 30 | 30 | 40 | 40 | |
| Max.Working pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
|
Dimension (W×D×H) |
Net | mm |
850×300 ×198 |
850×300 ×198 |
850×300 ×198 |
970×315 ×235 |
970×315 ×235 |
1100×330 ×235 |
| Packing | mm |
885×360 ×270 |
885×360 ×270 |
885×360 ×270 |
1010×380 ×300 |
1010×380 ×300 |
1140×390 ×300 |
|
| Net/Gross Weight | kg | 11/12.5 | 11/12.5 | 12.6/14.5 | 15/17 | 16/18 | 20/23 | |
| Inlet/Outlet Water Pipe | Rc1/2″(DN15) | Rc1/2″(DN15) | ||||||
| Drain Pipe | R1/2″(DN15) | R1/2″(DN15) | ||||||
| Loading Quantity(20/40/40H) | 328/672/756 | 328/672/756 | 328/672/756 | 238/476/544 | 238/476/544 | 210/434/496 | ||
Notes:
1. Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉), entering/leaving water temperature difference 5℃(41℉).
2. Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).
3. The water pipe connection direction can be changed before installing;
4. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
Selection for actual project of high wall fan coil units based on different temperature conditions:
Top model is BM model, and bottom model is AM model, all specifications are same only panel design different.

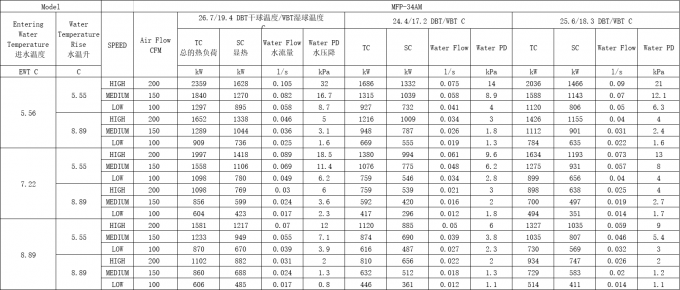

High wall fan coil unit selection table model MFP-34AM / MFP-34BM
Certifications for MECO fan coil units:
Standard Warranty for MECO High wall fan coil units:
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | |
| installation kits | fan | swing motor | drain pipe | panel | filter |
Packing and shipping
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.
Field-Installed optional Accessories for water fan coil units:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function

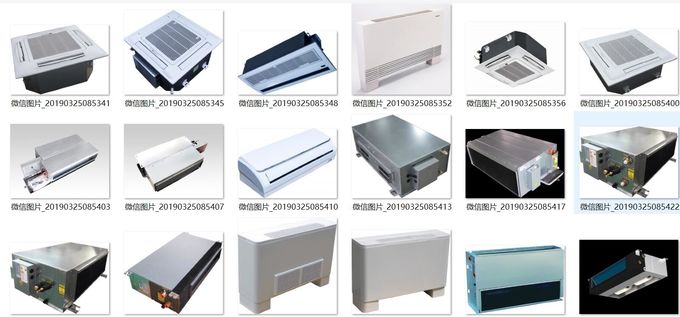

MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
FAQ.
Q:Can you make OEM brand orders with your water fan coil uits?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
