Detailed Product Description
Model Number: MFP-68AM Type: High Wall Fan Coil Unit
Rated Cooling Capacity: 3.6KW 1TR Rated Heating Capacity:: 5.4KW
Air Volume: 680 M3/h 400CFM Size: 970 X 315 X 235mm
Pipe: 2 Pipe System Control: Wireless Remote Control
Motor: AC Motor Optional Parts: Motorized Valve
Auto-restart: Optional Filter Type: Washable Nylon Filter
High Light:

slim wall air conditioning units

,

wall mounted chilled water fan coil unit

AM type high wall fan coil unit-Aqua-Mia, Chilled/Hot Water Hi-Wall Fan Coil, 3.6KW, 2-Pipe Heat/Cool, 208-230/1/50/60



MECO® CE certified AM series AQUA-MIA high wall fan coil unit consists of a fan coil unit, a heat exchange element, and a filter. High wall Fan coil units are ideal water fan coils for summer air conditioning and winter heating of the home and of any room. Fed with cooled water coming from a chiller, they make the air of the room fresh, dry, and clean in a very short time and with great energy efficiency. The high wall fan coil units are fed with hot water coming from a heat pump or from a common boiler and supply dry heating during the winter season.



MECO® CE certified high wall fan coil unit. MFP-AM serires AQUA-MIA is easy to install like a standard water fan coil unit. Without decreasing the emission and without any extra frame, 2 way or 3 way valves, and the condensate pump can be mounted into the casing. All aM type high wall fan coil unit models operate with very low electricity consumption and have extremely quiet sound levels necessary for new modern-day projects.





· High Wall fan coil units

· From 340CMH to 1360CMH

· Cooling capacity from 1.8KW to 7.2 kW

· Heating capacity from  2.7KW to 10.8kW

· Power supply 220V-1-50Hz, 220V-1-60Hz, 110V-1-60Hz all available.

· Auto-restart function optional

· Extremely quiet sound levels

· 3 sizes panel design and 6 capacities available

· 2 pipe cooling coil only

· infra-red controller

· CE certified




Products specification of high wall fan coil unit



MODEL AIR VOLUME

COOLING

CAPACITY

HEATING

CAPACITY

m3/h CFM W W
MFP-68AM 680 400 3600 5400



Notes:

1. Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉),

entering/leaving water temperature difference 5℃(41℉).

2. Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).
3. The water pipe connection direction can be changed before installing;
4. All models, sizes, dimensions, and specifications are subject to change without prior notice,

please refer to nameplates for the most accurate specifications.

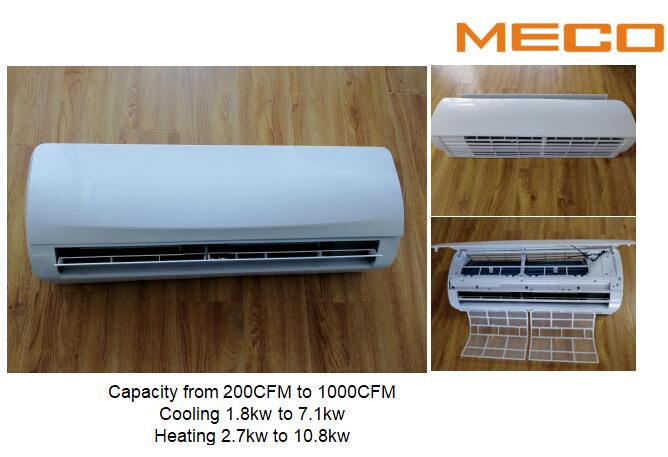

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 0




Products Feature and details



1 Streamlined appearance, conceal style digital display panel.

2 Remote controller is standard, wire controller is optional.

3 Stainless steel hose, let the water connection easily. (optional)




Products specification of high wall fan coil unit

 High wall fan coil units Models MFP-34AM MFP-51AM MFP-68AM MFP-85AM MFP-102AM MFP-136AM
Air Volume Hi Speed CFM 200 300 400 500 600 800
m3/h 340 510 680 850 1020 1360
Medium Speed CFM 150 225 300 375 450 600
m3/h 255 382.5 510 637.5 765 1020
Low Speed CFM 100 150 200 250 300 400
m3/h 170 255 340 425 510 680
Cooling Capacity Hi Speed W 1808 2712 3618 4514 5406 7210
Medium Speed W 1537 2305 3075 3837 4595 6129
Low Speed W 1175 1763 2352 2934 3514 4687
Heating Capacity Hi Speed W 2709 4070 5418 6767 8155 10807
Medium Speed W 2303 3460 4605 5752 6898 9186
Low Speed W 1761 2646 3522 4399 5275 7025
Noise Level dB(A) 42/39/36 42/39/36 43/40/37 47/43/40 47/43/40 49/45/41
Fan Motor Fan Quantity   1 1 1 1 1 1
Motor Quantity   1 1 1 1 1 1
Power Input W 52 52 62 76 96 134
Water Flow Volume kg/h 350 610 800 950 1080 1390
Hydraulic Resistance kPa 30 30 30 30 40 40
Max.Working pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6

Dimension

(W×D×H)

Net mm

850×300

×198

850×300

×198

850×300

×198

970×315

×235

970×315

×235

1100×330

×235

Packing mm

885×360

×270

885×360

×270

885×360

×270

1010×380

×300

1010×380

×300

1140×390

×300

Net/Gross Weight kg 11/12.5 11/12.5 12.6/14.5 15/17 16/18 20/23
Inlet/Outlet Water Pipe   Rc1/2″(DN15) Rc1/2″(DN15)
Drain Pipe   R1/2″(DN15) R1/2″(DN15)
Loading Quantity(20/40/40H)   328/672/756 328/672/756 328/672/756 238/476/544 238/476/544 210/434/496



Notes:

1. Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉), entering/leaving water temperature difference 5℃(41℉).

2. Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).
3. The water pipe connection direction can be changed before installing;
4. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.




Selection for actual project of high wall fan coil units based on different temperature conditions:



Top model is BM model, and bottom model is AM model, all specifications are same only panel design different.

                                   AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 1



High wall fan coil unit selection table model MFP-34AM / MFP-34BM

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 2

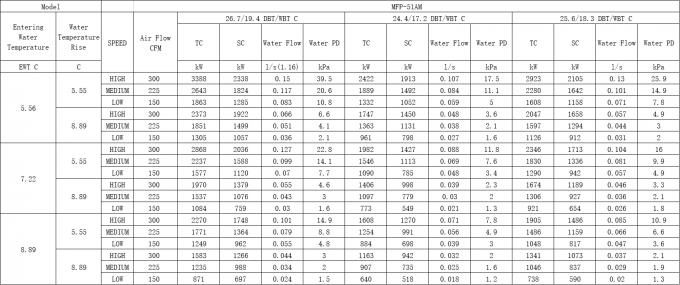

High wall fan coil unit selection table model MFP-51AM / MFP-51BM

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 3

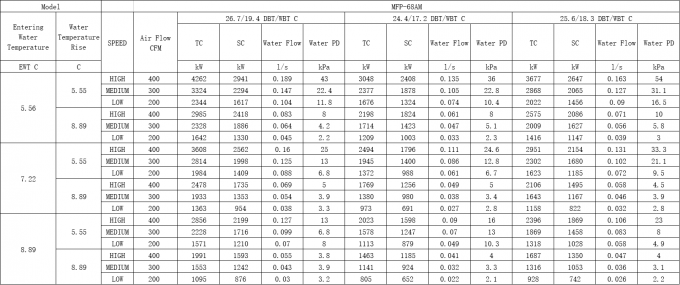

High wall fan coil unit selection table model MFP-68AM / MFP-68BM

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 4

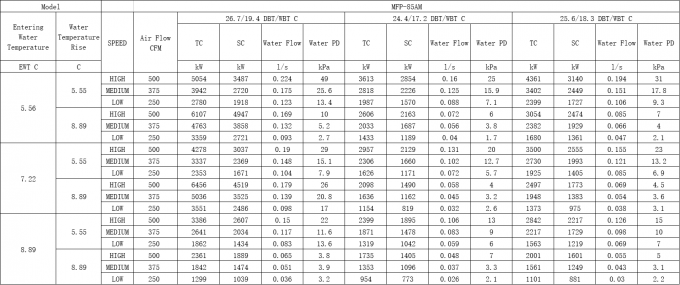

High wall fan coil unit selection table model MFP-85AM / MFP-85BM

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 5



High wall fan coil unit selection table model MFP-102AM / MFP-102BM

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 6



High wall fan coil unit selection table model MFP-136AM / MFP-136BM

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 7




Certifications for MECO fan coil units:

AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 8AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 9




Standard Warranty for MECO High wall fan coil units:

18 months whole units warranty since delivery date.

supply 1% free parts with shipment.

fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller
installation kits fan   swing motor drain pipe panel filter





AM Type Air Conditioning Fan Coil Unit Wall Mounted Type 680 M3/H  400CFM Air Volume 10






Packing and shipping



Normally we use carton packing for our standed exported order water fan coil units.

The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.

We also have strong packing as optional, depends on customers needs.

We have plywood box, pallets, or honeycomb box etc.

Our FOB port is NINGBO, China port.




Field-Installed optional Accessories for water fan coil units:



· 2 & 3 way valves and with the actuators



· Wall Mounted Mechanical or Digital Thermostat

· Wall Mounted Digital Thermostat with Modbus function

· Wall Mounted Digital Thermostat with WIFI control function


MECO full range of chilled water hydronic water fan coil untis producing now.

For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;

For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.

As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.



Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.

There are two options for the build water valve or without build in water valve.



Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!

chilled water terminal units,cassette water fan coil units with build in water pump  2pipe system




FAQ.

Q:Can you make OEM brand orders with your water fan coil uits?

A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty after shipment of the water fan coil units?

A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.

     Short time reaction and professional technical support is our key attention.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our water fan coil units products have 4 pipe system as optional.



Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.
