|Mounting:||Floor Standing Or Ceiling Mounted||Operating Voltage:||220V/1P/50HZ,220v/230v|
|Cooling Capacity:||1.8-12.6KW,2.35kW To 14kW||Product Name:||Fan Coil Unit Vertical|
|Material:||Galvanized Steel||Function:||Air Conditioner Terminal Unit|
|Color:||White||Fan Motor:||Standard Or DC Fan Motor|
floor standing air conditioning units,
floor standing fcu
Hydronic Floor standing or ceiling mounted Fan Coil Unit Cooling Capacity 9KW with front and bottom air return 2 pipe
Ceiling Floor Fan Coil Unit
Air flow volume: 300-1400CFM
Power supply: 220-240V/1/50Hz or 60Hz
Specifications for vertical floor standing fan coil units:
1. Air flow: 1000CFM,1700CMH
2. Cooling capacity 9.0kw
3. Heating capacty 13.5Kw
4. Working with one fan and one motor
5. BLDC brushless motor higher efficiency
6. Power supply 220V-1-50Hz
7. Two pipe/tube system
8. 3-speed controller or LED controler is optional.
9. Use PVC drain pan with 2 water oultet, holoow structure design can enhance the thermal insulation properties, at the same time to prevent from leakage.
10. Floor mounted or ceiling mounted both available.
11. Six kinds of air distribution solutions are optional.
|floor standing fan coil units||Water-Chilled floor standing fan coil units with Cooling Capacity 9000W|
|Air flow -CMH||1700|
|Cooling capacity -KW||9|
|Heating capacty KW||13.5|
|Testing condition-Cooling||Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out|
|Testing condition-Cooling||Dry ball 20℃ 50℃ in 40℃ out|
|Piping||Two pipe/tube system|
|Power supply||220V-1-50Hz or 110V-1-60Hz|
|Motor type||AC motor BLDC brushless optional|
|Controller||3-speed controller or LED controler is optional|
|BMS||Modbus Ingrated function is optional.|
Data sheet for MECO floor standing fan coil lunits 2 pipe system

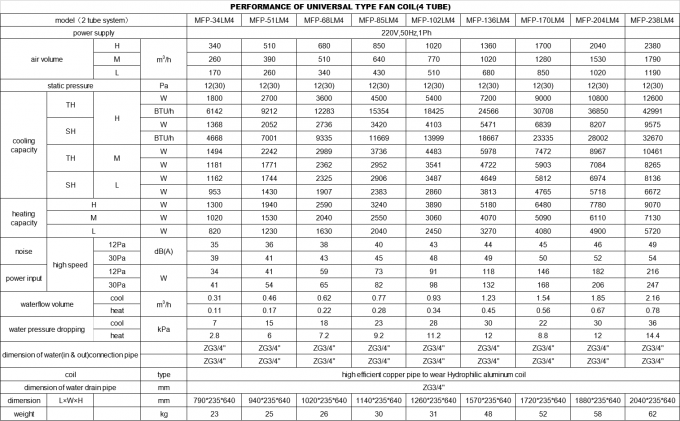

Data sheet for MECO floor standing fan coil lunits 4 pipe system
1. Cooling condition: Indoor DB=27℃, WB=19℃, water supply 7℃, entering/leaving water temperature difference 5℃.
2. Heating condition: Indoor DB=20℃, water supply temp 60℃.
3. The water pipe connection direction can be changed before installing;
4. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
Certifications for MECO floor standing fan coil units :
Standard Warranty for MECO floor standing fan coil units:
|fan motor||P.C.B||reciever Board||sensor||
|fan motor capacitor||remote controller|
|installation kits||fan||swing motor||drain pipe||panel||filter|
Packing and shipping
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.
Field-Installed optional Accessories for floor standing fan coil units water fan coil units:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.
Q:Can you make OEM brand orders with your water fan coil uits?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
