Floor Standing Fan Coil Unit
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MECO |
| Certification: | CE |
| Model Number: | MFP-238ZDM |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | contact by e-mail |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs per month |
| Model Number:: | MFP-238ZDM | Type:: | Floor And Ceiling |
|---|---|---|---|
| Rated Cooling Capacity:: | 12.6KW-4TR | Rated Heating Capacity:: | 18.9KW |
| Air Volume:: | 2380m3/h-1400CFM | Size:: | 1672X 673X 243 |
| Operating Voltage: | 220V Or 110V Both | Warranty: | 18 Months Since Delivery |
| Free Spare Parts: | 1% Of Total FOB Value | ||
| High Light: | floor standing air conditioning units,floor standing fcu |
||
4TR Chilled water floor mounted fan coil units , 1400CFM floor ceiling universal type installation with remote
Product introduction of ceiling floor fan coil unit.
MECO ceiling floor mounted fan coil units is aim to meet different kind of decoration needs. It can be installed as a ceiling mounted fan coil or a floor standing fan coil unit. It have elegant design, run quietly and installed flexiblely.
Products Feature and details of MECO ceiling floor fan coil unit
Products Feature and details of ceiling floor fan coil unit
1. Canbe installed by ceiling mounted, floor standing or wall mounted.
2. Remote congtroller is standard and wired thermostat is optional.
3. With wide air flow range.
4. Auto swing.
5. Quiet running.
6. Modbus is optional.
7. Build in water valve is optional.
8. Four pipe system is optional.
Products specification of floor mounted fan coil units
| MODEL | AIR VOLUME | COOLING CAPACITY | HEATING CAPACITY | |
| m3/h | CFM | W | W | |
| MFP-238ZDM | 2380 | 1400 | 12600 | 18900 |
Optional functions for MFP-238ZDM floor mounted fan coil units:
| optionals | |||
| mod-bus function | electric heater | 2 valve or 3 valve | thermostat |
Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
Maintenance Features
· Reusable wire framed filters can be vacuum cleaned
Product certification:
All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
Maintenance Features
· Reusable wire framed filters can be vacuum cleaned
Standard Warranty
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | wire controller |
| water level switch | fan | drain tray | swing motor | drain pipe | panel | filter | corner board of panel |
Packing and shipping
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.
Field-Installed optional Accessories for floor standing fan coil units water fan coil units:

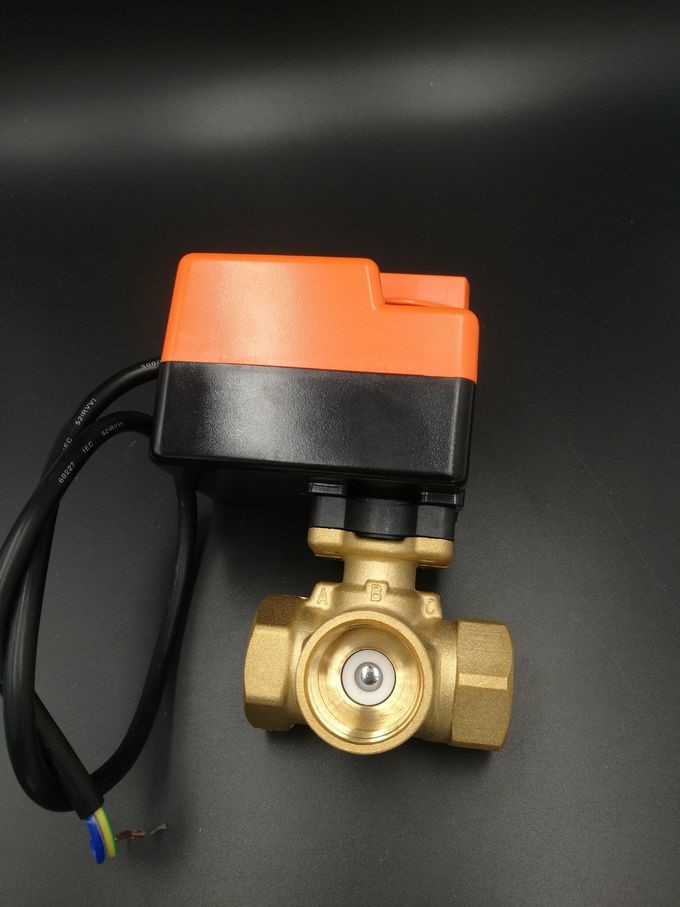

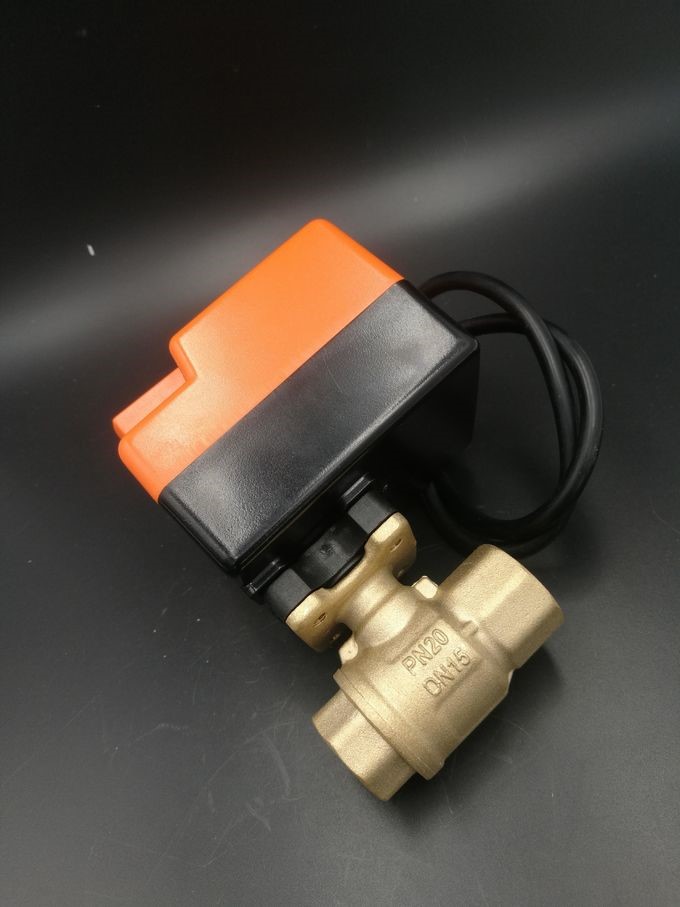

· 2 & 3 way valves and with the actuators

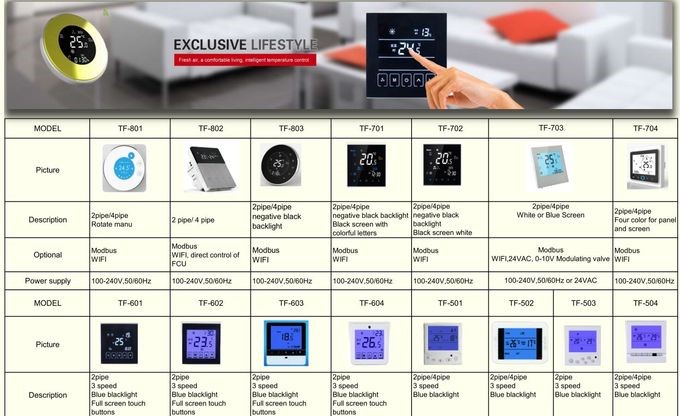

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.
FAQ.
Q:Can you make OEM brand orders with your water fan coil uits?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
