Ultra Slim Fan Coil Units With DC motor and Screen Touch Controller for Indoor Temperature Regulation

Use the step less DC motor, fit special controller(cassette/ultra thin style), or 0-10V fan coil thermostat

SEND INQUIRY NOW

Product Details

CHARACTERISTIC

1. Use the step less DC motor, fit special controller(cassette/ultra thin style), or 0-10V fan coil thermostat;

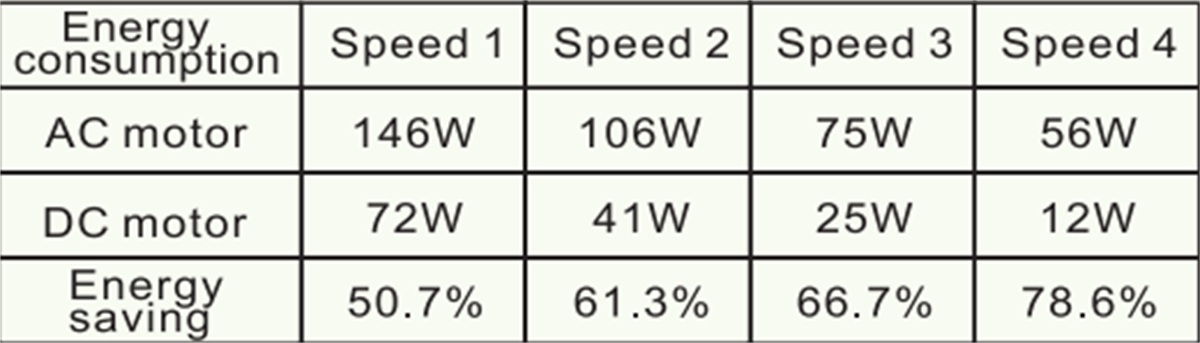

2. Use Panasonic DC motor, high efficiency and low energy consumption. The energy consumption of DC motor is average more than 60% compare to AC motor.

3. Long running Life

The energy consumption for motor is changed to energy for running and heat, efficiency of AC motor is always 40-45%, it means that there have 55%-60% energy was transfer ed to heat.

The heat might cause to the aging of components, which is harm to the life of motor.

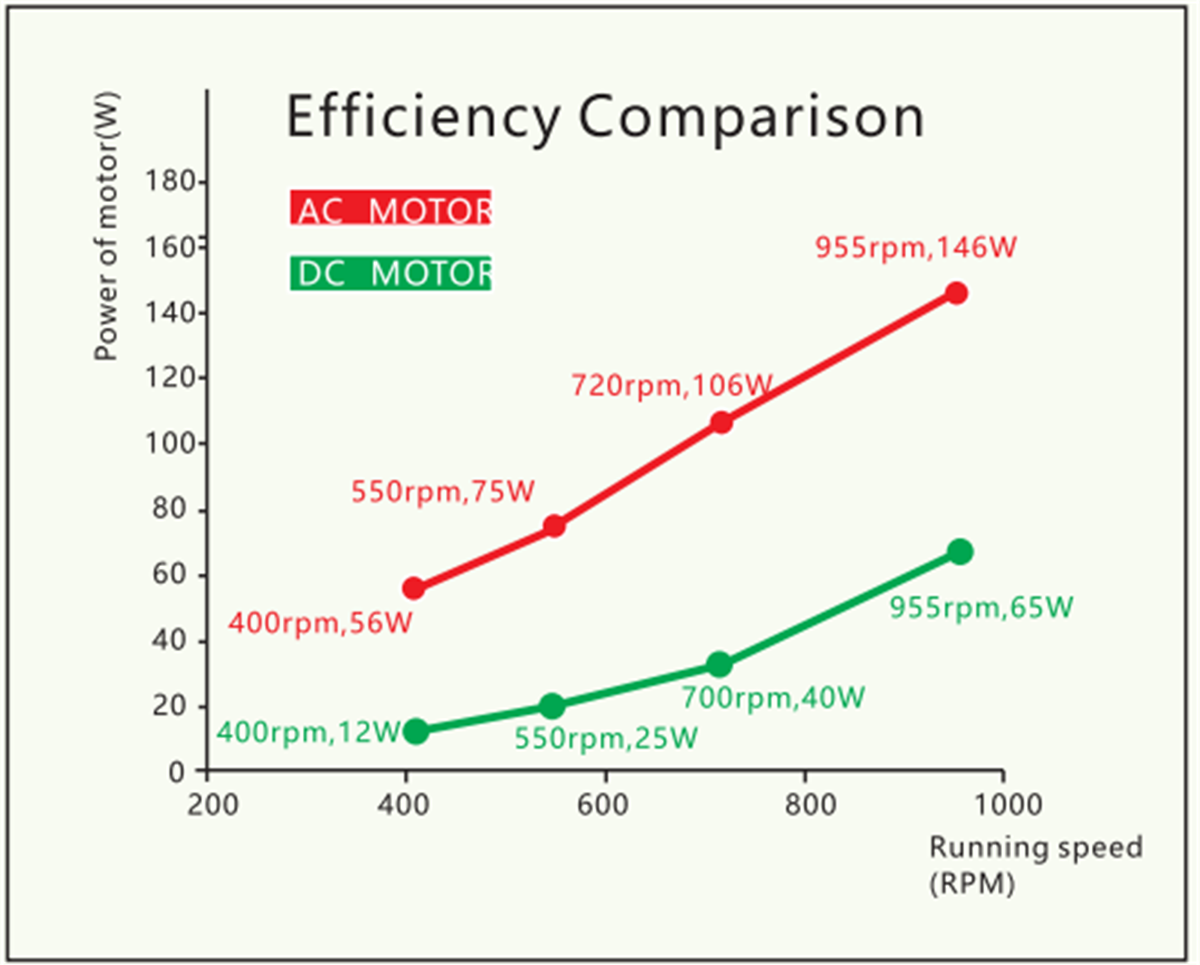

The efficiency of DC brush less motor is always more than 80%-95%, so only little energy change to heat.

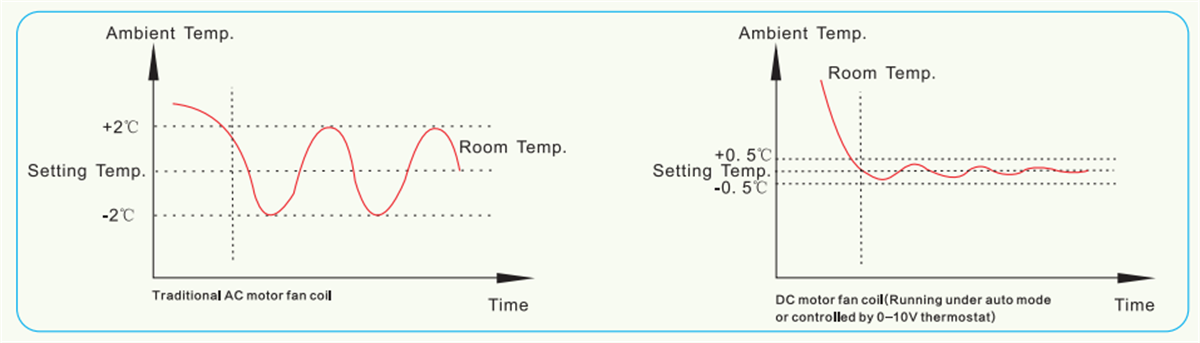

4. Fast cooling/heating & comfortable temperature controlling.

If the room temperature have a big distance to the setting temperature, for normal AC style FCU,the fan will run under the setting speed. While the DC style will automatic running at high speed to fast the cooling/heating.

When the room temperature arrived the setting temperature, the AC models style will stop the fan running or close the water valve, it will cause the cooling/heating can not continue and also the temperature shock in the room;

While the DC style will change the running speed according to the temperature distance between the room temperature and the setting temperature, if the distance is big, the fan speed will be higher. And if the distance is smaller, the running speed will reduce too.

PARAMETER

PERFORMANCE OF "M" STYLE CASSETTE TYPE FAN COIL(4-WAY,2TUBE)---DRAINED BY WATER PUMP
model（2 tube system）				DC-MFP-34KM-Q1MM1	DC-MFP-51KM-Q1MM1	DC-MFP-68KM-Q1MM1	DC-MFP-85KM-Q1MM2	DC-MFP-102KM-Q1MM2	DC-MFP-136KM-Q1MM3	DC-MFP-170KM-Q1MM3	DC-MFP-204KM-Q1MM3	DC-MFP-238KM-Q1MM3	DC-MFP-255KM-Q1MM4	DC-MFP-272KM-(Q)MM4
model of panel				MB-SD11M1			MB-SD11M2		MB-SD11M3				MB-SD11M4
power supply				220V,50Hz,1Ph
air volume		H	m3/h	380	550	680	880	1050	1380	1750	2050	2200	2550	2720
		M		300	440	540	700	840	1100	1400	1640	1760	1950	2040
		L		230	330	410	530	630	830	1050	1230	1320	1450	1360
static pressure			Pa	0	0	0	0	0		0	0	0	0	0
cooling capacity	TH	H	W	2000	3000	3800	4900	5800	7500	9800	11000	12000	13400	15000
	TH		BTU/h	6824	10236	12966	16719	19790	25590	33438	37532	40944	44356	51180
	SH		W	1400	2200	2850	3500	4250	5500	7150	8250	9100	9800	11175
	SH		BTU/h	4777	7506	9724	11942	14501	18766	24396	28149	31049	33438	38129
	TH	M	W	1700	2550	3250	4150	4950	6400	8350	9350	10200	10800	12450
	SH	M	W	1150	1800	2350	2850	3500	4550	5950	6850	7650	36850	9560
	TH	L	W	1400	2050	2600	3400	4000	5200	6750	7600	8300	8900	10300
	SH	L	W	950	1400	1850	2300	2800	3600	4700	5450	6000	6500	8400
heating capacity	H		W	3100	4700	5900	7600	9000	11600	15200	17100	18600	21400	24000
	M		W	2650	4000	5000	6450	7650	9850	12900	14550	15800	16700	19900
	L		W	2100	3150	3950	5100	6050	7750	10200	11450	12450	12500	15200
noise	H	0Pa	dB(A)	39	42	44	42	46	46	47	50	51	52	53
power input	H	0Pa	W	27	32	38	46	65	85	105	125	135	140	150
waterflow volume			m3/h	0.34	0.51	0.65	0.83	0.99	1.28	1.67	1.87	2.04	2.21	2.55
water pressure dropping			kPa	11	13	22	18	25	23	28	33	42	43	45
dimension of water(in & out)connection pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	592592242			750750242		840840242	840840292			946946292
net dimension	panel		L×W×H mm	65065040			85085040		95095040	95095040			1050105040
net weight	unit		kg	17	18	18	22	23	25	26	27	27	30	32
	panel			2.2			4.2		5				6

model（4 tube system）				DC-MFP-34KM4-Q1MM1	DC-MFP-51KM4-Q1MM1	DC-MFP-68KM4-Q1MM1	MFP-80KM4-Q1MM1	DC-MFP-85KM4-Q1MM2	DC-MFP-102KM4-Q1MM2	MFP-130KM4-Q1MM2	DC-MFP-136KM4-Q1MM3	MFP-153KM4-Q1MM3	DC-MFP-170KM4-Q1MM3	DC-MFP-204KM4-Q1MM3	DC-MFP-238KM4-Q1MM3	DC-MFP-255KM4-Q1MM4	DC-MFP-272KM4-(Q)MM4
model of panel				MB-SD11M1				MB-SD11M2			MB-SD11M3					MB-SD11M4
power supply				220V,50Hz,1Ph
air volume		H	m3/h	360	520	650	740	840	1000	1240	1320	1480	1660	1950	2090	2400	2720
		M		290	420	510	590	670	800	990	1050	1180	1330	1560	1670	1900	2040
		L		220	310	390	450	500	600	740	790	885	1000	1170	1250	1400	1360
static pressure			Pa	0	0	0	0	0	0	0	0	0	0	0	0	0	0
cooling capacity	TH	H	W	1950	2950	3700	4100	4800	5700	6850	7350	7940	9600	10800	11750	12800	13200
	TH		BTU/h	6700	10050	12700	14050	16400	19400	23400	25100	27100	32750	36800	40150	42991	45040
	SH		W	1350	2150	2800	3250	3450	4150	5150	5400	5773	7000	8100	8900	9500	10000
	SH		BTU/h	4700	7350	9550	11050	11700	14200	17550	18400	19650	23900	27600	30450	32414	34120
	TH	M	W	1650	2500	3200	3500	4050	4850	5850	6250	6490	8200	9150	10000	10520	11000
	SH	M	W	1150	1750	2300	2600	2800	3450	4250	4450	4600	5850	6700	7500	35894	37532
	TH	L	W	1350	2000	2550	2850	3350	3900	4750	5100	5315	6600	7450	8150	8730	9100
	SH	L	W	950	1350	1800	2050	2250	2750	3400	3550	3800	4600	5350	5900	6310	6600
heating capacity	H		W	1950	3000	3750	4150	4850	5750	6950	7400	7780	9700	10900	11850	13000	13500
	M		W	1700	2550	3200	3550	4100	4850	5900	6250	6535	8200	9250	10050	10650	11200
	L		W	1350	2000	2500	2750	3250	3850	4650	4950	5200	6500	7300	7950	8340	8750
noise	H	0Pa	dB(A)	39	42	44	46	42	46	48	46	48	47	50	51	52	53
power input	H	0Pa	W	27	32	38	60	46	65	125	85	145	105	125	135	140	150
waterflow volume		Cooling	m3/h	0.33	0.5	0.64	0.71	0.81	0.97	1.17	1.25	1.4	1.64	1.83	2	2.36	2.2
waterflow volume		Heating	m3/h	0.22	0.33	0.42	0.46	0.54	0.64	0.77	0.82	0.86	1.08	1.21	1.32	1.42	1.5
water pressure dropping		Cooling	kPa	11	13	22	25	18	25	30	23	23	28	33	42	ZG3/4"	ZG3/4"
water pressure dropping		Heating	kPa	7	8	13	14	11	15	21	15	15	19	23	26	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe			in	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe			out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	￠26	￠26	￠26	￠26	￠26	￠26	￠26			￠26	￠26	￠26	￠26	￠26
net dimension	unit		L×W×H mm	592592242				750750242			840840242		840840292			946946292
net dimension	panel		L×W×H mm	65065040				85085040			95095040		95095040			1050105040
net weight	unit		kg	19	20	20	20.5	24.5	25.5	25.5	27.5		29.5	29.5	30	33	33
net weight	panel			2.2				4.2			5					6

PERFORMANCE OF DUCTED TYPE FAN COIL(2 TUBE)(DC motor from Panasonic)
model（2 tube system）				DC-MFP-34WA	DC-MFP-51WA	DC-MFP-68WA	DC-MFP-85WA	DC-MFP-102WA	DC-MFP-136WA	DC-MFP-170WA	DC-MFP-204WA	DC-MFP-238WA
power supply				220V,50HZ/ 60Hz,1Ph
air volume		H	m3/h	340	510	680	850	1020	1360	1700	2040	2380
		M		270	380	515	660	765	1040	1280	1550	1800
		L		190	260	340	430	530	710	860	1050	1280
static pressure			Pa	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)	12(30)
cooling capacity	TH	H	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	TH		BTU/h	6142	9212	12283	15354	18425	24566	30708	36850	42991
	SH		W	1341	2012	2682	3353	4023	5364	6705	8046	9387
	SH		BTU/h	4575	6865	9151	11440	13726	18302	22877	27453	32028
	TH	M	W	1458	2187	2916	3645	4374	5832	7290	8748	10206
	TH	M	W	1152	1728	2304	2880	3455	4607	5759	6911	8063
	SH	L	W	1134	1701	2268	2835	3402	4536	5670	6804	7938
	SH	L	W	930	1395	1860	2325	2790	3720	4649	5579	6509
heating capacity	H		W	2700	4050	5400	6750	8100	10800	13500	16200	18900
	M		W	2079	3119	4158	5198	6237	8316	10395	12474	14553
	L		W	1634	2450	3267	4084	4901	6534	8168	9801	11435
noise	high speed	12Pa	dB(A)	31	32	34	36	39	40	41	42	45
power input	high speed	12Pa	W	15	19	27	33	41	53	66	82	97
waterflow volume			m3/h	0.31	0.46	0.62	0.77	0.93	1.23	1.54	1.85	2.16
water pressure dropping			kPa	7	15	18	23	28	30	22	30	36
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	ZG3/4"
dimension	L×W×H		mm	700458230	810458230	930458230	990458230	1070458230	1328458230	1593458230	1708458230	1928458230
weight			kg	15	18	19	21	28	30	34	37	40

PERFORMANCE OF DUCTED TYPE FAN COIL(2 TUBE， B style)
model（2 tube system）				DC-MFP-34WA-B	DC-MFP-51WA-B	DC-MFP-68WA-B	DC-MFP-85WA-B	DC-MFP-102WA-B	DC-MFP-136WA-B	DC-MFP-170WA-B	DC-MFP-204WA-B	DC-MFP-238WA-B
power supply				220V,50Hz,1Ph
air volume		H	m3/h	340	510	680	850	1020	1360	1700	2040	2380
		M		270	380	515	660	765	1040	1280	1550	1800
		L		190	260	340	430	530	710	860	1050	1280
static pressure			Pa	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)	12(30,50)
cooling capacity	TH	H	W	2150	3200	4000	5000	5800	8000	9500	11300	12800
	TH		BTU/h	7335	10918	13648	17060	19789	27296	32414	38555	43673
	SH		W	1530	2230	2850	3530	4230	5790	6850	8110	9140
	SH		BTU/h	5220	7608	9724	12044	14432	19755	23372	27671	31185
	TH	M	W	1710	2510	3305	4090	4790	6660	7695	9153	10000
	SH	M	W	1210	1715	2320	2890	3345	4715	5470	6340	7165
	TH	L	W	1355	2000	2470	3000	3520	5150	5870	6820	7850
	SH	L	W	980	1420	1735	2020	2500	3530	4075	4950	5580
heating capacity	H		W	3350	5050	6250	7900	9150	12500	15100	17800	20100
	M		W	2650	3900	5100	6350	7400	10300	11950	14200	15500
	L		W	2100	3100	3850	4650	5450	8000	9100	10550	12150
noise	high speed	12Pa	dB(A)	37	39	41	43	45	47	48	50	52
		30Pa		39	41	43	45	48	49	50	52	54
		50Pa		42	44	46	47	49	50	52	54	56
power input		12Pa	W	21	30	36	44	56	78	89	111	134
		30Pa		25	34	42	52	63	91	102	124	148
		50Pa		28	38	54	64	73	108	134	147	176
waterflow volume			m3/h	0.37	0.55	0.69	0.86	0.99	1.37	1.63	1.94	2.19
water pressure dropping			kPa	16	22	18	29	22	27	35	37	38
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe			mm	ZG3/4"
dimension	without air return box		mm(LWH)	624×465×235	814×465×235	864×465×235	944×465×235	1044×465×235	1424×465×235	1474×465×235	1674×465×235	1824×465×235
	air return from side			624×510×235	814×510×235	864×510×235	944×510×235	1044×510×235	1424×510×235	1474×510×235	1674×510×235	1824×510×235
	air return from bottom			624×492×252	814×492×252	864×492×252	944×492×252	1044×492×252	1424×492×252	1474×492×252	1674×492×252	1824×492×252
weight			kg	11	13	14	16	17	26	29	32	34

Ultra Slim Fan Coil Units With DC motor and Screen Touch Controller
Model		DC-MFP-20CM	DC-MFP-30CM	DC-MFP-40CM	DC-MFP-50CM
Power supply		220V,50Hz,1Ph
Air volume max	m3/h	200	300	400	500
Air volume min	m3/h	110	160	230	290
Cooling capacity	W	1000	1800	2400	3000
Cooling capacity	Btu/h	3412	6142	8189	10236
Heating capacity	W	1600	2900	3850	4800
Heating capacity	Btu/h	5460	9900	13130	16380
Noise	dB(A)	38	39	40	41
Power input	W	12	16	24	28
Waterflow volume	m3/h	0.17	0.26	0.34	0.6
Pressure dropping	kPa	4	6	8	10
Water tube connection(inlet)		R1/2"
Water tube connection(outlet)		R1/2"
Coil	Type	high efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure	Mpa	1.6
Condensation pipe size (diameter)	mm	￠21
Net dimension(LWH)	mm	700130680	900130680	1100130680	1300130680
