Place of Origin: | CHINA |
---|---|
Brand Name: | EKON |
Certification: | CE |
Model Number: | TF-702 |
Minimum Order Quantity: | 20pcs |
---|---|
Price: | USD |
Packaging Details: | standard carton box |
Delivery Time: | 25days after getting payment |
Payment Terms: | T/T |
Supply Ability: | 10000PCS/MONTH |
High Light: | 10k Touch Screen Room Thermostat,3A Touch Screen Room Thermostat,ABS Fan Coil Unit Thermostat |
---|
Material:PC,ABS
Sensor:NTC,10K
Housing color:White/Black/Customize
Application:FCU/ Central Air Conditionning/fan coil/heater
Accuracy:+-0.5 Celsius Degree
Current Load:3A for 0-10V valve/5A for fan

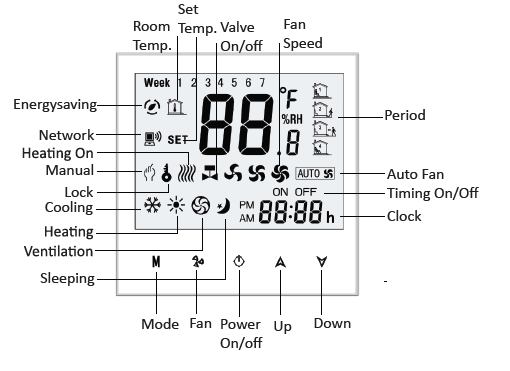

Screen:Black with white words
Install Box:86*86mm or European 60mm
Communication:WiFi,Modbus,BACnet,keycard
Technical Data
Sensor | NTC | Power Supply | 110~240V, 50 ~60Hz |
Accuracy | ±0.5℃ | Current Load | 3A for valve and 5A for fan |
Temp. Range | 5 -35℃ | Shell Material | PC+ABS (Fireproof) |
Power Consumption | <1.5W | Timing error | <1% |
Installation | 86*86mm or European 60mm round box | Ambient Temp | 0 ~ 45℃,5 ~ 95%RH(Non condensing) |
