Fan Coil Unit Valve
  • Products Details
Detailed Product Description
Type: Fan Coil Unit,HVAC Systems Operating Voltage: 230 VAC
Materialf: Forging Brass Body Actuator Torque: 2N.m
Norminal Pressure: 1.6MPa Fluid Temperature: 5-95℃
Working Medium: Water
High Light:

10v modulating water valve


fcu modulating water valve


10v motorized modulating valve

electric motorized valve for ending water way control.
the thermostat can control motor, make the valve power off/on.
power:220v or 24v.
2 way or 3 way.
DN15, DN20,DN25.
2 wiring or 3 wiring.
Nominal pressure:1.6MPa,toque:>3.5N.m. Running time:45-55s
working medium: water, fluid temp:5-95C.

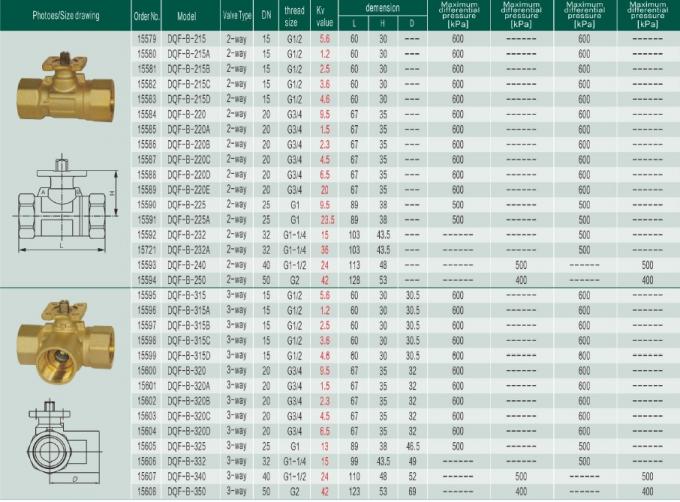

0-10v Modulating Water Valve With Motorized Bady / 24v Supply 0

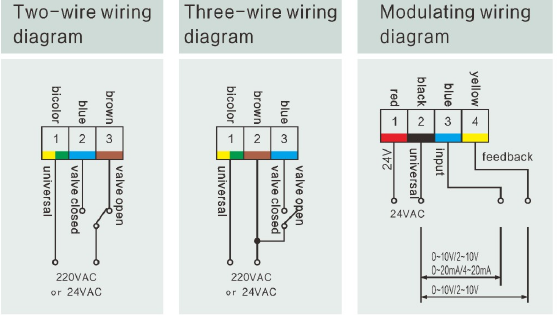

wiring dragram

0-10v Modulating Water Valve With Motorized Bady / 24v Supply 1
