Fan Coil Unit Valve
  • Products Details
Detailed Product Description
Type: Fan Coil Unit,HVAC Systems,Air Conditioner Parts Operating Voltage: 230 VAC
Application: Commercial,Hotel Product Name: High Quality Chilled Water Energy Saving Fan Coil Unit
Material: Copper Type: PICV Valve
High Light:

pressure independent electric regulating valve


electric regulating valve dynamic balance


dynamic balance electric regulating valve

electric balance valve is mainly used in central air-conditioning system or heating system, used to control air-conditioning terminal
equipment or other equipment that needs adjustment and balance control. The actuator controls the opening and closing of the valve by
receiving the signal from the controller, which can realize the on-off of the medium in the pipeline; the balance valve core can ensure that the
system flow is not affected by pressure changes, so that the air-conditioning temperature control is more accurate and without fluctuations, and
the air-conditioning system is improved. Comfort.

dynamic balancing motorized valve integrated dynamic balance valve and adjustable valve, it is available for the temperature control of HVAC air conditioning system's terminal equioment, such as air-conditioning cabinet, new fan group and air processor, it controls the water flow and temperature automatically to save energy rationally and realize intelligent management by it's intelligent module device.
the dymanic lalanceing motorized valve adopts ceresin wax propeller, there is no noise during its working, it has spring reset function, after the power is off, the valve is closed and the running place will be instructed by indication, screw connection makes the installation easier, faster and more convenient. straighe travel and good interchangeability, KVs discrepancy:≤5%. flow value is not influenced by pressure undulation and is not influenced by each other. it saves more 6-20% energy than traditional system. greatly shorten the debugging time and high efficiency running.higher temperature control precision, more comfortable than the traditional type.
diaphragm material:EPDM. stem material: stainledd steel 06Cr19Ni10. valve body and cover material:C3771, Nominal pressure:1.6MPa. working medium:water, fluid temperature -10-95℃. Travel:3mm. DN20,DN25,DN32,DN40,DN50.

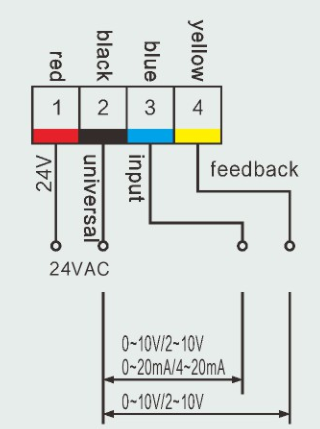

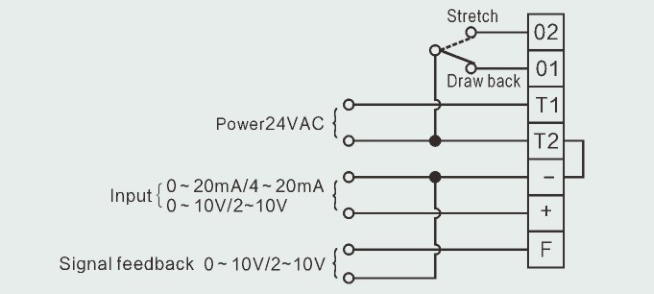

Pressure Independent Dynamic Balance Electric Regulating Valve 0Pressure Independent Dynamic Balance Electric Regulating Valve 1
