Fan Coil Unit Valve
  • Products Details
Detailed Product Description
High Light:

2.5kv motorized ball valve


24v motorised ball valve


1.6mpa motorized ball valve

or ending water way control, the thermostat can control motor, make the valve power/off by motor to make the medium current or disconnected, and make the fan coils blow co control the temperature automatically.

Water proof, dustproof function, leak proofness and tightness.

Short power-on time, energy-efficient, the motor has long using life.

Easy close pressure difference, tight closing.

Direct water flow, KVS value is much larger than common 2 way value.

Soft value opening.

Actuated by one-way motor, rest by spring


Power supply:240VAC,50/60Hz, or 24V is optional

Power:2W torque 2N.m

Nominal pressure:1.6MPa

Running time:40-50s

Working medium: water, fluid temperature 5-95℃

2.5Kv,3.5Kv and 4 Kv, G1/2,G3/4,G1

Ambient temp:0-65℃,10%-90% RH

Available for central air conditioning’s refrigeration or heating system pipe’s opeing or closeing.

The actuator and valve is connected by screw connection way, actuator can be installed next to the wall

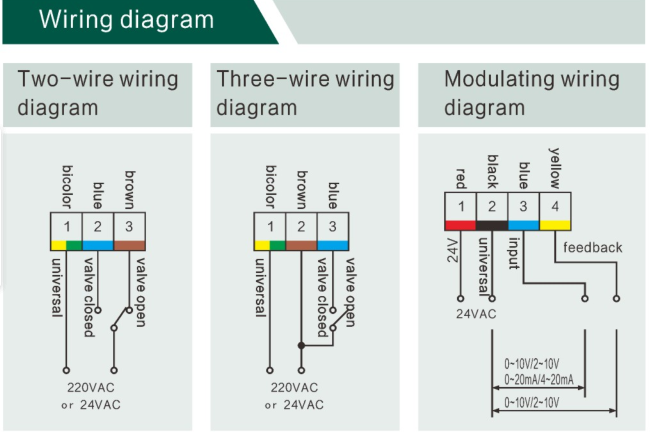

1.6MPa 3 Wired 24v 2.5kv Motorized Ball Valve For Water Heating 0
