Fan Coil Unit Thermostat
A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EKON |
| Model Number: | TF-701 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | USD |
| Packaging Details: | standard carton box |
| Delivery Time: | 25days after getting payment |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/MONTH |
| Type: | Fan Coil Unit | Operating Voltage: | 220V/1P/50HZ |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Application: | FCU/Central Air Conditioning |
| Warranty: | 1 Year | Material: | PC,ABS |
| Color: | White,Customer Requirements | Setting Temperature Range:5~35°C: | 5~35°C |
| Accuracy:: | ±0.5°C | ||
| High Light: | 24 fcu thermostat controller,1P fcu thermostat |
||
Adjustable Temperature 2 pipe Touch screen Fan Coil Unit Thermostat
Description
fan coil thermostat is designed to control Fan and Valves in air conditioner heating/cooling systems
The function is to adjust the room temperature digitally to reach the aim of confort and energy saving.
It is widely to control the terminals of central air-conditioning system in the business, industrial and civil constructions.
Material:PC,ABS
Sensor:NTC,10K
Housing color:White/Black/Customize
Application:FCU/ Central Air Conditionning/fan coil/heater
Accuracy:+-0.5 Celsius Degree
Current Load:3A for 0-10V valve/5A for fan
Screen:Black with white words
Install Box:86*86mm or European 60mm
Communication:WiFi,Modbus,BACnet,keycard
Beautiful Frame CHROME creates elegant life.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.

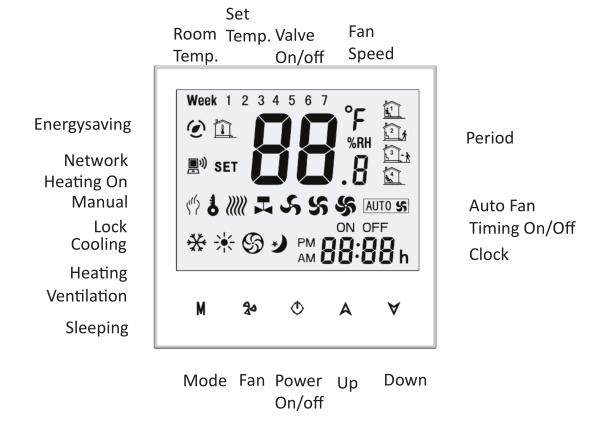

Large screen display with backlight is easy to
read—even in the dark.
Precise comfort control keeps temperature within
0.5°C of the level you set.
Internal and external sensor selectable is
suitable for any place.
Easy installation.
86mm hidden box and european 60mm round
box is selectable.
Technical Data
| Sensor | NTC | Power Supply | 110~240V, 50 ~60Hz |
| Accuracy | ±0.5℃ | Current Load | 3A for valve and 5A for fan |
| Temp. Range | 5 -35℃ | Shell Material | PC+ABS (Fireproof) |
| Power Consumption | <1.5W | Timing error | <1% |
| Installation | 86*86mm or European 60mm round box | Ambient Temp | 0 ~ 45℃,5 ~ 95%RH(Non condensing) |
Install Direction
1. Connect the line of power and load into the terminal. Fix the wall plate into the wall box by a screwdrive;
2. Connect the lined with the LCD board;
3. Connect the LCD board into the wall plate;
Why choose us?
Strong R&D team.
Excellent after-sales service.
Our goal is 100% customer satisfaction
Wide range of customers – businesses, schools, social landlords and householders
Flexible product range to suit your needs
Our products are innovative in design and control
All our products are easy to operate and 100% efficient
All our products come with built-in warranties and extended warranty options for your peace of mind
