• Products Details
Detailed Product Description
Type: Fan Coil Unit,HVAC Systems,Air Conditioner Parts
High Light:

fcu thermostat


digital room thermostat

The touch Screen Thermostat has been developed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp.




Technical Data of your thermostat
Sensor:NTC Accuracy:±0.5℃
Temp. Range:5 -35℃ Power Consumption:<1.5W
Timing error:<1% Power Supply:95~240VAC, 50 ~60Hz
Current Load:5A for fan and 3A for valve
Shell Material:PC (Fireproof)
Installation box:86*86mm or European 60mm
Ambient Temp.:0 ~ 45℃,5 ~ 95%RH(Non condensing)
Storage Temp:-5~ 55℃


Modern desgin similar as a cell phone.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.

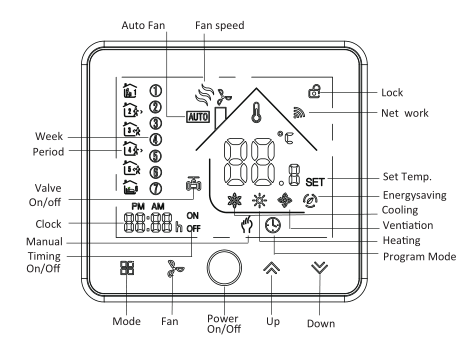

Large screen display with backlight is easy to
read—even in the dark.
Four periods program schedules maximize
comfort and economy.
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
0.5°C of the level you set.
Easy installation.
86mm hidden box and european 60mm round
box is available.

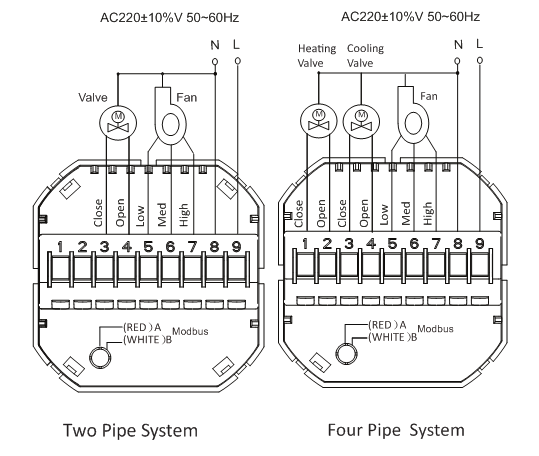

Fireproof Shell Fan Coil Unit Thermostat , LCD Digital Fan Coil Thermostat 0Fireproof Shell Fan Coil Unit Thermostat , LCD Digital Fan Coil Thermostat 1
