Detailed Product Description
Name: MFP-300FM-Q Product: Ceiling Suspended Fan Coil Unit
Cooling Capacity: 17kw Heating Capacity: 25.5kw
Connection Pipe: With 4 Connection Pipe Mobus: Optional
High Light:

ceiling suspended fcu


water cooled fan coil unit

Decorative 4-side Ceiling Suspended Fan Coil Unit, 1750CFM, 2-pipe system, low noise and DC motor, CE certificated


Meco company focus on the R&D and manufacturing of fan coil unit , we are doing OEM for more than 200 famous central air conditioner enterprises in China, now the company is the preferred of OEM manufacture for cassette units in China. At the same time, our products with Meco brand marks was sold successfully to more than 50 countries and regions , such as India, Iran, Bulgaria, Italy, Chile, Mexico, United States and so on.


Decorative 4-side Ceiling Suspended Fan Coil Unit characteristic


Can connect to duct and link with diffuser

All the key parts are easy to maintain from air inlet grille

The models with big volume is suitable for the big place project.

Condensate water drain pump is optional

Fresh air can be put in from outside

Electrostatic dust sanitizer is optional (drained by nature style)

Customizable metal grille air inlet design, easy to fit with the decoration

Quiet running

4-side air flowing, which can uniform temperature distribution in the room.



Specification of decorative 4-side Ceiling Suspended Fan Coil Unit


1. Air flow: 1750CFM,200CMH
2. Cooling capacity 17kw
3. Heating capacty 25.5Kw
4. Working with one fan and one motor
5. BLDC brushless motor higher efficiency
6. Power supply 220V-1-50Hz
7. Two pipe/tube system


Decorative 4-side Ceiling Suspended Fan Coil Unit
Model MFP-300FM-(Q)
Air flow -CMH 3000
Air flow-CFM 1750
Cooling capacity -KW 17
Heating capacty KW 25.5
Testing condition-Cooling Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
Testing condition-Cooling Dry ball 20℃ 50℃ in 40℃ out
Piping Two pipe/tube system
Power supply 220V-1-50Hz or 110V-1-60Hz
Motor type AC motor BLDC brushless optional
Controller 3-speed controller or LED controler is optional
BMS Modbus Ingrated function is optional.



Data sheet for decorative Decorative 4-side Ceiling Suspended Fan Coil Unit


model(2 tube system) MFP-68FM-(Q) MFP-85FM-(Q) MFP-272FM-(Q) MFP-300FM-(Q)
power supply 220V~,50Hz
air volume H m3/h 680 850 2720 3000
M 520 660 2040 2300
L 370 430 1360 1600
static pressure Pa 0 0 0 0
cooling capacity TH H W 3800 4700 15000 17000
BTU/h 12966 14767 47130 53414
SH W 2830 3500 11175 12665
BTU/h 9670 11950 38129 43212
TH M W 3080 3800 12150 13770
SH W 2430 3000 9600 10878
TH L W 2400 2960 9450 10710
SH W 1950 2430 7749 8782
heating capacity H W 5700 7050 22500 25500
M W 4400 5430 17300 19600
L W 3450 4260 13600 15400
noise H 0Pa dB(A) 41 43 53 54
power input H 0Pa W 58 65 180 193
waterflow volume m3/h 0.65 0.81 2.58 2.92
water pressure dropping kPa 22 28 51 58
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26
net dimension drained by pump L×W×H mm 590*590*314 944*944*316
drained by nature 590*590*412 944*944*414
net weight unit kg 20 20 41 41
panel 21.5 21.5 43 43

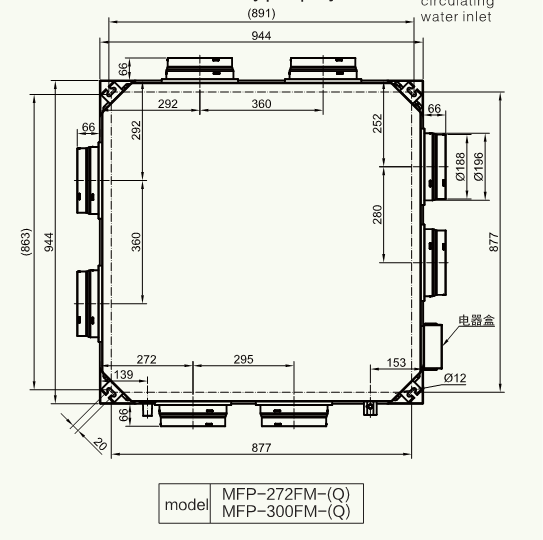

Installing dimension

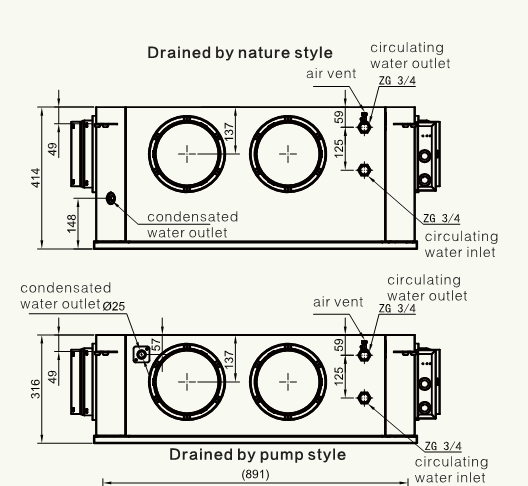

Drained by nature style

Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 0

Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 1


Testing condition:

2-tube system


Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃


Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling


All equipment wiring complies with CE requirementsReliability Features


· Base units are CE certified for EU standards
· All units with auto-restart functions.

Maintenance Features

· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned

Product certification:

Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 2Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 3


Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

fan motor P.C.B reciever Board sensor



fan motor capacitor remote controller wire controller
water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 4Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 5Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 6
Higher Efficiency Electric Fan Coil Unit , Ceiling Mounted Fan Coil Unit 1750CFM 7

Packing and shipping

Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.

Field-Installed optional Accessories:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function

MECO full range of chilled water hydronic water fan coil untis producing now


For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;

For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.

As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.


Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.

There are two options for the build water valve or without build in water valve.


Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!


Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.




chilled water terminal units,cassette water fan coil units with build in water pump  2pipe system




Q:Can you make OEM brand orders with your water fan coil uits?

A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.


Q: How long is your warranty after shipment of the water fan coil units?

A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.

Short time reaction and professional technical support is our key attention.


Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our water fan coil units products have 4 pipe system as optional.


Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.
