Detailed Product Description
Type: Motorized Fan Coil Valve For Heating Water Model: DRF-01
Power Supply: 230-50/60Hz Logic: Normally Closed
IP Standard: IP44 Opening: Two Way Or Three Way
High Light:

2 way motorised valve

,

3 way motorised valve

Three way four connections compact sized Motorized fan coil unit valve 5-90℃ water temperature range

EKON motorized fan coil unit valve consists of on/off type or 3-point type actuator ,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Application
HVAC system, heating system, Water treatment system, Industrial equipment


Features of electric fan coil unit valve:

  1. No noise quied design.
  2. Easy installation.
  3. Small KVs discrepancy(≤5%)
  4. Good stability. KVs will not change with differentPressure.
  5. Energy save. It saves more 6-20% energy than traditional system.
  6. High efficiency.
  7. Comfort.

Indoor Fan Coil Unit Valve 5-90℃ Water Temperature Range Three Way Four Connections 0
Technical specification for fan coil unit valve Actuator
Power supply: AC 230V(220V)
Power consumption: 2VA
Thrust:110N
Stroke:3mm
Full travel time:3-5min
Connection: M30×1.5mm screw
Ambient temprature: -5 to 60°C
Shell material: fire proof PC(Inner material is fire proof PA66)
Shell protection grade:IP 44

Material for the fan coil unit valve:
Valve body: forged brass
Valve stem: stainless steel
O-sealing-ring: NBR(nitrile butadiene rubber)
Inner parts: brass, stainless steel

Life time for our fan coil unit valve:
More than 10 years.



This compacted design fan coil unit valve suitable for our ultra thin type floor mounted fan coil units
Indoor Fan Coil Unit Valve 5-90℃ Water Temperature Range Three Way Four Connections 1

Indoor Fan Coil Unit Valve 5-90℃ Water Temperature Range Three Way Four Connections 2

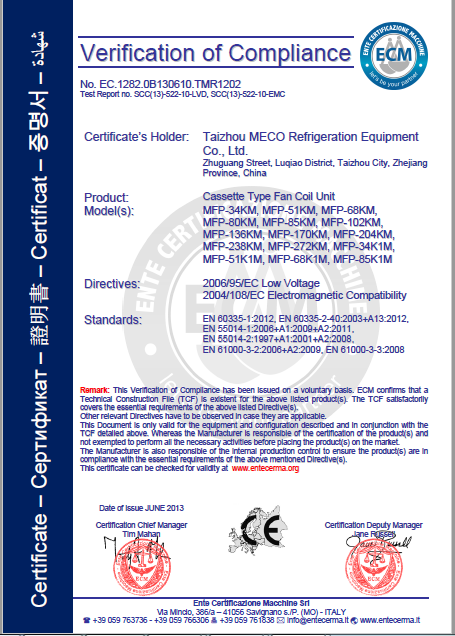

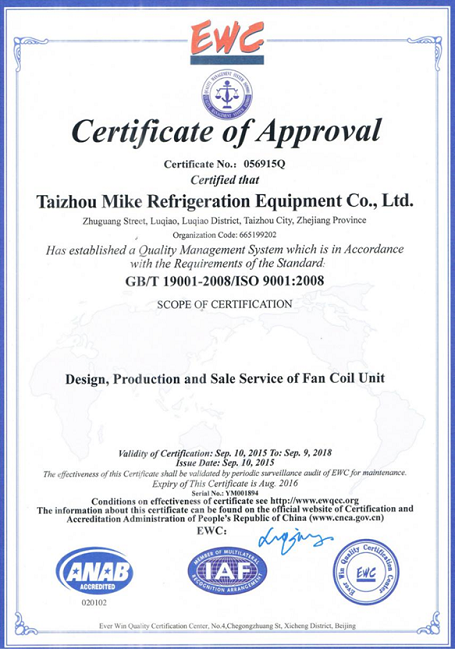

Certifications for MECO floor standing fan coil units :
600CFM 2 pipe system, high wall fan coil unit , 5.4kw wall mounted fan coil units 1.5TR 1020m3/h600CFM 2 pipe system, high wall fan coil unit , 5.4kw wall mounted fan coil units 1.5TR 1020m3/h



Standard Warranty for MECO floor mounted fan coil units:

18 months whole units warranty since delivery date.

supply 1% free parts with shipment.

fan motorP.C.Breciever Boardsensor

trans

former

fan motor capacitorremote controller
installation kitsfan swing motordrain pipepanelfilter

Packing and shipping of floor mounted fan coil units

Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.



Field-Installed optional Accessories for floor mounted fan coil units water fan coil units:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function


MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.

Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.

Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!

Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.

Now we are seeking the partners in below countries for brand distributors or OEM cooperation for our full range of fan coil units and accessories related to Fan coil units:
USA market, Canada market, Mexico Market;
Brazil market, Argentina market, Chile market;
Vietnam market, Malaysia market, Indonisia market;
Iraq market, KSA market, Qatar market;
Italy market, Spain market, Germany market,Uk market.

Wish to hear from you and discuss about the business cooperaiton mutally.

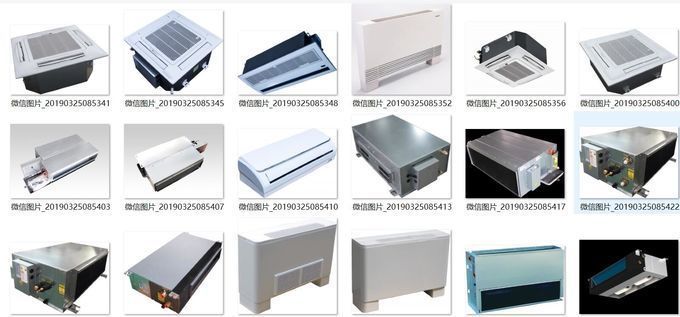

chilled water terminal units,cassette water fan coil units with build in water pump 2pipe system



FAQ.
Q:Can you make OEM brand orders with your water fan coil uits and fan coil unit valve?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty after shipment of the water fan coil units and fan coil unit valve?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
