Ceiling Suspended Fan Coil Unit
  • Products Details
Detailed Product Description
Model Number: DC-MFP-238WA4-B Type: Ceiling Suspended Fan Coil Unit
Rated Cooling Capacit: 12.8Kw Rated Heating Capacity: 8Kw
Air Volume: 1400m/h3 Size: 1824×465×235
High Light:

ceiling suspended fcu


water cooled fan coil unit

Ceiling Suspended Fan Coil Unit, 1400CFM, air return box and filter optional, 4-pipe system, DC motor, built-in pump
Meco company focus on the R&D and manufacturing of fan coil unit , we are doing OEM for more than 200 famous central air conditioner enterprises in China, now the company is the preferred of OEM manufacture for cassette units in China. At the same time, our products with Meco brand marks was sold successfully to more than 50 countries and regions , such as India, Iran, Bulgaria, Italy, Chile, Mexico, United States and so on.
The Ceiling Suspended Fan Coil Units mainly composed of a centrifugal fan, a coil heat exchanger, etc., and is a terminal device of a central air conditioning system. It is widely used in hotels, restaurants, factories, hospitals, exhibition halls, shopping malls and office buildings and other multi-room or large-space industrial and civil buildings fan coil unit occasions to meet the requirements of cooling and dampness, heating, etc., for people to create a fresh, quiet, spring and summer work and living environment.

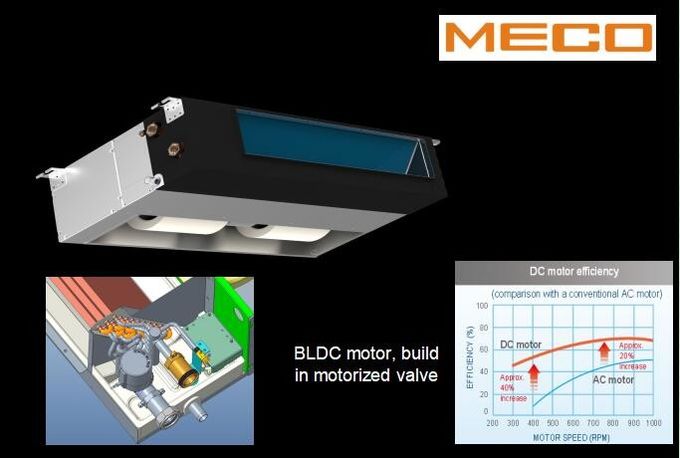

4 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 0

Main features
Low noise
The unit is optimized by matching, the fan is passed by one by one to ensure that the unit works quietly and efficiently
No condensate
The unit condenses water plate for the whole stamping, no welds, solder joints, the hard - burning insulation materials in the whole paste in the water dish, eliminate dripping water and condensation phenomenon.
Maintenance convenient
Motor used in high precision ball bearing with high quality, do not need to refuel, self-lubrication, low noise, long life, motor central axis are the conditioning and the surface corrosion resistance, durable.
Energy efficient
Horizontal fan coil unit is made of high quality copper tube heat exchanger, match with high ripple hyperbolic hydrophilic fin that open a window, the use of advanced mechanical non-stretch pipe process, in high thermal efficiency, heat transfer enhancement with large air volume, low noise fan, the maximum heat transfer efficiency of generating unit,

Specifications for Ceiling Suspended Fan Coil Unit
1. Air flow 1400CFM, 2380CMH
2. Cooling capacity 12.8Kw Heating capacty 8Kw
3. Static pressure 12Pa, 30Pa, 50Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 235mm only.
8. Air return direction from back or bottom optional.
9. Plenum and filter is optional
10. Thermostat or valve is optional.


Model DC-MFP-238WA4-B
Air flow-CMH 2380
Air flow-CFM 1400
Cooling capacity -W 12800
Heating capacty W 8000
Unit net dimentions 1824×465×235
Power supply 220V,50Hz,1Ph
Piping Two pipe/tube system
Air return type Rear return or bottom return optional.
Static pressure 12Pa, 30Pa, 50Pa optional.
Return box&filter Plenum box or filter is optional
Pipe direction Left or right optional and changable at site
Thickness 235mm
Motor type AC motor BLDC brushless optional
Thermostat 3 speed, 0-10Vmodulating thermostat, or Modbus thermostat optional.
Valve Two way valve or three way valve optional.
Testing condition-Cooling Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
Testing condition-Cooling Dry ball 20℃ 50℃ in 40℃ out


Testing condition for Ceiling Suspended Fan Coil Unit:

2-tube system
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.
Maintenance Features
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned

Product certification:
4 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 14 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 2

Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

fan motor P.C.B reciever Board sensor



fan motor capacitor remote controller wire controller
water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

4 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 34 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 44 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 5
4 Pipe System Ceiling Suspended Fan Coil Unit For Hotel 1400CFM Long Lifespan 6

Packing and shipping
Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.

Field-Installed optional Accessories:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function

MECO full range of chilled water hydronic water fan coil untis producing now.

For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;

For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.

As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.


Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.

There are two options for the build water valve or without build in water valve.


Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!


Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.


Now we are seeking the partners in below countries for brand distributors or OEM cooperation for our full range of fan coil units and accessories related to Fan coil units:

USA market, Canada market, Mexico Market;

Brazil market, Argentina market, Chile market;

Vietnam market, Malaysia market, Indonisia market;

Iraq market, KSA market, Qatar market;

Italy market, Spain market, Germany market,Uk market.


Wish to hear from you and discuss about the business cooperaiton mutally.




chilled water terminal units,cassette water fan coil units with build in water pump  2pipe system



Q:Can you make OEM brand orders with your water fan coil uits?

A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.


Q: How long is your warranty after shipment of the water fan coil units?

A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.

Short time reaction and professional technical support is our key attention.


Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our water fan coil units products have 4 pipe system as optional.


Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.
