Fan Coil Unit Thermostat
VR
  • Products Details
Detailed Product Description
Type: Fan Coil Unit Thermostat Control: Fan Motor And Valve
BMS: Optional With RS485 Display: Touch Screen Display
Application: 2 Pipe Type Fan Coil Unit Thermostat Color: Black Or White Color Optional
High Light:

fcu thermostat

,

digital room thermostat

Fan coil unit thermostat for 2 pipe FCU-Room thermostat for chilled water fan coil application TF-703Series

BRIEF INTRODUCTION FOR FAN COIL UNIT THERMOSTAT MODEL TF-703
TF-703 series Touch Screen Room Thermostat-fan coil unit thermostat.
Microprocessor based thermostat with LCD display.
Designed to control the fans and two wires moterized valves for chilled water fan coil unit applications.

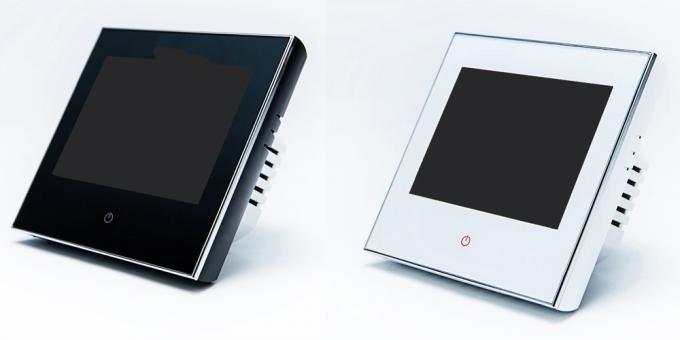

Room Chilled Water Fan Coil Unit Thermostat With BMS Modbus RS485 TF-703 Series 0

Detailed Product Description for TF-703 fan coil unit thermostat

Mode:Cool, Heat And Vent.Temp:Room Temperature Setting
Protection:Low Temperature ProtectionBack Light:Backlight Function Available
Remote:Remote Control (Optional)


Room Chilled Water Fan Coil Unit Thermostat With BMS Modbus RS485 TF-703 Series 1

Room Thermostat for fan coil unit control TF-703 series
MAIN FEATURES
1. Negative black screen with white color display.
2. Modbus RS485 RTU optional;
3. Smart phone App WIFI remote control optional;
4. Fan coil and Floor Heaing both available;
5. Hidden 86mm box and European 60mm round box both available.
6. Amazon Echo or Google Home accessable.
7. Temperature for ℃ & ℉ is changeable.
8. Auto restart function available.
9. 5+2 six periods programmable maximize comfort and economic.

TECHNICAL DATA  FOR FAN COIL UNIT THERMOSTAT MODEL TF-703
Sensor:NTC
Accuracy:±0.5℃
Temp. Range:5 -35℃
Power Consumption:<1.5W
Timing error:<1%
Power Supply:110~240V, 50 ~60Hz
Current Load: Induction for fan: 3A; Resistive for fan: 5A
Shell Material:PC (Fireproof)
Dimension:86x86x13.3mm
Installation box:86*86mm or European 60mm
Ambient Temp.:0 ~ 45℃,5 ~ 95%RH(Non condensing)
Storage Temp:-5~ 55℃

Packaging & Shipping FOR FAN COIL UNIT THERMOSTAT MODEL TF-703
1.Port of Loading: Ningbo, China
2.Standard Export Packaging: 50 PCS/CTN
3.Shipping Way Avaliable: By Express Delivery / Air / Sea


FAQ
Q1. Can I have a sample order for wifi thermostat?
A: Yes, we welcome sample order to test and check quality. More detail please contact with usdirectly.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit for wifi thermostat?
A: 50pcs. 10pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, TNT or by air or by sea. It usually takes 3-5 days to arrive.

Airline and sea shipping is also optional. Airline need 3-6 days and sea shipping need 20-35 days.
Q5. How to proceed an order for wifi thermostat?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on wifi thermostat?
A: Yes. When quantity is more than 200 pcs, your logo could be printed on the thermostat and app.
Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 18 months warranty to our products.

Q8: How to deal with the faulty?
A: Your thermostat carries an 18 month warranty from date of purchase. Service outwith the warranty period may incur a charge.

Q9. Can you do OEM and ODM for us?
A: Yes. We are professional in provide OEM and ODM service.



Price Terms︰FOB Ningbo
Payment Terms︰TT
Packing︰Standard export box
Lead Time︰With in 15days for order below 200pcs
Standards Certificate︰CE,CCC,ISO
BMS-RS485 / BACnet︰no
Backlight color︰white standard, blue optional
Smart phone App WIFI control︰no
0-10V motorized Valve︰no
24Vac power supply︰no
Fan logic after reach Set temp︰stop or run in low speed
Sensor Internal or External︰Internal
Motorized Valve Wiring︰2 wires
Auto restart Memory function︰yes
Optional Color for thermostat︰white or black
