Detailed Product Description
Model Number: MFP-68WA-B Type: Horizontal Fan Coil Unit
Rated Cooling Capacit: 4KW Rated Heating Capacity: 6.25KW
Air Volume: 680m3/h Size: 864×492×252
High Light:

hvac fan coil unit

,

blower fan coil unit

2-tube Horizontal Fan Coil 400CFM,  CE certificated, air return box and filter optional





Model MFP-68WA-B
Air flow-CMH 680
Air flow-CFM 400
Cooling capacity -W 4000
Heating capacty W 6250
Unit net dimentions 864×492×252
Power supply 220V,50Hz,1Ph
Piping Two pipe/tube system
Air return type Rear return or bottom return optional.
Static pressure 12Pa, 30Pa, 50Pa optional.
Return box&filter Plenum box or filter is optional
Pipe direction Left or right optional and changable at site
Thickness 235mm
Motor type AC motor BLDC brushless optional
Thermostat 3 speed, 0-10Vmodulating thermostat, or Modbus thermostat optional.
Valve Two way valve or three way valve optional.
Testing condition-Cooling Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
Testing condition-Cooling Dry ball 20℃ 50℃ in 40℃ out

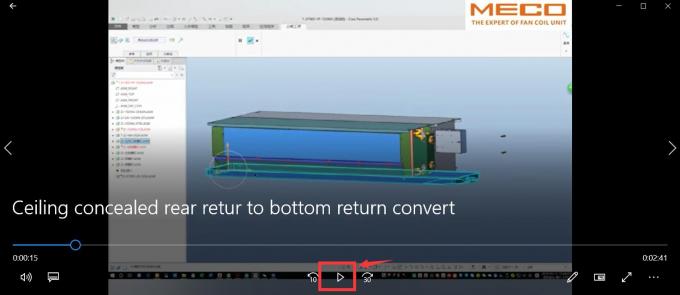

Ceiling concealed rear retur to bottom return convert

400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 0

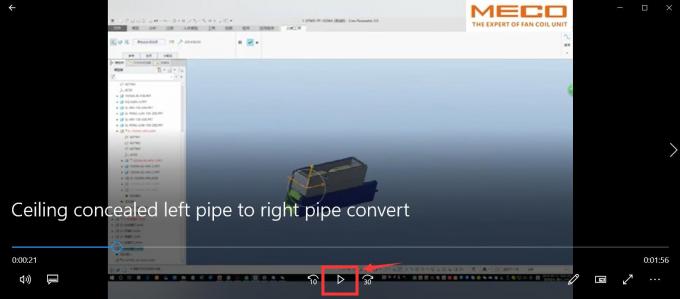

Ceiling concealed left pipe to right pipe convert

400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 1


Horizontal  fan coil unit has ISO 9001 and CE certification, 18 months warranty. The slim type ceiling conceal duct fan coil unit have 5 different models from 51WA to 136WA. EC/DC motor is optional.


Horizontal fan coil unit, with cross flow fan, it features low noise, stable operation, high efficiency, good looking appearance, slim body and various operation modes to be selected. Furthermore, long distance monitoring and other control functions are available. It is widely used in office, hotel and villa.

It has an elegant and novel appearance with automatic drainage and can be installed on the floor or under the ceiling. With the features of easy and flexible installation, wide range and long-distance air supply, good performance, various control functions and slim body, it is especially applicable to the hotel, office, meeting room with low space room.


Main features

1) Compact structure design with thickness of 260mm only to save space;
2) Low noise with stable running;
3) The motor can be dismantled from the return outlet for maintains at the season changing period;
4) Fresh air intake can be pre-made in return air box;
5) Condensed water tray can be extended, if required, to ensure collecting the water and it can be made of stainless steel or galvanization steel plate;
6) Four-pipe type is available for consideration.




Characteristic

1. Low noise.
2. Easy installation.
3. Special design of air filter.
4. Power supply: 220v,50hz/60hz, and 1 ph depends on the different country.
5. Application: Industry, hotel, commercial building, etc.
6. Function: Cooling and heating.
7. Test condition for rated refrigerating output of fan coil unit.




Specifications for Horizontal Fan Coil Unit :

1. Air flow 400CFM, 680CMH
2. Cooling capacity 4Kw Heating capacty 6.25Kw
3. Static pressure 12Pa, 30Pa, 50Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 235mm only.
8. Air return direction from back or bottom optional.
9. Plenum and filter is optional
10. Thermostat or valve is optional.





Testing condition:


2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling


4-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC/50ºC




All equipment wiring complies with CE requirementsReliability Features



· Base units are CE certified for EU standards
· All units with auto-restart functions.

Maintenance Features
· Integrated Condensate Water drain Pump
· With Built-in Overflow Safety Devices
· Reusable wire framed filters can be vacuum cleaned



Product certification:

400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 2400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 3




Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller wire controller
water level switch fan drain tray swing motor drain pipe panel filter corner board of panel


400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 4400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 5400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 6
400CFM Built - In Pump Horizontal Fan Coil Unit Compact Structure 260mm Thickness 7



Packing and shipping

Normally we use carton packing. The carton box printed with our MECO brand and unique color and pattern. We also have strong packing as optional. Depends on customers needs, we have crates, pallets, or honeycomb box etc. Our FOB port is NINGBO, China port.



Field-Installed optional Accessories:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function



FAQ.
Q:Can you make OEM brand orders?
A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty?
A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
