• Products Details
Detailed Product Description
Model Number:: MFP-408HAW Type:: High ESP Ducted Fan Coil Unit
Rated Cooling Capacity:: 21.6KW Rated Heating Capacity:: 32.4KW
Air Volume:: 4080CMH Or 2400CFM Size:: 1640*750*425
High Light:

ductable fan coil unit


air conditioning fan coil unit

Ducted high ESP chilled water duct fan coil unit, 21.6Kw, 2400CFM, 2-pipe water fan coil unit


Product Application


The fan coil unit is mainly composed of a centrifugal fan, a coil heat exchanger, etc., and is a terminal device of a central air conditioning system. It is widely used in hotels, restaurants, factories, hospitals, exhibition halls, shopping malls and office buildings and other multi-room or large-space industrial and civil buildings air-conditioning occasions to meet the requirements of cooling and dampness, heating, etc., for people to create a fresh, quiet, spring and summer work and living environment.


Products specification of High Static Pressure Duct Type Fan Coil Unit


Specifications for High static pressure ducted type fan coil unit
1. Air flow 2400CFM, 4080CMH
2. Cooling capacity  21.6Kw Heating capacty 32.4Kw
3. Static pressure 50Pa-120Pa is optional.
4. Two pipe/tube system
5. AC motor , BLDC brushless motor optional
6. Left pipe or right pipe is optional.
7. Thickness of the unit is 425mm only.
8. Thermostat or valve is optional.


Model MFP-408HA
Air flow-CMH 4080
Air flow-CFM 2400
Cooling capacity -W 21600
Heating capacty W 32400
Unit net dimentions 1640*750*425
Power supply 220V,50Hz,1Ph
Piping Two pipe/tube system
Air return type Rear return or bottom return optional.
Static pressure 50Pa - 120Pa is optional.
Return box&filter Plenum box or filter is optional
Pipe direction Left or right optional and changable at site
Thickness 425mm
Motor type AC motor BLDC brushless optional
Thermostat 3 speed, 0-10Vmodulating thermostat, or Modbus thermostat optional.
Valve Two way valve or three way valve optional.
Testing condition-Cooling Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
Testing condition-Cooling Dry ball 20℃  60℃ in 50℃ out




Main Features


1. Heat exchanger with blue coated hydrophilic aluminum and high efficient copper tubes.
2. Easy operation and energy saving.
3. Low noise with stable performance.
4. High static pressure 0pa, 30pa, 50pa.
5. Air return box and air filter is optional.
6. CE Certificate.


Products Feature and details


1. Our fans are made by international professional fan manufacture with stable and reliable quality,routine dynamic balance precise debug. Fan runs stably and quietly.


2. The unit can produce 100~120pa static pressure which can match long distance air duct.


3. High quality purple copper, with high diathermanous efficiency, suits to use in high building. Distance of fins is improved by computer emulation optimum and designed according experimental static, supply best heat exchange area, smooth airflow and high-efficient heat exchange.


4. High quality Water collection tray

Using high quality panel, with plastic sprayed on the surface, therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique, there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.


Installing dimension


dimension L×W×H mm 1200*750*420
weight kg 55



Product certification:

Ducted High ESP Ceiling Mounted Chilled Water Fan Coil Unit 21.6Kw 2400CFM 0Ducted High ESP Ceiling Mounted Chilled Water Fan Coil Unit 21.6Kw 2400CFM 1



Testing condition:

2-tube system


Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃


Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling




All equipment wiring complies with CE requirementsReliability Features


· Base units are CE certified for EU standards

· All units with auto-restart functions.


Maintenance Features


· Reusable wire framed filters can be vacuum cleaned


Field-Installed optional Accessories:

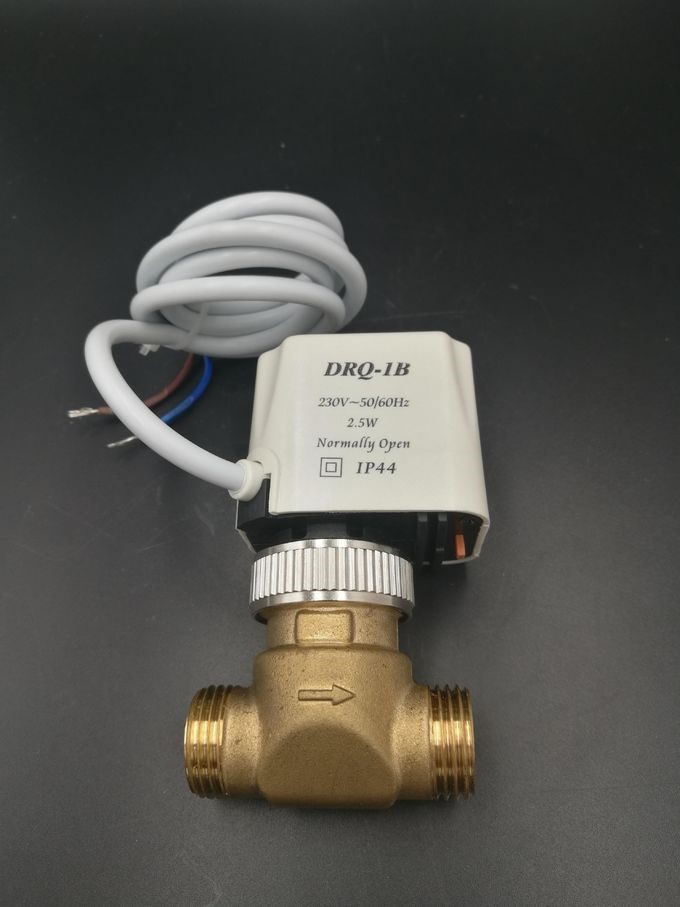

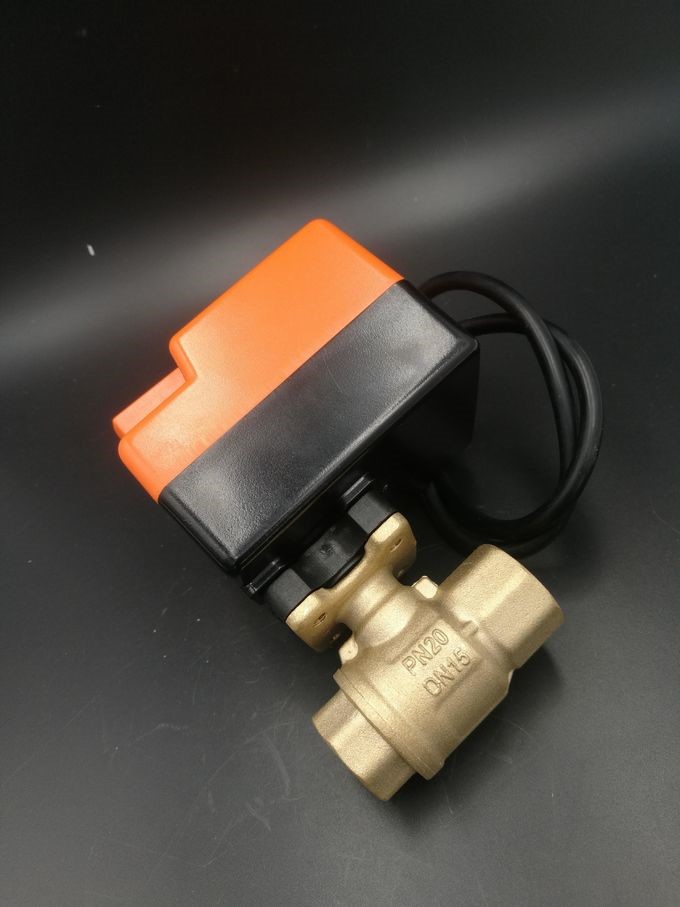

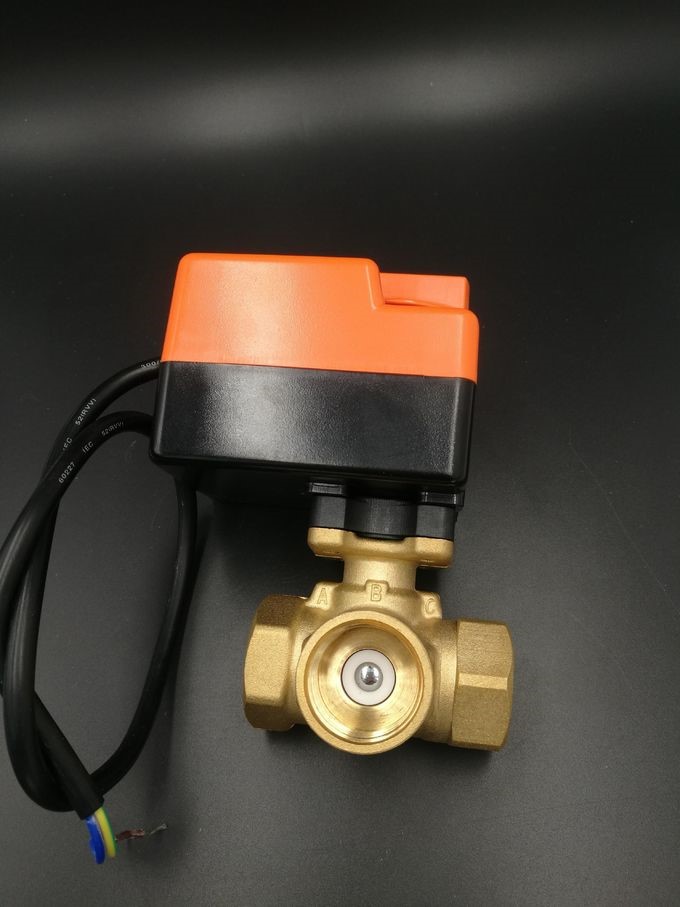

· 2 & 3 way valves and with the actuators

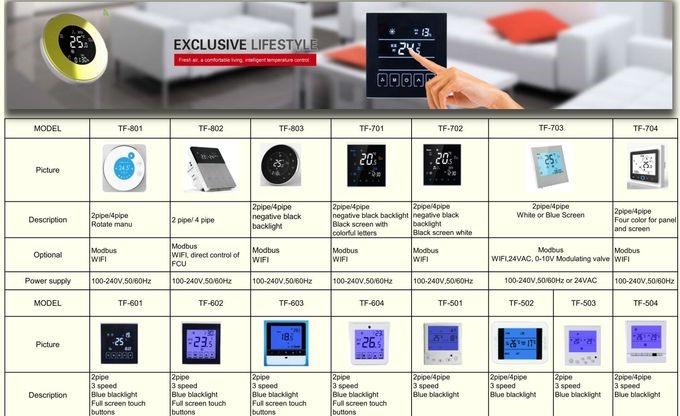

· Wall Mounted Mechanical or Digital Thermostat

· Wall Mounted Digital Thermostat with Modbus function

· Wall Mounted Digital Thermostat with WIFI control function


Ducted High ESP Ceiling Mounted Chilled Water Fan Coil Unit 21.6Kw 2400CFM 2Ducted High ESP Ceiling Mounted Chilled Water Fan Coil Unit 21.6Kw 2400CFM 3Ducted High ESP Ceiling Mounted Chilled Water Fan Coil Unit 21.6Kw 2400CFM 4

Ducted High ESP Ceiling Mounted Chilled Water Fan Coil Unit 21.6Kw 2400CFM 5




Q:Can you make OEM brand orders?

A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.


Q: How long is your warranty?

A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.


Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our products have 4 pipe system as optional.


Q: Do you have selection software for your FCU?

A: Not yet now. But we can select the units for you based on your given selection request.
