A professional fan coil unit manufacture in China.
Language
A professional fan coil unit manufacture in China.
| Place of Origin: | Taizhou, China |
|---|---|
| Brand Name: | MECO or OEM |
| Certification: | CE,ISO9001 |
| Model Number: | MFP-68KM4-MK1 , 4 pipe system |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | to be discussed |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month. |
| Cooling Capacity: | 3.7kw | Heating Capacity: | 3.75kw |
|---|---|---|---|
| Air Flow: | 470CFM | Unit Size: | 590x590x242mm |
| Piping: | Four Pipe System | Water Pump: | Build In Water Pump |
| Finger Protect: | Finger Protect Grill Optional | Drain Tray: | Extra Bigger Drain Tray Optional |
| High Light: | ceiling suspended fcu,ceiling mounted fan coil unit |
||

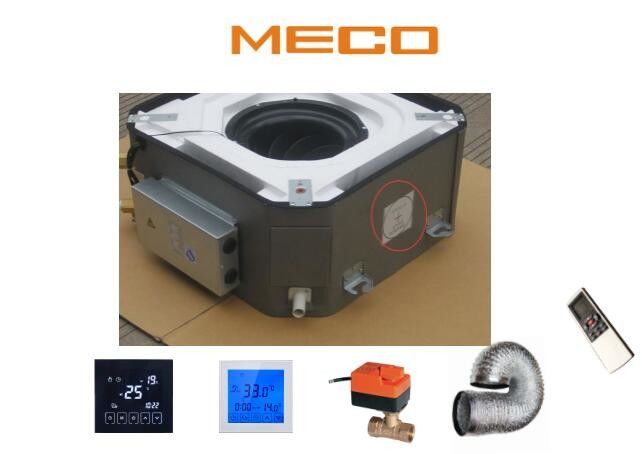

400CFM 4 pipe system Cassette type fan coil unit, Chilled water Ceiling suspended fan coil unit
Four way chilled water Ceiling suspended fan coil unit is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.Ceiling suspended fan coil unitis used to meet the requirements of cooling, dehumidifier, heating and so on. MECO start to produce the first Ceiling suspended fan coil unit in 2001, and ceiling suspended Cassette fan coil unit always a hard point for us.After nearly 20 years’ experience accumulation, we have completely models of M style Ceiling suspended fan coil unit and BLDC motor type cassette fan coil unit.
The M style cassette Ceiling suspended fan coil unit is our new model having functions and featurs as below:
1, Ceiling suspended fan coil unit with ultra-thin stealth design
2, The body can be hidden in the ceiling, without occupying indoor useful space.
3, Good air supply direction
4, Cassette fan coil unit with high efficient cross flow fan, ensure the flow to four directions.
5, Cassette type fan coil unit with wireless remote control
6, The temperature in the room can be set accurately, so as to save energy and increase the degree of comfort.
7, Cassette type fan coil unit with novel structure, ultra low noises
8, The front panel of the shell, air filter, electrical components, fan, and fan motor can be easily removed or replaced.
New Features for Ceiling suspended fan coil unit
| M style 4-way water cassettes Ceiling suspended fan coil unit 4 pipe system | |
 |
|
| Model | MFP-68KM4-MK1 |
| Air flow -CMH | 650 |
| Air flow-CFM | 400 |
| Cooling capacity -KW | 3.7 |
| Heating capacty KW | 3.75 |
| Testing condition-Cooling | Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out |
| Testing condition-Cooling | Dry ball 20℃ 50℃ in 40℃ out |
| Piping | Four pipe/tube system |
| Power supply | 220V-1-50Hz or 110V-1-60Hz |
| Drain pump | Build in type |
| Panel dimension | Cassette panel size 1050x1050mm |
| Motor type | AC motor BLDC brushless optional |
| Electrical box | Build in electrical box is optional. |
| BMS | Modbus Ingrated function is optional. |
Different capacities for M style Ceiling suspended fan coil unit 2 pipe systems:
|
MODEL Casstte fan coil unit 2 pipe system |
air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT |
| m3/h | W | W | W | |
| MFP-34KM-Q1M | 380 | 2000 | 3100 | 40 |
| MFP-51KM-Q1M | 550 | 3000 | 4700 | 50 |
| MFP-68KM-Q1M | 680 | 3800 | 5900 | 58 |
| MFP-80KM-Q1M | 780 | 4200 | 6500 | 60 |
| MFP-85KM-Q1M | 880 | 4900 | 7600 | 70 |
| MFP-102KM-Q1M | 1050 | 5800 | 9000 | 95 |
| MFP-130KM-Q1M | 1300 | 7000 | 10900 | 125 |
| MFP-136KM-Q1M | 1380 | 7500 | 11600 | 130 |
| MFP-153KM-Q1M | 1550 | 8100 | 12200 | 145 |
| MFP-170KM-Q1M | 1750 | 9800 | 15200 | 160 |
| MFP-204KM-Q1M | 2050 | 11000 | 17100 | 190 |
| MFP-238KM-Q1M | 2200 | 12000 | 18600 | 210 |
| MFP-272KM-Q1M | 2720 | 15000 | 24000 | 230 |
Different capacities capacities for M style Ceiling suspended fan coil unit 4 pipe systems:
| MODEL Casstte fan coil unit 4 pipe system | air volume | COOLING CAPACITY | HEATING CAPACITY | POWER INPUT |
| m3/h | W | W | W | |
| MFP-34KM4-Q1MM1 | 360 | 1950 | 1950 | 40 |
| MFP-51KM4-Q1MM1 | 520 | 2950 | 3000 | 50 |
| MFP-68KM4-Q1MM1 | 650 | 3700 | 3750 | 58 |
| MFP-80KM4-Q1MM1 | 740 | 4100 | 4150 | 60 |
| MFP-85KM4-Q1MM2 | 840 | 4800 | 4850 | 70 |
| MFP-102KM4-Q1MM2 | 1000 | 5700 | 5750 | 95 |
| MFP-130KM4-Q1MM2 | 1240 | 6850 | 6950 | 125 |
| MFP-136KM4-Q1MM3 | 1320 | 7350 | 7400 | 130 |
| MFP-153KM4-Q1MM3 | 1480 | 7940 | 7780 | 145 |
| MFP-170KM4-Q1MM3 | 1660 | 9600 | 9700 | 160 |
| MFP-204KM4-Q1MM3 | 1950 | 10800 | 10900 | 190 |
| MFP-238KM4-Q1MM3 | 2090 | 11750 | 11850 | 210 |
| MFP-272KM4-Q1MM4 | 2090 | 13200 | 13500 | 210 |
Testing condition for Ceiling suspended fan coil unit:
| 2-tube system | 4-tube system |
|
Cooling Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC Entering/out water temperature: 7ºC/ 12℃ |
Cooling Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC Entering/out water temperature: 7ºC/ 12ºC |
|
Heating Entering air temperature: 20ºC Entering water temperature: 60ºC, Same water flow rate as for the cooling |
Heating Entering air temperature: 20ºC Entering/out water temperature: 60ºC/ 50ºC |
Notes:
1. Both AC or BLDC motor available.
2. Both 50HZ or 60HZ power supplies available.
Certifications for MECO cassette fan coil units:
| fan motor | P.C.B | reciever Board | sensor |
trans former |
fan motor capacitor | remote controller | wire controller | drain pump | water level switch | fan | drain tray | swing motor | drain pipe | panel | filter | corner board of panel |
Packing and shipping
Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.
Field-Installed optional Accessories for water fan coil units:
· 2 & 3 way valves and with the actuators
· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function
MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.
Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.
Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!
FAQ.
Q:Can you make OEM brand orders with your water fan coil uits?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.
Q: How long is your warranty after shipment of the water fan coil units?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.
Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.
Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
