Cassette Fan Coil Unit
VR
  • Products Details
Detailed Product Description
Cooling Capacity: 5.8Kw Heating Capacity: 9.0Kw
Air Flow: 600CFM Motor Type: AC Motor
Display Type: Digital Display Water Pump: Build In Water Pump
Electrical Box: Outside/Build In Optional Fresh Air Hole: Standard Available
Power Supply: 110/220V 1Ph 50/60Hz Certification: CE, ISO, Rohs
Modbus: Optional Auto Restart: Optional
Finger Protect: Finger Protect Grill Optional Drain Tray: Extra Bigger Drain Tray Optional
High Light:

600CFM Cassette Fan Coil Unit

,

5.8Kw Cassette Fan Coil Unit

M style CE certified Hydronic cassette fan coil unit with build in water pump capacity 600CFM



Specifications for hydronic four way cassette fan coil model MFP-102KM-(Q)MM2:

1. Air flow 600CFM,1020CMH

2. Cooling capacity 5800W

3. Heating capacty 9000W

4. Two pipe/tube system

5. With build in water pump

6. Power supply 220V-1-50Hz/60Hz

7. Panel size 850x850x40mm



  Cassette Type FCU Model No.
2 pipe system MFP-102KM-(Q)MM2 220V-1-50Hz/60Hz
Cooling Capacity
Testing item Capacity-W At Fan speed Air Volume CMH
Total Capacity 【w】 5800 High Speed 1050
Sensible Capacity【w】 4250
Total Capacity 【w】 4950 Medium Speed 840
Sensible Capacity【w】 3500
Total Capacity 【w】 4000 Low Speed 630
Sensible Capacity【w】 2800

Heating Capacity
Testing item Capacity-W At Fan speed Air Volume CMH
Total Capacity 【w】 9000 High Speed 1050
Total Capacity 【w】 7650 Medium Speed 840
Total Capacity 【w】 6050 Low Speed 630

Entering air temperature Cooling Mode Entering air temperature2 Heating Mode
Dry ball Temp 【℃】 27.0 Dry ball Temp 【℃】 20
Wet ball Temp 【℃】 19.5
Inlet water temp 【℃】 7.0 Inlet water temp 【℃】 50
Outlet water temp 【℃】 12.0 Outlet water temp 【℃】 40

Item data Item2 Data2
Rated Power input 【 w】 40.0 Unit dimension L【mm】 592
waterflow volume 【m3/h】 0.34 Unit dimension W【mm】 592
water pressure dropping 【kPa】 11.0 Unit dimension H【mm】 242
Connection pipe Dia【Inch】 ZG3/4" Panel dimension L【mm】 650
Static pressure【Pa】 0.0 Panel dimension W【mm】 650
Water drain pipe Dia 【mm】 ¢26 Panel dimension H【mm】 40

Packing data
Unit dimension L【mm】 710 Panel dimension L【mm】 710
Unit dimension W【mm】 690 Panel dimension W【mm】 710
Unit dimension H【mm】 275 Panel dimension H【mm】 80
Loading QTY 40HQ/40GP/20GP 370/320/160 PCS
Operating limits Water inlet temperature: 5-80°C.
Room air temperature: 6-40°C.
Relative humidity: 15-75%.
Maximum exchanger pressure: 800 kPa (81,5 mc.a.).
Power supply voltage: 230 V ±10%.

Full ranges of capacities we have for M style cassette fan coil unit:

MODEL air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM-Q1M 380 2000 3100 40
MFP-51KM-Q1M 550 3000 4700 50
MFP-68KM-Q1M 680 3800 5900 58
MFP-80KM-Q1M 780 4200 6500 60
MFP-85KM-Q1M 880 4900 7600 70
MFP-102KM-Q1M 1050 5800 9000 95
MFP-130KM-Q1M 1300 7000 10900 125
MFP-136KM-Q1M 1380 7500 11600 130
MFP-153KM-Q1M 1550 8100 12200 145
MFP-170KM-Q1M 1750 9800 15200 160
MFP-204KM-Q1M 2050 11000 17100 190
MFP-238KM-Q1M 2200 12000 18600 210
MFP-272KM-Q1M 2720 15000 24000 230

Testing condition:

2-tube system 4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.

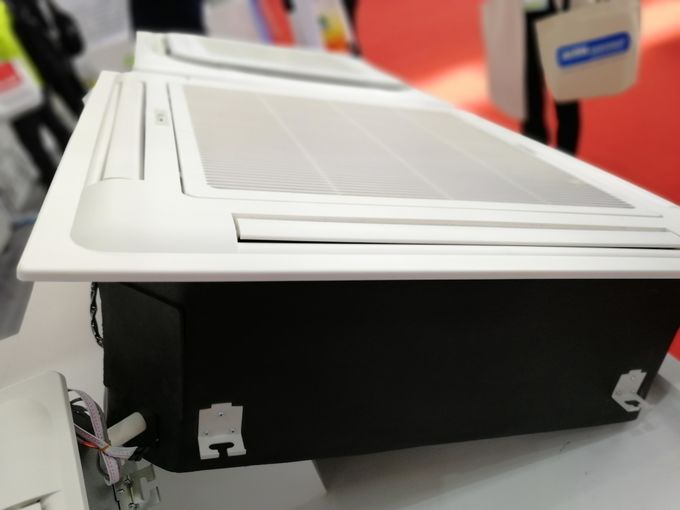

M style Cassette fan coil unit introduction

As we all know Hydronic cassette units are ideal for applications and modernizations with suspended ceilings. Ceiling cassette fan coil units make each served area an independent controlled temperature zone to suit diverse requirements. Such as hotels, offices, restaurant, shopping mall applications,etc.

MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.

After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit. The M style cassette fan coil unit is our core competitiveness which has high stability and comprehensive functions.




Performance Features for M style chilled water Cassette fan coil Units.

  • Fans are statically and dynamically balanced for quiet operation
  • 26 chilled water cooling models from 200-1600CFM to properly match job requirements
  • 4 different panel sizes for selection 650,850,950,1050.
  • 2 pipe or 4 pipe system both available.
  • AC motor and BLDC motor also available.



CE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M style

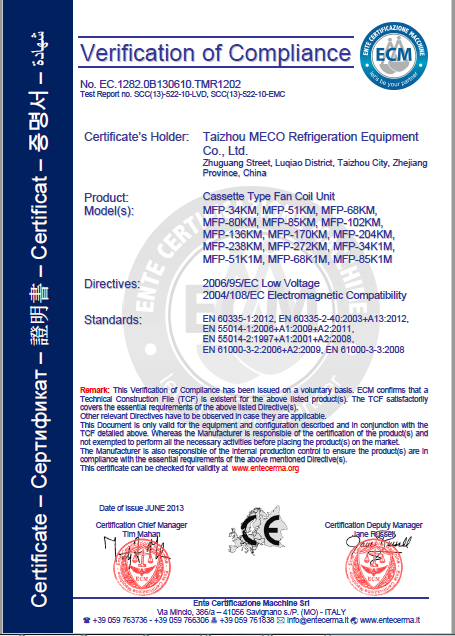

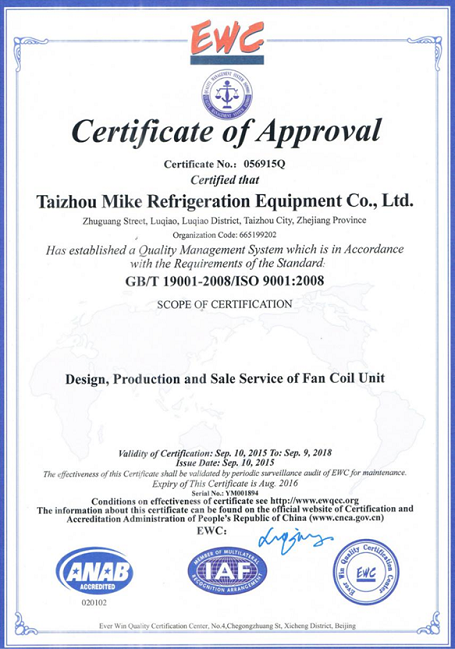

Certifications for MECO cassette fan coil units:

CE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M style CE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M style




Standard Warranty for all cassette fan coil units orders

  • 18 months since delivery date.
  • supply 1% free parts with shipment.
fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller wire controller drain pump water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Field-Installed optional Accessories:

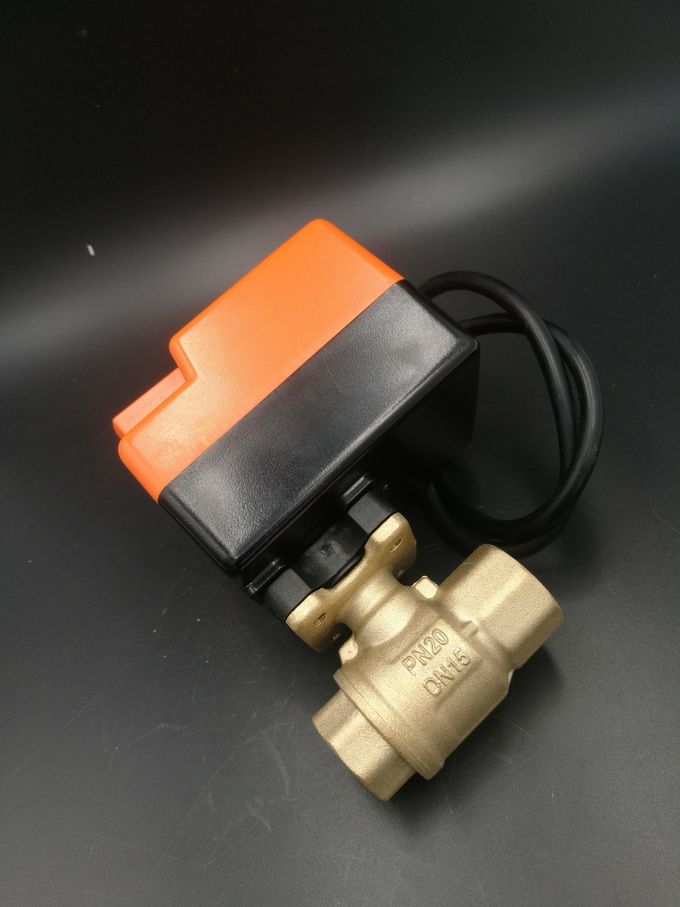

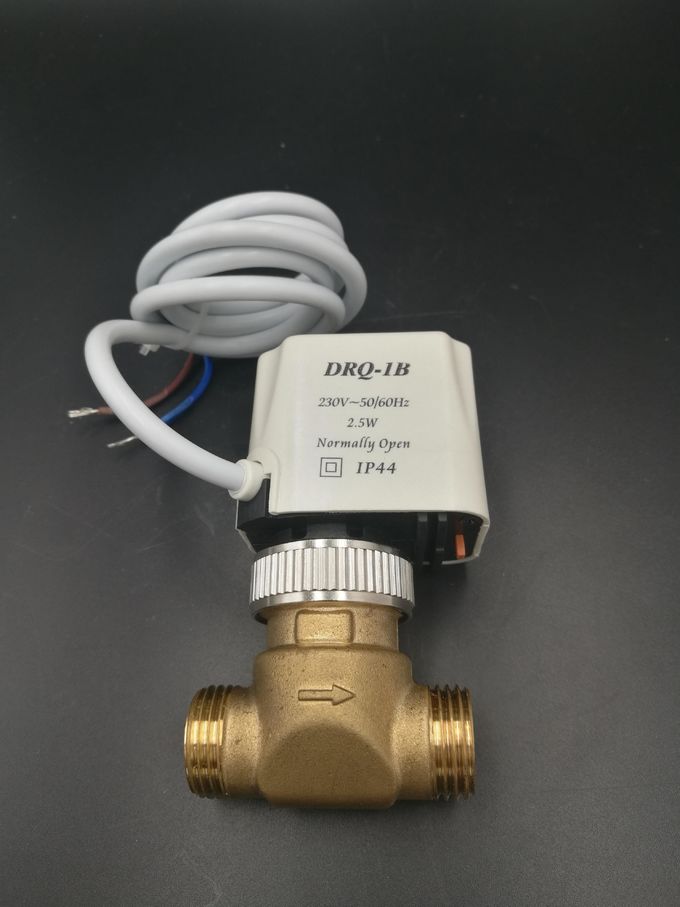

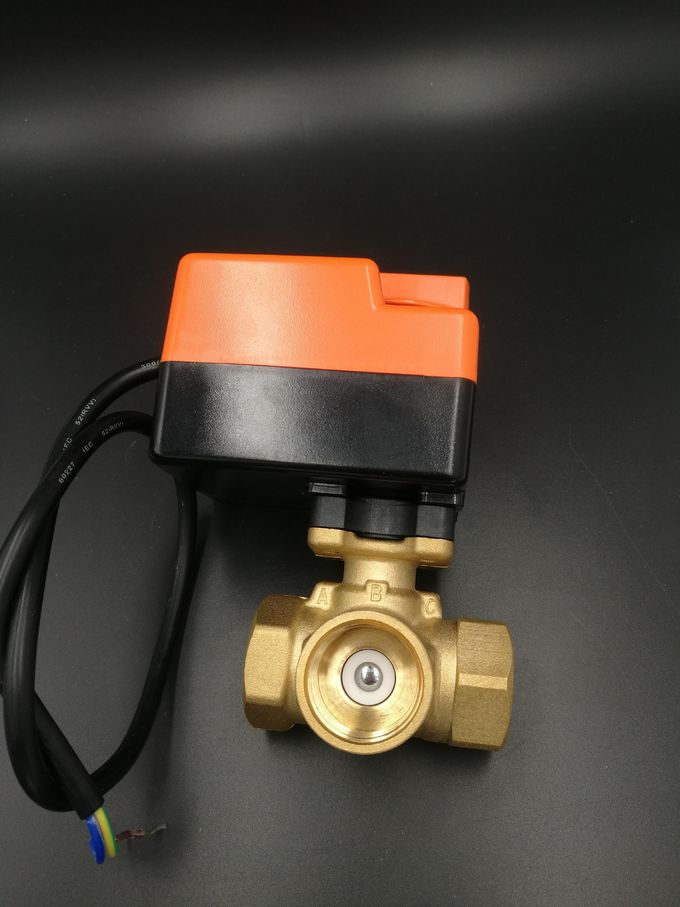

  • 2 & 3 way valves and with the actuators
  • CE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M styleCE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M styleCE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M style

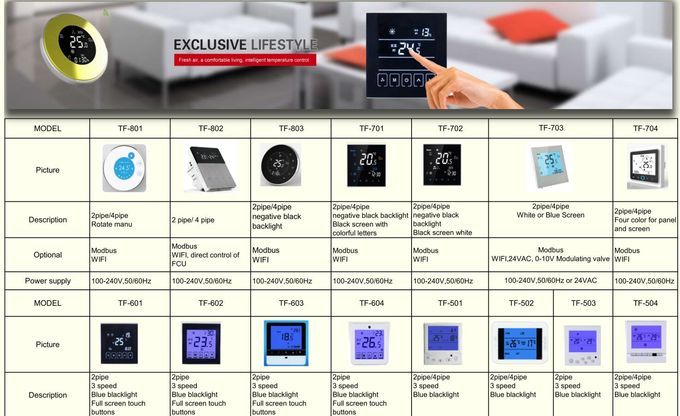

  • Wall Mounted Mechanical or Digital Thermostat
  • Wall Mounted Digital Thermostat with Modbus function
  • Wall Mounted Digital Thermostat with WIFI control function
  • CE certified Hydronic cassette fan coil unit with build in water pump and digital display,  200CFM, M style




FAQ.

Q:Can you make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.



Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
