EKON Motorized Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

Good quality Ceiling Suspended Fan Coil Unit for sales
Good quality Ceiling Suspended Fan Coil Unit for sales
I'm Online Chat Now

EKON Motorized Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

China EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator supplier
EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator supplier EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator supplier EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator supplier EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator supplier

Large Image :  EKON Motorized Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

Product Details:

Place of Origin: CHINA
Brand Name: EKON, MECO or OEM brand
Certification: CE
Model Number: DQF-FA

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Payment Terms: T/T
Contact Now
Detailed Product Description
Model: DQF-FA Type: Damper Actuator
Water Proof: Yes Dust Proof: Yes

EKON motorized fan coil units valve DQF-FA/DQF-LA fan valve actuator/damper actuator



EKON motorized fan coil unit valve consists of on/off type or 3-point type actuator ,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Application for fan coil unit valve
HVAC system, heating system, Water treatment system, Industrial equipment






DQF-FA/DQF-LA fan valve actuator/damper actuator /controls products passed ISO9001.CE



Product introduction

DQF-F/L series motorized ball available for ending fan valve. The thermostat can control motor, make the valve power off/on by motor to make the medium current or disconnected,and make the fan coil bow to control the temperature automatically.



Feature for fan coil unit valve-damper actuator

Waterproof, dustproof function,leakproofness and tightness.

Short power ontime, energy-efficient, the motor has long using life.

Easy to dismantle or install the actuator.

Large close pressure difference, tight closing

Soft valve opening

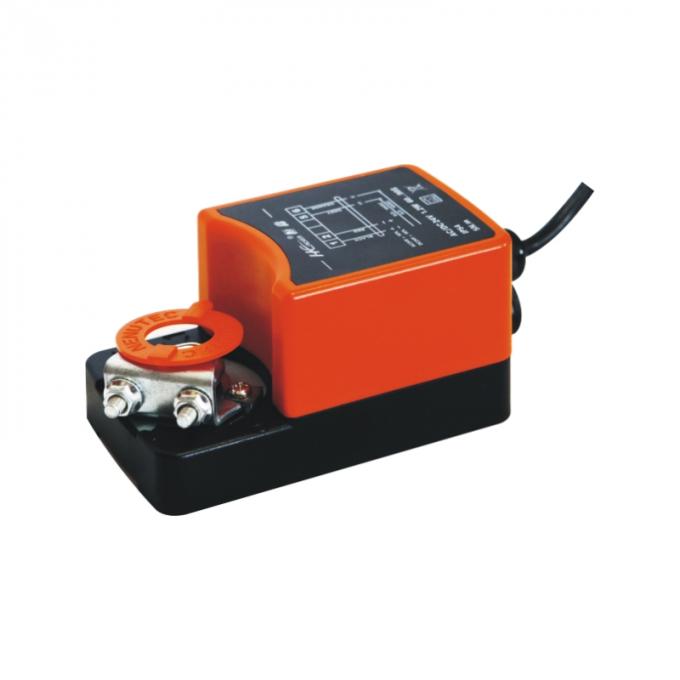

damper actuator model DQF-FA

EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

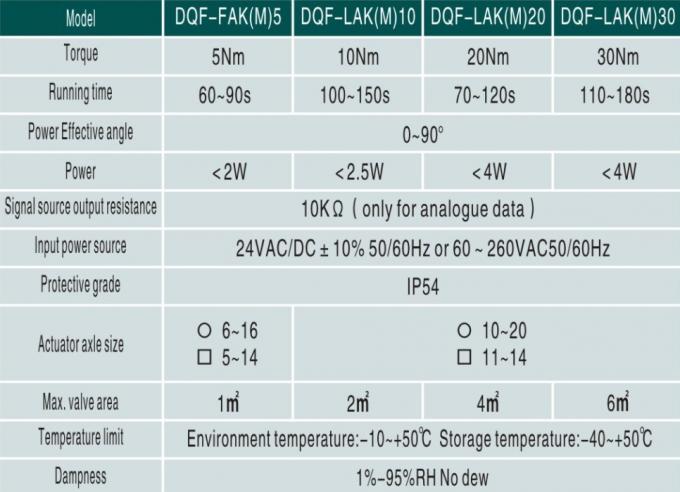

Specifications for damper actuator model DQF-FA

EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

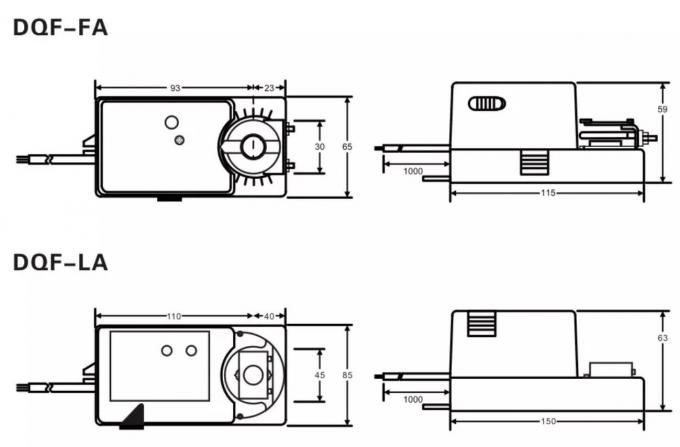

damper actuator model DQF-FA wiring design:

EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

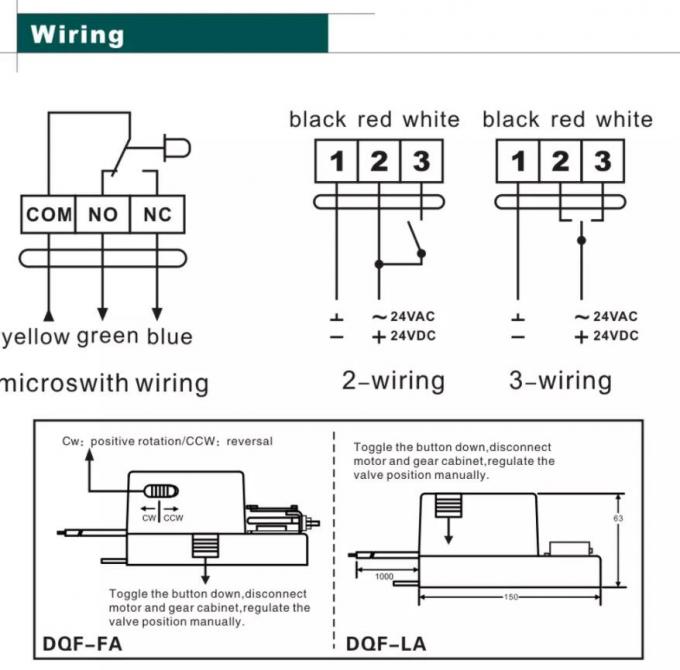

damper actuator model DQF-FA wiring design:

EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator

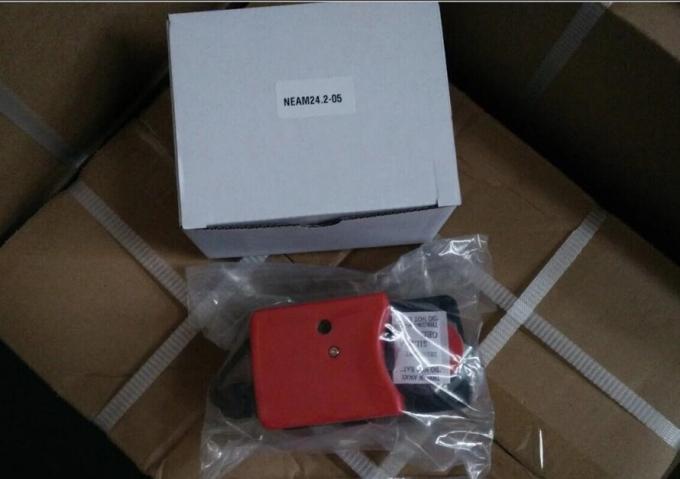

damper actuator model DQF-FA standard packing:



EKON Motorized  Fan Coil Unit Valve DQF-FA/DQF-LA Fan Valve Actuator / Damper Actuator














Certifications for MECO floor standing fan coil units :
600CFM 2 pipe system, high wall fan coil unit , 5.4kw wall mounted fan coil units 1.5TR 1020m3/h600CFM 2 pipe system, high wall fan coil unit , 5.4kw wall mounted fan coil units 1.5TR 1020m3/h


Standard Warranty for MECO floor mounted fan coil units:

18 months whole units warranty since delivery date.

supply 1% free parts with shipment.

fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller
installation kits fan   swing motor drain pipe panel filter

Packing and shipping of floor mounted fan coil units

Normally we use carton packing for our standed exported order water fan coil units.
The carton box printed with our MECO brand and unique color and pattern. OEM designed packing also available.
We also have strong packing as optional, depends on customers needs.
We have plywood box, pallets, or honeycomb box etc.
Our FOB port is NINGBO, China port.


Field-Installed optional Accessories for floor mounted fan coil units water fan coil units:

· 2 & 3 way valves and with the actuators

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function


MECO full range of chilled water hydronic water fan coil untis producing now.
For ceiling suspended fan coil unit water fan coil units, we have Four way ceiling suspended fan coil unit,Round flow eight way ceiling suspended fan coil unit and Single way ceiling suspended fan coil unit;
For vertical type fan coil units, we have ultra thin console fan coil unit, which is only 13cm thickness. And universal type floor and ceiling fan coil unit, one more type is decrative floor mounted or ceiling mounted fan coil units.
As per standard fan coil units, we have ultra thin horizontal ceiling concealed fan coil unit which is only 18cm thickness, with build in water pump, piping installation kits canbe factory fixed. And standard ceiling fan coil units, with 235mm thickness. All these two models are in 12Pa, 30Pa, 50Pa optional types. For high static pressure ducted fan coil units we have from 800CFM to 2400CFM, with 120-150Pa ESP.

Wall mounted fan coil unit or so called wall split fan coil unit, we have from 200CFM to 1000CFM. Biggest capacity is 2.5TR.
There are two options for the build water valve or without build in water valve.

Welcomes your coming inquiry of MECO chilled water hydronic Fan coil units!

Our fan coil units has exported to USA, Canada, Mexico, Venezuela, Brazil, Chile, Austrilia, New Zealand, Indonisia, Philipine, Malaysia,Singapore, India, Sri Lanka, Iran, Iraq, Qatar, UAE, Italy, Spain, Germany, Hungary, UK, Serbia, Romania, Bulgaria, Russia, ETC.

Now we are seeking the partners in below countries for brand distributors or OEM cooperation for our full range of fan coil units and accessories related to Fan coil units:
USA market, Canada market, Mexico Market;
Brazil market, Argentina market, Chile market;
Vietnam market, Malaysia market, Indonisia market;
Iraq market, KSA market, Qatar market;
Italy market, Spain market, Germany market,Uk market.

Wish to hear from you and discuss about the business cooperaiton mutally.

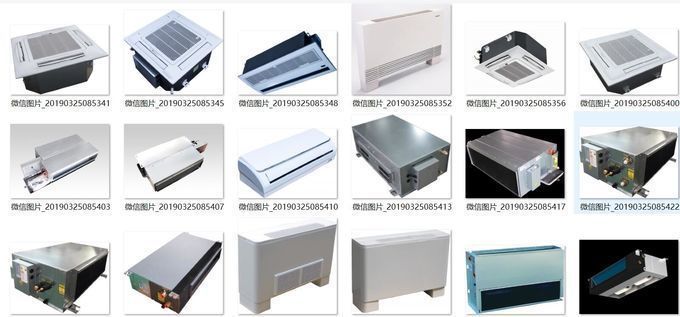

chilled water terminal units,cassette water fan coil units with build in water pump 2pipe system


FAQ.
Q:Can you make OEM brand orders with your water fan coil uits and fan coil unit valve?
A: Yes of course. As a specialized manufacturer and exporter for water fan coil units product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and internationally, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty after shipment of the water fan coil units and fan coil unit valve?
A: We offer 18 months warranty for our water fan coil units products. We offer 1% free spare parts with goods shipped.
Short time reaction and professional technical support is our key attention.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our water fan coil units products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
