Cassette Fan Coil Unit
VR
  • Products Details
Detailed Product Description
Cooling Capacity: 13.2kw Heating Capacity: 13.5kw
Air Flow: 1600CFM Motor Type: AC Motor, BLDC Motor Optional
Pipe: Four Pipe System Water Pump: Build In Water Pump
Electrical Box: Outside/build In Optional Fresh Air Hole: Standard Available
Power Supply: 110/220V 1Ph 50/60Hz Certification: CE, ISO, Rohs
Modbus: Optional Auto Restart: Optional
Finger Protect: Finger Protect Grill Optional Drain Tray: Extra Bigger Drain Tray Optional
High Light:

hydronic fan coil unit

,

chilled water ceiling cassette fan coil unit

Four pipe water fan coil unit, 4-way cassettes FCU Air flow 1600CFM 2720CMH , Cooling capacity 13.2kw



Cassette Fan Coils have been designed to control the distribution of conditioned air by a 4 way louver discharge system. These types of units are normally located in the false ceiling, with only the front panel visible. With the return air centralized adjustable louvers on the perimeter allow for airflow control in heating and cooling modes. The most popular applications are office buildings and shops. Since the installation is located in the ceiling cassettes are the preferred solution when the user wants a discreet heating and cooling solution that allows free floor or wall surfaces.
4-way air flowing water cassette fan coil unit, which can uniform temperature distributions in the room. This kind of product can be used for central air conditioning system in big social spaces like office building, supermarket, restaurant and so on. Thin design unit which can be installed in a limit ceiling (The Min. thickness is only 290mm). This product is with drain pump. The M style cassette fan coil unit is the luxury model in our cassette products. Panasonic DC brushless motor is optional.

Air volume range: 200m³/h ~ 2720m³/h

Cooling capacity range: 1800W ~ 14400W

Heating capacity range: 2700W ~ 21600W



MECO Cassette fan coil units Optional:
1: 4 pipes system
2: External drained part
3: It is can be installed for the Electric heater
4: Easily interfaced with most widely used Mod-Bus and proprietary supervisory system based on Mod-Bus protocol
5: Remote controller is standard and wire controller is optional
6: Water drained pump can be select inside the unit (standard) or outside the unit(optional and easy to do maintain)
7: Water valve can be installed already
8: Grill is optional to prevent from hand injury
9: 1way, 4way, Circulation way air outlet for complete selection
10 Brushless plastic package DC motor&EC motor



Specifications for M style 4-way water cassettes fan coil units: 1. Air flow 1600CFM, 2720CMH
2. Cooling capacity 13.2kw
3. Heating capacty 13.5kw
4. Cassette Panel dimension 1050x1050mm
5. AC motor , BLDC brushless motor optional
6. Power supply 220V-1-50Hz
7. Four pipe/tube system
8. With build in water pump
9. Build in electrical box is optional.
10. Modbus function is optional.

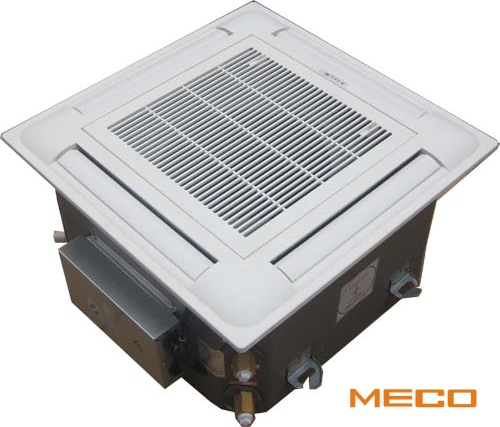

  M style 4-way water cassettes fan coil units 4 pipe system
  Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 0
Model MFP-272KM4-MK4
Air flow -CMH 2720
Air flow-CFM 1600
Cooling capacity -KW 13.2
Heating capacty KW 13.5
Testing condition-Cooling Dry ball 27℃ wetball 19.5℃ 7℃ in 12℃ out
Testing condition-Cooling Dry ball 20℃ 50℃ in 40℃ out
Piping Four pipe/tube system
Power supply 220V-1-50Hz or 110V-1-60Hz
Drain pump Build in type
Panel dimension Cassette panel size 1050x1050mm
Motor type AC motor BLDC brushless optional
Electrical box Build in electrical box is optional.
BMS Modbus Ingrated function is optional.






Different capacities for M style cassette fan coil unit 2 pipe systems:



MODEL Casstte fan coil unit 2 pipe system

air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM-Q1M 380 2000 3100 40
MFP-51KM-Q1M 550 3000 4700 50
MFP-68KM-Q1M 680 3800 5900 58
MFP-80KM-Q1M 780 4200 6500 60
MFP-85KM-Q1M 880 4900 7600 70
MFP-102KM-Q1M 1050 5800 9000 95
MFP-130KM-Q1M 1300 7000 10900 125
MFP-136KM-Q1M 1380 7500 11600 130
MFP-153KM-Q1M 1550 8100 12200 145
MFP-170KM-Q1M 1750 9800 15200 160
MFP-204KM-Q1M 2050 11000 17100 190
MFP-238KM-Q1M 2200 12000 18600 210
MFP-272KM-Q1M 2720 15000 24000 230





Different capacities capacities for M style cassette fan coil unit 4 pipe systems:

MODEL Casstte fan coil unit 4 pipe system air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM4-Q1MM1 360 1950 1950 40
MFP-51KM4-Q1MM1 520 2950 3000 50
MFP-68KM4-Q1MM1 650 3700 3750 58
MFP-80KM4-Q1MM1 740 4100 4150 60
MFP-85KM4-Q1MM2 840 4800 4850 70
MFP-102KM4-Q1MM2 1000 5700 5750 95
MFP-130KM4-Q1MM2 1240 6850 6950 125
MFP-136KM4-Q1MM3 1320 7350 7400 130
MFP-153KM4-Q1MM3 1480 7940 7780 145
MFP-170KM4-Q1MM3 1660 9600 9700 160
MFP-204KM4-Q1MM3 1950 10800 10900 190
MFP-238KM4-Q1MM3 2090 11750 11850 210
MFP-272KM4-Q1MM4 2090 13200 13500 210





Testing condition:

2-tube system 4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.



Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 1




Certifications for MECO cassette fan coil units:

     Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 2     Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 3




Standard Warranty for all cassette fan coil units orders

  • 18 months since delivery date.
  • supply 1% free parts with shipment.
fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller wire controller drain pump water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Field-Installed optional Accessories:

  • 2 & 3 way valves and with the actuators
  • Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 4Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 5Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 6
  • Wall Mounted Mechanical or Digital Thermostat
  • Wall Mounted Digital Thermostat with Modbus function
  • Wall Mounted Digital Thermostat with WIFI control function
  • Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 7

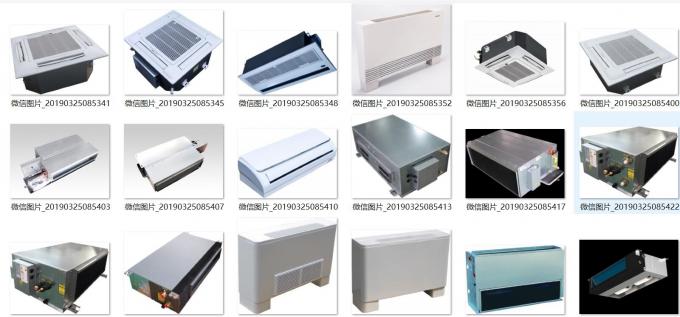

Full range of water fan coil untis we are producing now:

Air Conditioning Fan Coil Unit , 4 Pipe Fan Coil Unit 1600CFM 2720CMH 13.2kw 8




FAQ.

Q:Can you  make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.



Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
