Cassette Fan Coil Unit
VR
  • Products Details
Detailed Product Description
Cooling Capacity: 4.9kw Heating Capacity: 7.6kw
Air Flow: 500CFM Motor Type: BLDC Motor
Display Type: Digital Display Water Pump: Build In Water Pump
Electrical Box: Outside/build In Optional Fresh Air Hole: Standard Available
Power Supply: 110/220V 1Ph 50/60Hz Certification: CE, ISO, Rohs
Modbus: Optional Auto Restart: Optional
Finger Protect: Finger Protect Grill Optional Drain Tray: Extra Bigger Drain Tray Optional
High Light:

hydronic fan coil unit

,

chilled water ceiling cassette fan coil unit

Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit



Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 0



Specifications for brushless DC motor cassette fan coil model DC-MFP-85KM-MK1:

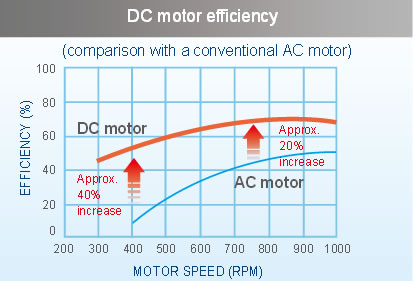

    Brushless BLDC motor

    Lower noise level and higher efficiency.



1. Air flow 500CFM,850CMH

2. Cooling capacity 4900W

3. Heating capacty 7600W

4. Two pipe system

5. With build in water pump

6. Power supply 220V-1-50Hz

7.  Compact Panel size 650x650mm

8. Modbus function is optional

9. Finger proteciton grill is optional

10. Auto restart is optional








Full ranges of capacities we have for M style chilled water cassette fan coil unit 2 pipe systems:

MODEL Casstte fan coil unit 4 pipe system air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM-Q1M 380 2000 3100 40
MFP-51KM-Q1M 550 3000 4700 50
MFP-68KM-Q1M 680 3800 5900 58
MFP-80KM-Q1M 780 4200 6500 60
MFP-85KM-Q1M 880 4900 7600 70
MFP-102KM-Q1M 1050 5800 9000 95
MFP-130KM-Q1M 1300 7000 10900 125
MFP-136KM-Q1M 1380 7500 11600 130
MFP-153KM-Q1M 1550 8100 12200 145
MFP-170KM-Q1M 1750 9800 15200 160
MFP-204KM-Q1M 2050 11000 17100 190
MFP-238KM-Q1M 2200 12000 18600 210
MFP-272KM-Q1M 2720 15000 24000 230
PERFORMANCE OF "M" STYLE CASSETTE TYPE FAN COIL(4-WAY,2TUBE)---DRAINED BY WATER PUMP
model(2 tube system) MFP-34KM-MK1 MFP-51KM-MK1 MFP-68KM-MK1 MFP-85KM-MK2 MFP-102KM-MK2 MFP-136KM-MK3 MFP-153KM-MK3 MFP-170KM-MK3 MFP-204KM-MK3 MFP-238KM-MK3 MFP-272KM-MK4
power supply 220V,50Hz,1Ph
air volume H m3/h 380 550 680 880 1050 1380 1550 1750 2050 2200 2720
M 300 440 540 700 840 1100 1240 1400 1640 1760 2040
L 230 330 410 530 630 830 930 1050 1230 1320 1360
static pressure Pa 0 0 0 0 0     0 0 0 0
cooling capacity TH H W 2000 3000 3800 4900 5800 7500 8100 9800 11000 12000 15000
BTU/h 6824 10236 12966 16719 19790 25590 27637 33438 37532 40944 51180
SH W 1400 2200 2850 3500 4250 5500 5880 7150 8250 9100 11175
BTU/h 4777 7506 9724 11942 14501 18766 20060 24396 28149 31049 38129
TH M W 1700 2550 3250 4150 4950 6400 6650 8350 9350 10200 12450
SH W 1150 1800 2350 2850 3500 4550 4700 5950 6850 7650 9560
TH L W 1400 2050 2600 3400 4000 5200 5420 6750 7600 8300 10300
SH W 950 1400 1850 2300 2800 3600 3850 4700 5450 6000 8400
heating capacity H W 3100 4700 5900 7600 9000 11600 12200 15200 17100 18600 24000
M W 2650 4000 5000 6450 7650 9850 10300 12900 14550 15800 19900
L W 2100 3150 3950 5100 6050 7750 8140 10200 11450 12450 15200
noise H 0Pa dB(A) 39 42 44 42 46 46 48 47 50 51 53
power input H 0Pa W 40 50 58 70 95 130 145 160 190 210 230
waterflow volume m3/h 0.34 0.51 0.65 0.83 0.99 1.28 1.38 1.67 1.87 2.04 2.55
water pressure dropping kPa 11 13 22 18 25 23 23 28 33 42 45
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26     ¢26 ¢26 ¢26 ¢26
net dimension unit L×W×H mm 592*592*242 750*750*242 840*840*242 840*840*292 946*946*292
panel 650*650*40 850*850*40 950*950*40 950*950*40 1050*1050*40
net weight unit kg 17 18 18 22 23 25 26 27 27 32
  panel   2.2 4.2 5 6



Full ranges of capacities we have for M style chilled water cassette fan coil unit 4 pipe systems:

MODEL Casstte fan coil unit 4 pipe system air volume COOLING CAPACITY HEATING CAPACITY POWER INPUT
m3/h W W W
MFP-34KM4-Q1MM1 360 1950 1950 40
MFP-51KM4-Q1MM1 520 2950 3000 50
MFP-68KM4-Q1MM1 650 3700 3750 58
MFP-80KM4-Q1MM1 740 4100 4150 60
MFP-85KM4-Q1MM2 840 4800 4850 70
MFP-102KM4-Q1MM2 1000 5700 5750 95
MFP-130KM4-Q1MM2 1240 6850 6950 125
MFP-136KM4-Q1MM3 1320 7350 7400 130
MFP-153KM4-Q1MM3 1480 7940 7780 145
MFP-170KM4-Q1MM3 1660 9600 9700 160
MFP-204KM4-Q1MM3 1950 10800 10900 190
MFP-238KM4-Q1MM3 2090 11750 11850 210
MFP-272KM4-Q1MM4 2090 13200 13500 210
PERFORMANCE OF "M" STYLE CASSETTE TYPE FAN COIL(4-WAY,4TUBE)---DRAINED BY WATER PUMP
model(2 tube system) MFP-34KM4-MK1 MFP-51KM4-MK1 MFP-68KM4-MK1 MFP-80KM4-MK1 MFP-85KM4-MK2 MFP-102KM4-MK2 MFP-130KM4-MK2 MFP-136KM4-MK3 MFP-153KM4-MK3 MFP-170KM4-MK3 MFP-204KM4-MK3 MFP-238KM4-MK3 MFP-272KM4-MK4
power supply 220V,50Hz,1Ph
air volume H m3/h 360 520 650 740 840 1000 1240 1320 1480 1660 1950 2090 2720
M 290 420 510 590 670 800 990 1050 1180 1330 1560 1670 2040
L 220 310 390 450 500 600 740 790 885 1000 1170 1250 1360
static pressure Pa 0 0 0 0 0 0 0 0 0 0 0 0 0
cooling capacity TH H W 1950 2950 3700 4100 4800 5700 6850 7350 7940 9600 10800 11750 13200
BTU/h 6700 10050 12700 14050 16400 19400 23400 25100 27100 32750 36800 40150 45040
SH W 1350 2150 2800 3250 3450 4150 5150 5400 5773 7000 8100 8900 10000
BTU/h 4700 7350 9550 11050 11700 14200 17550 18400 19650 23900 27600 30450 34120
TH M W 1650 2500 3200 3500 4050 4850 5850 6250 6490 8200 9150 10000 11000
SH W 1150 1750 2300 2600 2800 3450 4250 4450 4600 5850 6700 7500 37532
TH L W 1350 2000 2550 2850 3350 3900 4750 5100 5315 6600 7450 8150 9100
SH W 950 1350 1800 2050 2250 2750 3400 3550 3800 4600 5350 5900 6600
heating capacity H W 1950 3000 3750 4150 4850 5750 6950 7400 7780 9700 10900 11850 13500
M W 1700 2550 3200 3550 4100 4850 5900 6250 6535 8200 9250 10050 11200
L W 1350 2000 2500 2750 3250 3850 4650 4950 5200 6500 7300 7950 8750
noise H 0Pa dB(A) 39 42 44 46 42 46 48 46 48 47 50 51 53
power input H 0Pa W 40 50 58 60 70 95 125 130 145 160 190 210 230
waterflow volume Cooling m3/h 0.33 0.5 0.64 0.71 0.81 0.97 1.17 1.25 1.4 1.64 1.83 2 2.2
Heating 0.22 0.33 0.42 0.46 0.54 0.64 0.77 0.82 0.86 1.08 1.21 1.32 1.5
water pressure dropping Cooling kPa 11 13 22 25 18 25 30 23 23 28 33 42 ZG3/4"
Heating 7 8 13 14 11 15 21 15 15 19 23 26 ZG3/4"
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
dimension of water drain pipe mm ¢26 ¢26 ¢26 ¢26 ¢26 ¢26 ¢26     ¢26 ¢26 ¢26 ¢26
net dimension unit L×W×H mm 592*592*242   750*750*242 840*840*242 840*840*292 946*946*292
panel 650*650*40   850*850*40 950*950*40 950*950*40 1050*1050*40
net weight unit kg 19 20 20 20.5 24.5 25.5 25.5 27.5 29.5 29.5 30 33
panel   2.2 4.2 5 6



Testing condition:

2-tube system 4-tube system

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12℃

Cooling

Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC

Entering/out water temperature: 7ºC/ 12ºC

Heating

Entering air temperature: 20ºC

Entering water temperature: 60ºC, Same water flow rate as for the cooling

Heating

Entering air temperature: 20ºC

Entering/out water temperature: 60ºC/ 50ºC

Notes:

1. Both AC or BLDC motor available.

2. Both 50HZ or 60HZ power supplies available.


M style Cassette fan coil unit introduction

As we all know Hydronic cassette units are ideal for applications and modernizations with suspended ceilings. Ceiling cassette fan coil units make each served area an independent controlled temperature zone to suit diverse requirements. Such as hotels, offices, restaurant, shopping mall applications,etc.

MECO start to produce the first cassette fan coil unit in 2001, and Cassette fan coil unit always a hard point for us.

After nearly 20 years’ experience accumulation, we have completely models of M style cassette fan coil unit and BLDC motor type cassette fan coil unit. The M style cassette fan coil unit is our core competitiveness which has high stability and comprehensive functions.



1.Multi-direction air supply,ensure application area temperature is more uniform.

2.Ultra-thin unit body,unit body thinnest only 290mm.

3.Easy to install,can save installation cost.

4.Flexible control mode,both remote control and lining control(lining control is optional)

5.Automatic swing wind

6.Using large diameter vortex centrifugal fan, ultra quiet operation

7.High lift condensate pump design(1200mm), condensation water pipe layout is more flexible and convenient

8.Water level switch protection, put an end to leakage hidden danger
9.Outdoor fresh air can be introduced to improve indoor air quality.
10.The auxiliary air outlet can be arranged to send some air to the other parts, thereby improving the indoor temperature and the uniformity of the airflow field.
11.Optional anion generator, fresh indoor air.Can manually remove the remaining water in the water tray.
13.Gratings is potional to protect hands.
14."C" type heat exchanger, hydrophilic aluminum foil fin.


Performance Features for M style chilled water Cassette fan coil Units.

  • Fans are statically and dynamically balanced for quiet operation
  • 26 chilled water cooling models from 200-1600CFM to properly match job requirements
  • 4 different panel sizes for selection 650,850,950,1050.
  • 2 pipe or 4 pipe system both available.
  • AC motor and BLDC motor also available.



Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 1




Certifications for MECO cassette fan coil units:

Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 2 Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 3




Standard Warranty for all cassette fan coil units orders

  • 18 months since delivery date.
  • supply 1% free parts with shipment.
fan motor P.C.B reciever Board sensor

trans

former

fan motor capacitor remote controller wire controller drain pump water level switch fan drain tray swing motor drain pipe panel filter corner board of panel

Field-Installed optional Accessories:

  • 2 & 3 way valves and with the actuators
  • Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 4Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 5Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 6
  • Wall Mounted Mechanical or Digital Thermostat
  • Wall Mounted Digital Thermostat with Modbus function
  • Wall Mounted Digital Thermostat with WIFI control function
  • Brushless DC motor Four way cassette fan coil unit , with build in electrical box, digital display, water fan coil unit 7




FAQ.

Q:Can you  make OEM brand orders water fan coil unit?

A: Yes of course. As a specialized manufacturer and exporter for fan coil units in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.



Q: How long is your warranty for your fan coil unit?

A: We offer 18 months warranty for our fan coil units products. We offer 1% free repair parts and professional technical support.



Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?

A: Yes, Most of our fan coil unit products have 4 pipe system as optional.



Q: Do you have selection software for your Fan coil unit?

A: Not yet now. But we can select the water fan coil units for you based on your given selection request.
