Detailed Product Description
Model Number: MFP-34WA Type: Ceiling Conceal Ducted
Rated Cooling Capacity: 1.8KW Rated Heating Capacity: 2.7KW
Air Volume: 340 M3/h Size: 755 X 482 X 235
High Light:

electric fan coil unit

,

hot water fan coil unit

MECO Ceiling concealed duct fan coil unit with MOD BUS thermostat-340CFM (2-tube system)



Product introduction of ceiling conceal ducted fan coil unit.
MECO duct fan coil unit is developed by long time producing and selling experience. The ceiling conceal duct fan coil unit can match different kind of air condition systems. MECO keep using high quality accessory to make high quality products. High quality parts, long working life and very flexible for installation is the three main characteristics of MECO’s ceiling conceal ducted type fan coil unit.




Products specification of ceiling conceal ducted infan coil unit as below


MODELAIR VOLUMECOOLING CAPACITYHEATING CAPACITY
m3/hCFMWW
MFP-34WA-B34020021503350


Optional functions for MFP-34WA-B ceiling concealed duct FCU:


optionals
mod-bus functionelectric heater2 valve or 3 valvethermostat





Products Feature and details

1. High quantity of Heat exchanger
Our product is made of high-quality purple copper, with high diathermanous efficiency, especially tenacity and rigidity characteristic to bear high hydraulic pressure, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficieny heat exchange area, smooth airflow and high-efficient heat exchange.

2. Best fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.

3. High quality Water collection tray,
Adopt high class panel, with plastic sprayed on the surface, therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique, there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, aster the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.

4. Our product use the symmetrical design so that the direction of pipes can be changed according to the actual needs, it makes installation uncomplicate and convenient.

MECO concealed fan coil units, this series of fan coil units are designed to suit most ceiling concealed installations. Built-in automatic high-pressure condensate draining pump can pump out water up to 750mm high.




Installing dimension

model(2 tube system)MFP-34WA
dimensionwithout air return boxmm(L*W*H)755*462*235
air return from bottom755*482*251
air return from side755*501*235
weightkg15





Testing condition:
2-tube system
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling



All equipment wiring complies with CE requirementsReliability Features
· Base units are CE certified for EU standards
· All units with auto-restart functions.

Maintenance Features

· Reusable wire framed filters can be vacuum cleaned



Certifications:
Ceiling Conceal Duct Type Fan Coil Unit , 2 Pipe Fan Coil Unit 200cfm 1.8kw,0.5tr 0Ceiling Conceal Duct Type Fan Coil Unit , 2 Pipe Fan Coil Unit 200cfm 1.8kw,0.5tr 1





Standard Warranty

18 months since delivery date.

supply 1% free parts with shipment.

fan motorP.C.Breciever Boardsensor

trans

former

fan motor capacitorremote controllerwire controller
water level switchfandrain trayswing motordrain pipepanelfiltercorner board of panel


Ceiling Conceal Duct Type Fan Coil Unit , 2 Pipe Fan Coil Unit 200cfm 1.8kw,0.5tr 2Ceiling Conceal Duct Type Fan Coil Unit , 2 Pipe Fan Coil Unit 200cfm 1.8kw,0.5tr 3Ceiling Conceal Duct Type Fan Coil Unit , 2 Pipe Fan Coil Unit 200cfm 1.8kw,0.5tr 4
Ceiling Conceal Duct Type Fan Coil Unit , 2 Pipe Fan Coil Unit 200cfm 1.8kw,0.5tr 5



Field-Installed optional Accessories:

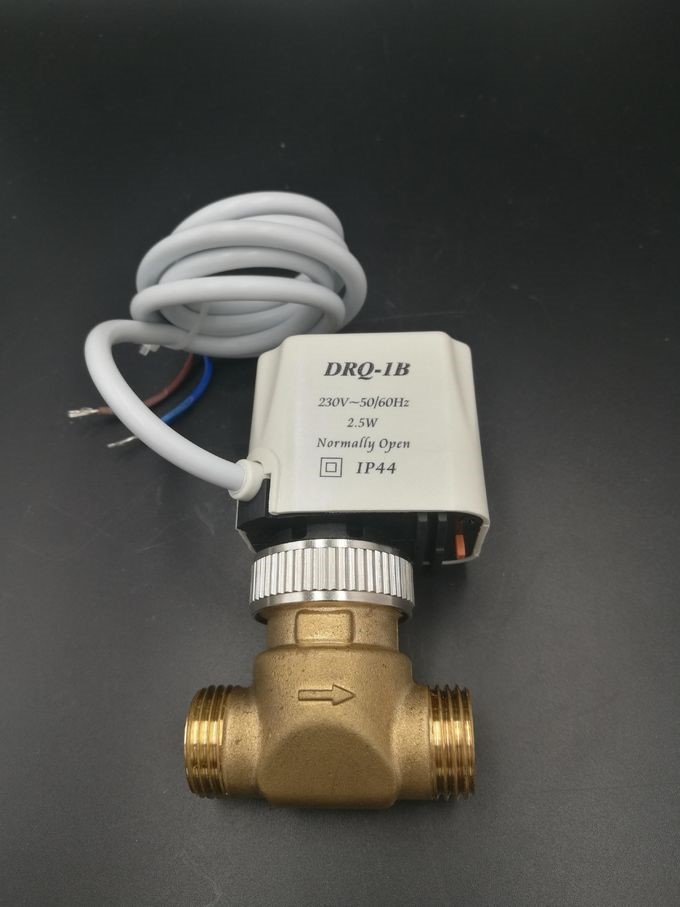

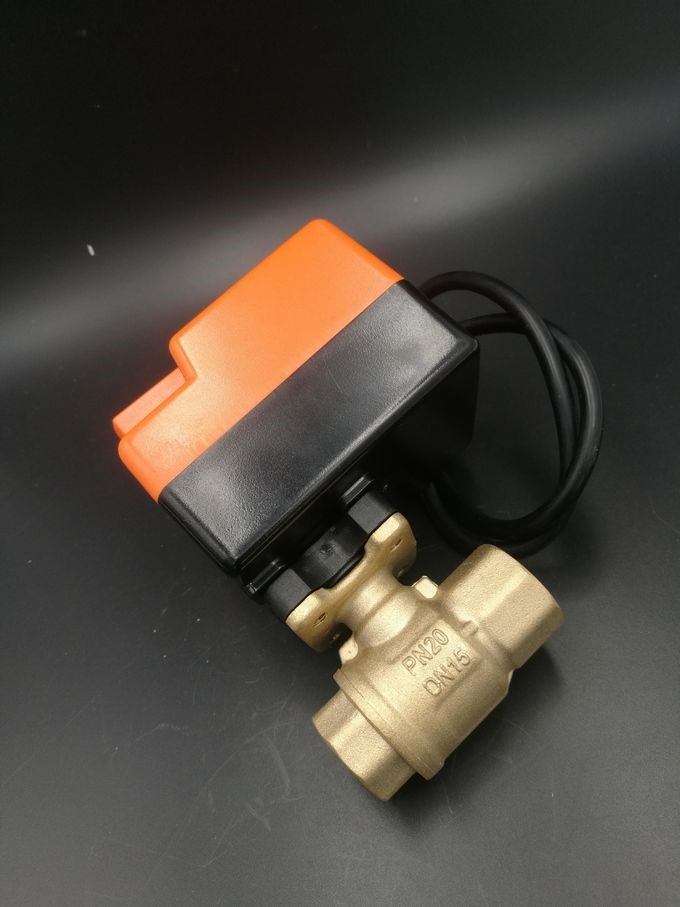

· 2 & 3 way valves and with the actuators

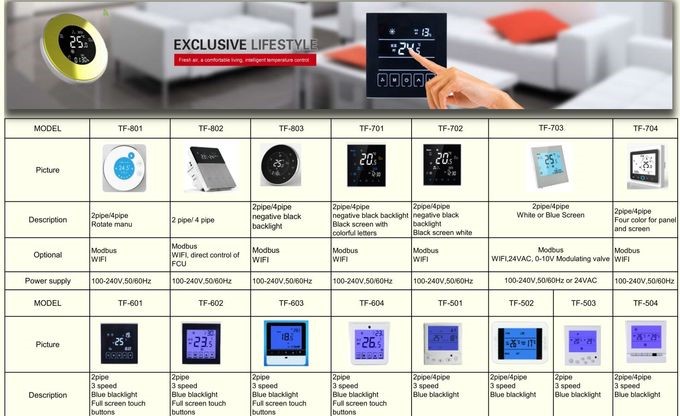

· Wall Mounted Mechanical or Digital Thermostat
· Wall Mounted Digital Thermostat with Modbus function
· Wall Mounted Digital Thermostat with WIFI control function




FAQ.
Q:Can you make OEM brand orders?
A: Yes of course. As a specialized manufacturer and exporter for this product in China, we sincerely hope to establish business relations with your esteemed corporation. Now we do OEM/ODM for a lot of famous brands in China and other countries, such as YORK, CIAC, KingAir, QingHuaTongFang,TCL,AUX,CHIGO,LS,etc.

Q: How long is your warranty?
A: We offer 18 months warranty for our products. We offer 1% free repair parts and professional technical support.

Q: Our hotel want to choose the fan coil unit which have 4 pipe system, do you have this one?
A: Yes, Most of our products have 4 pipe system as optional.

Q: Do you have selection software for your FCU?
A: Not yet now. But we can select the units for you based on your given selection request.
